Assign Symbols to Layers
If you have at least one layer in a display, you can assign symbols to it.

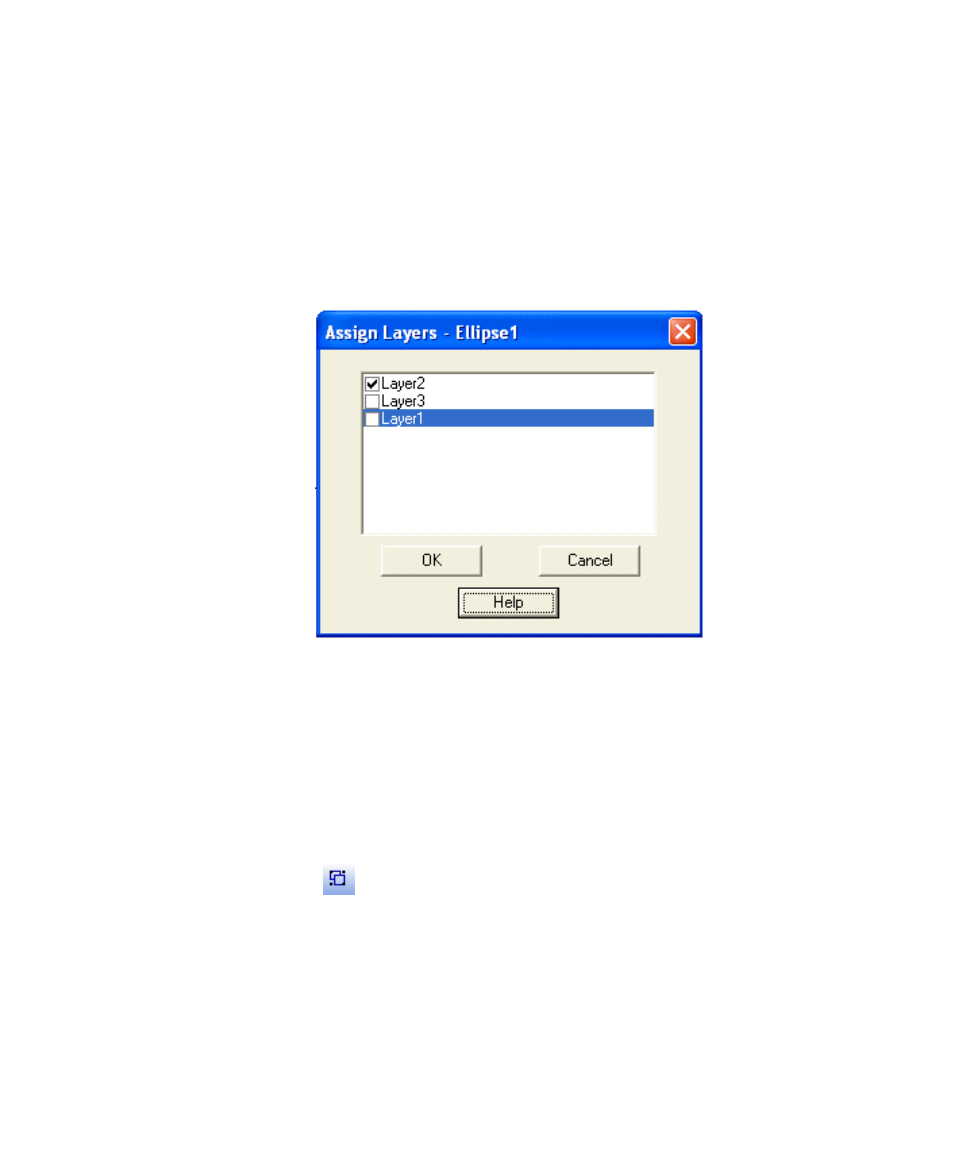

1. Select a symbol, right-click, and select Assign Layers. The Assign
Layers dialog box appears and displays all of your existing layers.
2. Select or clear the check box next to a layer name to add or remove the
selected symbol from a layer. If a layer name is grayed out, the layer is
locked and you cannot add or remove symbols. You may add the same
symbol to more than one layer.
3. Click OK.
Layers and Composite Symbols
To link symbols and create composite symbols click Arrange > Group, or
click on the Layout toolbar. The symbols may be on different layers
when they are grouped.
 Assign a composite symbol to any layer(s) regardless of its component
symbols.
