66 Commissioning Your Ultra3000 Drive
Use this figure to locate the front panel connections on the
Ultra3000-SE 230V drives (500W, 1 kW, and 2 kW).

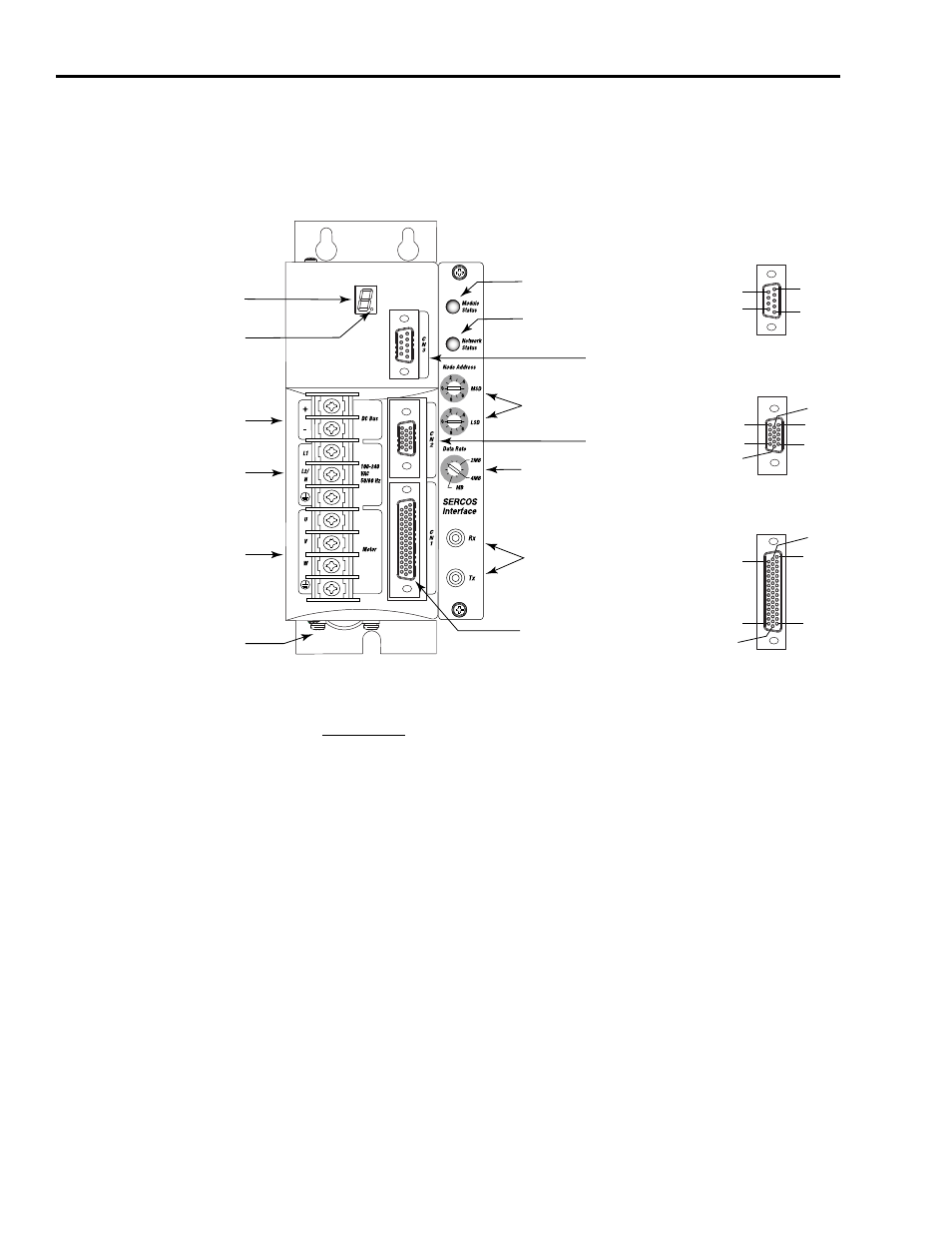

Front Panel Connections for 2098-DSD-005-SE, 2098-DSD-010-SE, and
2098-DSD-020-SE Drives
For CN1, CN2, and CN3 connector pin-out information, refer to the
Ultra3000 Digital Servo Drives Installation Manual, publication
2098-IN003.
Pin 11
Pin 6
Pin 15
Pin 1
Pin 10
Pin 5
Pin 30
Pin 44
Pin 1
Pin 15
Pin 16
Pin 31
Pin 6
Pin 9
Pin 1
Pin 5
8
CN1 44-pin
User I/O
Connector
CN2 15-pin
Motor Feedback
Connector
CN3 9-pin
Serial Port
Connector
Logic Power Status Indicator
Seven-segment
Status Indicator
DC Bus Connections for
Active Shunt Resistor Kit
AC Input Power
Connections
Motor Power
Connections
Module
Status Indicator
Network
Status Indicator
Node Address
Switches
Data Rate
Switch
SERCOS interface
Receive (Rx) and
Transmit (Tx)
Connectors
Motor Power
Cable Shield Clamp
9-pin CN3
Serial Connector
15-pin CN2
Feedback Connector
44-pin CN1
I/O Connector
