Commissioning Your Ultra3000 Drive
45

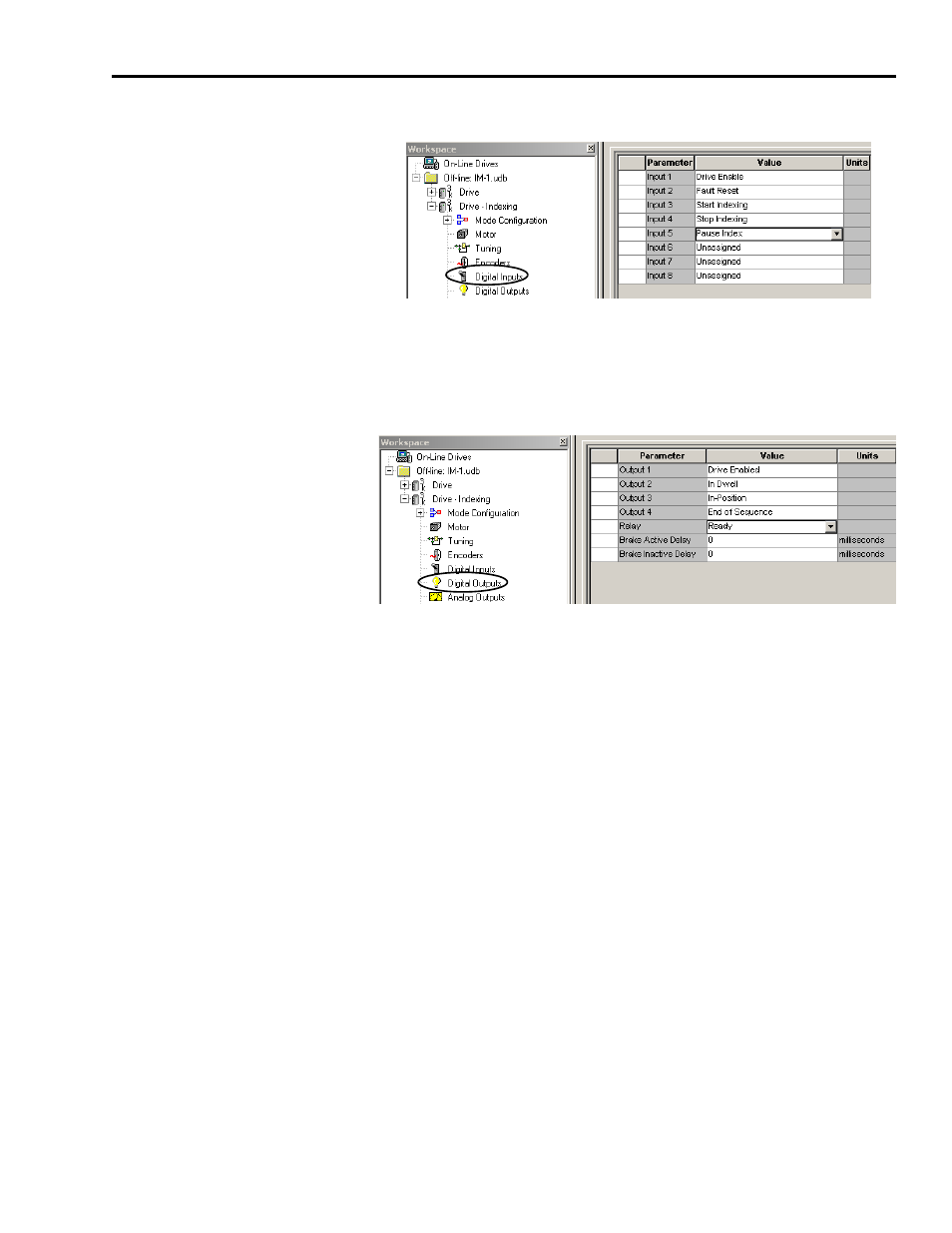

10. Use the pull-down menu to change the input values.
11. Close the Digital Inputs dialog.
12. Double-click the Digital Outputs branch.
13. Use the pull-down menu to change the output values.
14. Close the Digital Outputs dialog.
