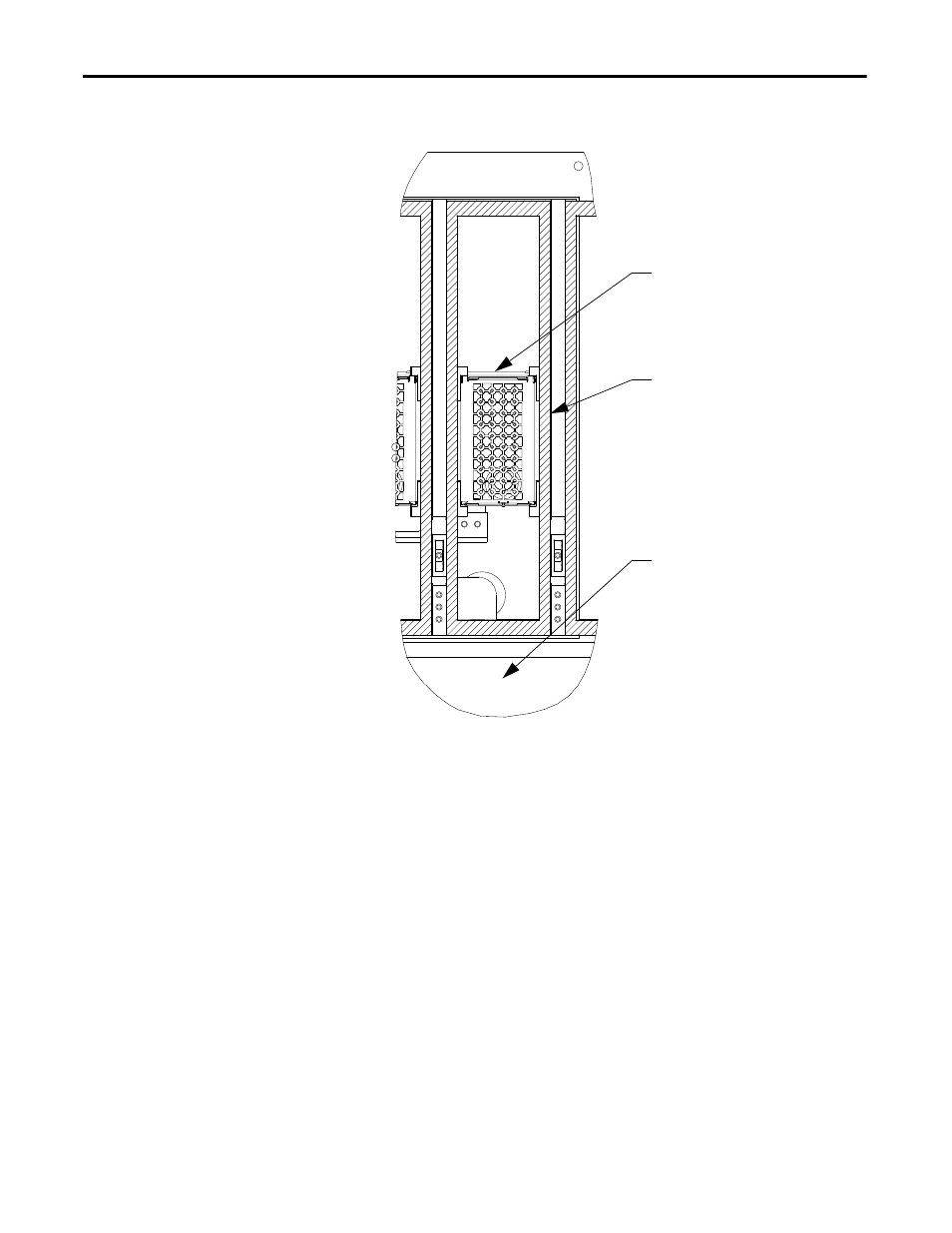

Figure 88 - PowerCage gasket location (heat pipe model)
Replacing PowerCage Gaskets
The gaskets do not normally require replacement, but in the event that they
become damaged, you may have to replace them.
Remove Old Gasket Material
Remove as much material as possible by hand to leave an even, bondable surface.
Scrape off as much material as possible with a sharp knife, but avoid scoring the
PowerCage. Clean away any loose pieces of gasket before proceeding with the
gasket installation.
Resistors
Gasket
PowerCage Housing
