Ups option – Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control User Manual
Page 134
134
Rockwell Automation Publication 7000-UM202B-EN-P - June 2014
Chapter 3
Component Definition and Maintenance

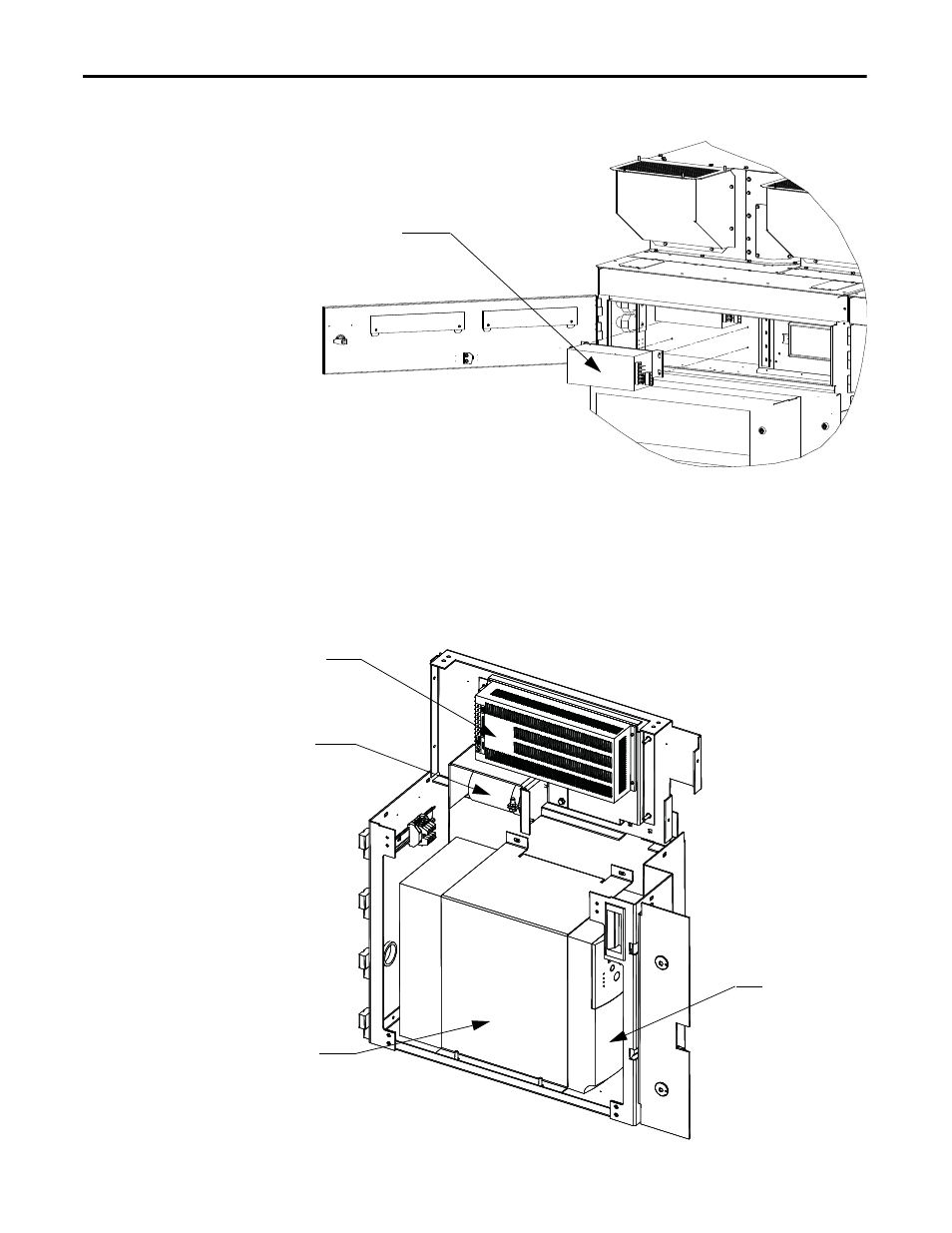

Figure 122 - Replacing AC/DC power supply on LV panel (heat pipe model)
UPS Option
The PowerFlex 7000 “B” Frame drive has the option for internal and external
UPS power to keep the control power active within the drive in the event of a
control power loss. The following diagram shows the current configuration of the
internal UPS option.
Figure 123 - 300W AC/DC power supply (heat sink)
Power supply is secured by a
mounting bracket held by four M6
taptites to LV mounting plate
300 W AC/DC
Power Supply
Hold-up Capacitor
Holding Bracket
UPS
