Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control User Manual
Page 102
102
Rockwell Automation Publication 7000-UM202B-EN-P - June 2014
Chapter 3
Component Definition and Maintenance

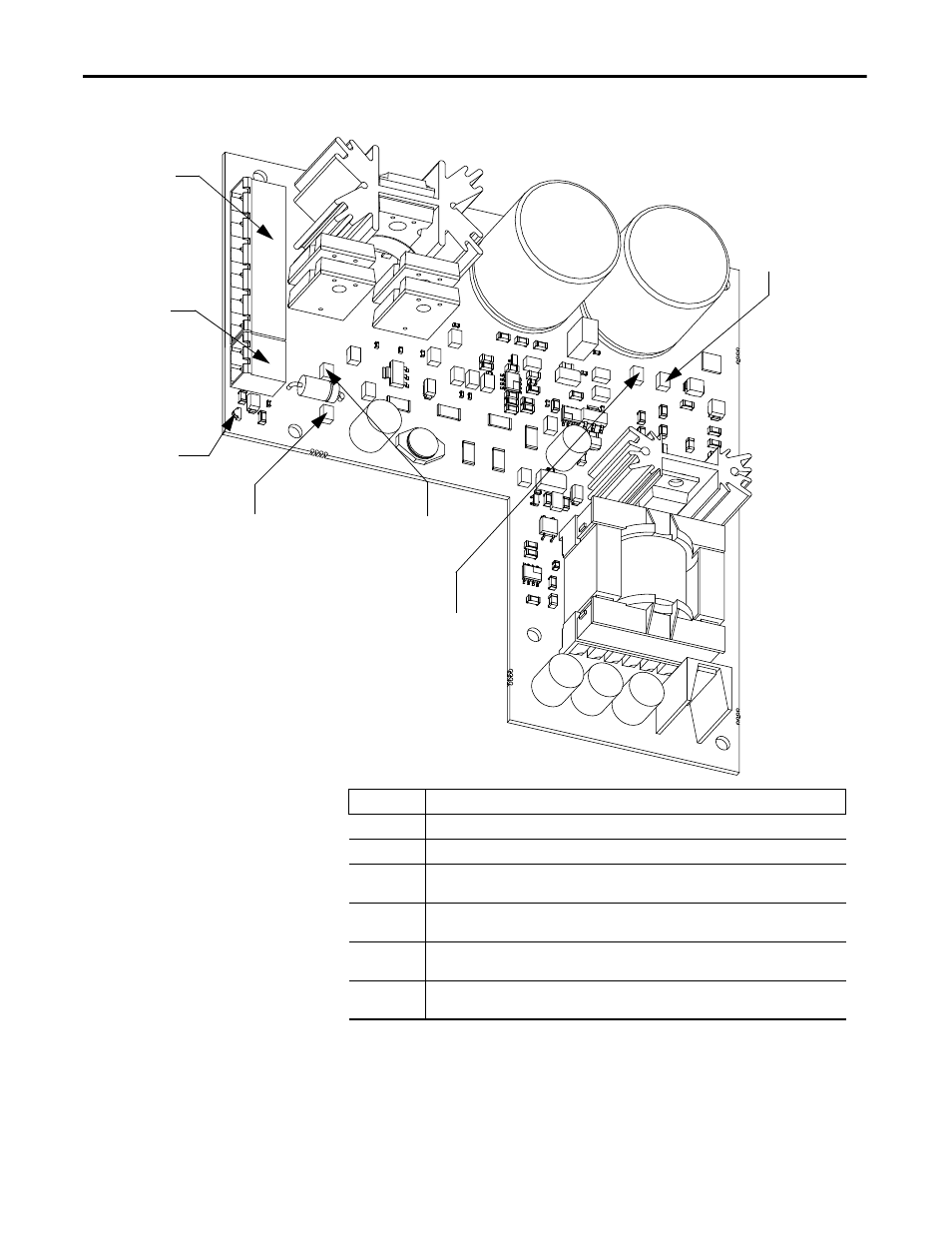

Figure 91 - SPS Board Test Points
TP6-300V
DC common
TP4-300V DC
TP14 - 20V DC COM
TP15 - 20V DC
DS1-20V DC
Good LED
J1 Snubber and
Test Power Harness
J2-20V DC
Output Power
to SGCT and
TFB Board
Terminal
Connections
J1 – 1
Connection to the SGCT snubber capacitor at CS-2 location
J1 – 2
Connection to SGCT cathode terminal
J1 – 3
Connection to input attenuated feedback
(Short J1-3 to J1-4 to disable input SCR clamp stage for test power usage)
J1 – 4
Connection to 300V DC common connection
(Short J1-3 to J1-4 to disable input SCR clamp stage for test power usage)
J1 – 5
Connection to 300V DC internal bus
(Short J1-5 to J1-6 to allow input to operate from 90V AC)
J1 – 6
Connection to TOPSwitch programming resistor
(Short J1-5 to J1-6 to allow input to operate from 90V AC)
