Analog control board (acb) – Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control User Manual
Page 145
Rockwell Automation Publication 7000-UM202B-EN-P - June 2014
145
Component Definition and Maintenance
Chapter 3
Analog Control Board (ACB)
The Analog Control Board (ACB) is the hub for all control-level signals external
to the drive. The drive routes analog I/O, external fault signals (through the XIO
board), DPI communication modules, remote I/O, terminal interface, printers,
modem, and other external communication devices through this board.

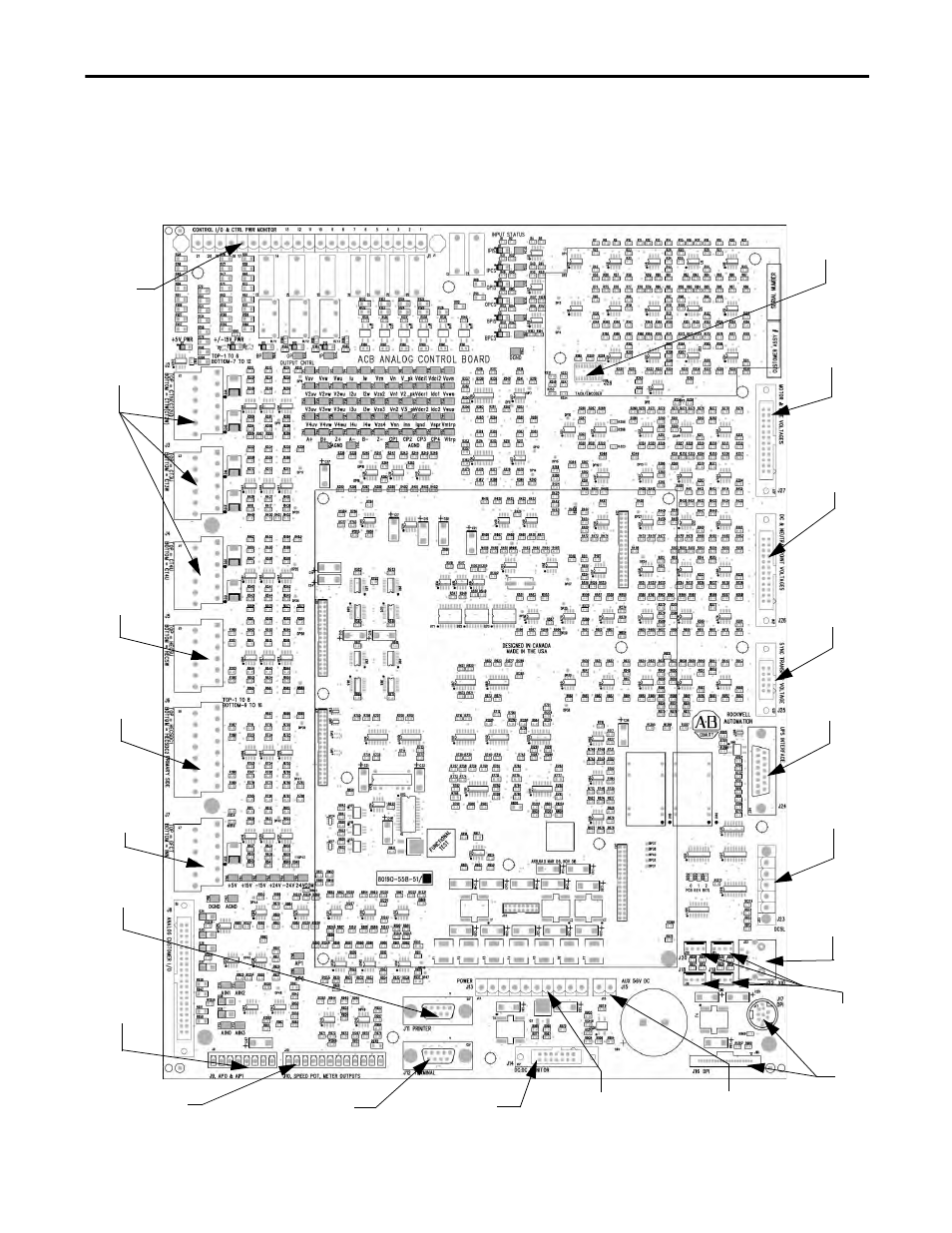

Figure 131 - ACB analog control board
Line Current
Inputs
Motor Current
Inputs
DC Link
Current
Inputs
Ground Fault
& CMC Neutral
Current Inputs
Air
Pressure
Inputs
Meter Inputs &
Speed Pot Input
Comms
Connections
DC Power Supply
Monitoring
XIO-PWR(+24V,+/-15V, +/-24V,
+5V DIG, DC Power Supplies)
DC -ABUS +56V
Monitoring (in UPS option)
Comms Connections
Terminal (Panelview)
Control I/O
Status &
Control
Power
Monitoring
Encoder
Interface
Motor &Line
AC Voltage
Feedback
Motor & Line
DC Link and
Neutral Point
Voltage Inputs
Line Voltage
Sync. Transfer
Feedback
Inputs
UPS Fail
Signal
Monitoring
Comms
Connections
DCSL
Comms
Connections
XIO Board
DC Fail
Signal
Monitoring
DPI
