Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control User Manual
Page 77
Rockwell Automation Publication 7000-UM202B-EN-P - June 2014
77
Component Definition and Maintenance
Chapter 3
3.
Remove the push nuts on the end of the retaining rod. Pinch the clip
together and pull off. Pull out the retaining rod.
4.
Remove two bolts and swing out PowerCage plug-in stab assembly.

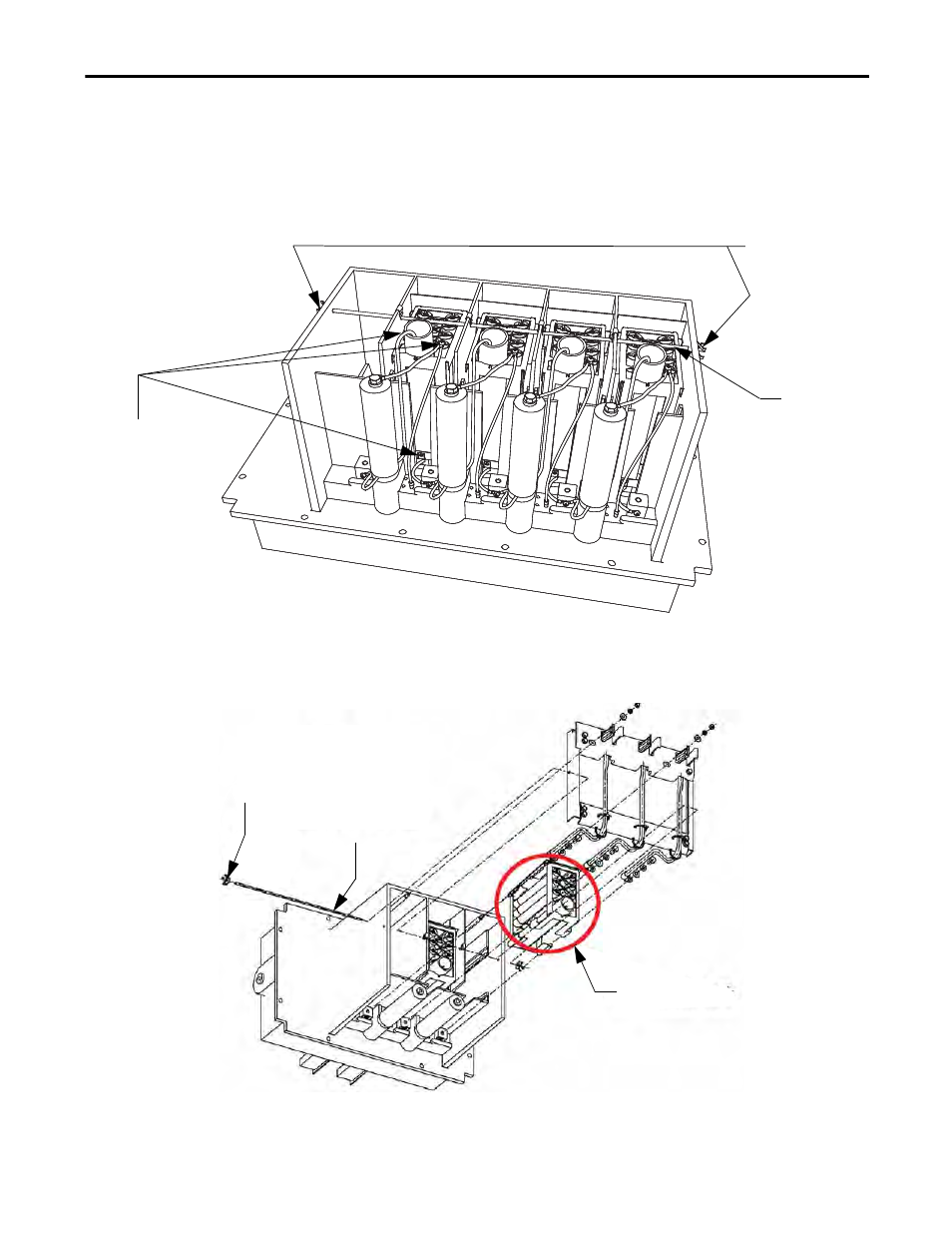

Figure 69 - Snubber Capacitor Replacement
Figure 70 - Removing capacitor bank from PowerCage
1. Detach leads of
resistor assembly
2. Pinch and remove
clips at end of retaining
rod
3. Extract
retaining rod
Push Nut
Retaining Rod
Resistor Bank
