Replacing Heat Sinks/
Heat Pipes

There are three different styles of heat sinks and one type of heat pipe used in
PowerFlex air-cooled drives, depending on thermal requirements:

Aluminum Type W heat sinks have a plurality of short internal fins along
the internal surfaces

Aluminum Type M heat sinks have internal fins with flat surfaces.

Copper heat sinks have internal fins made from folded copper foil

Heat pipes have a stack of aluminum fins

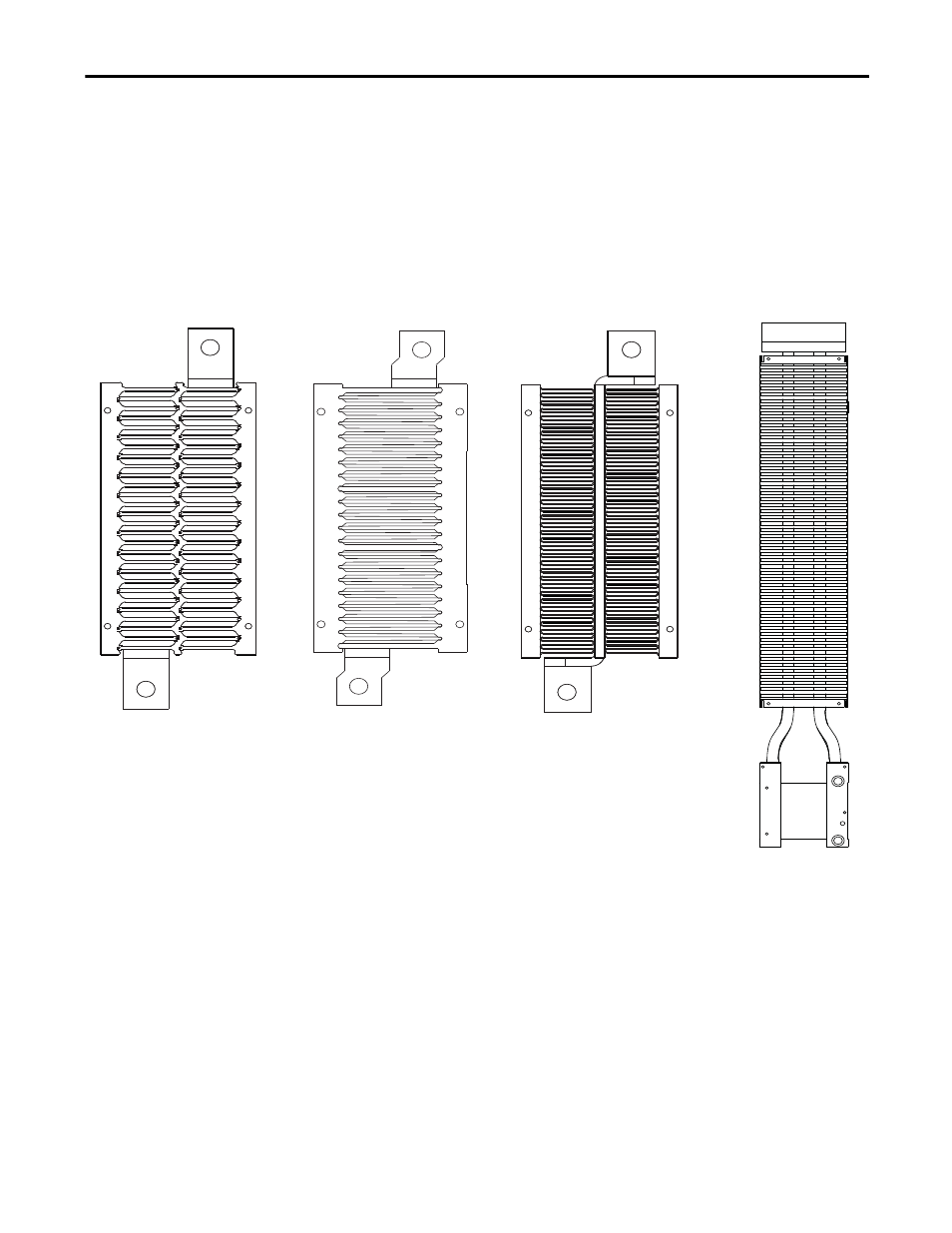

Figure 85 - Styles of Heat Sinks / Heat Pipes

Aluminum Type W

Aluminum Type M

Copper

Heat Pipe
