Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control User Manual
Page 130
130
Rockwell Automation Publication 7000-UM202B-EN-P - June 2014
Chapter 3
Component Definition and Maintenance
Terminal / Connections Descriptions (Cosel Power Supply)
The terminal connections are shown in
.

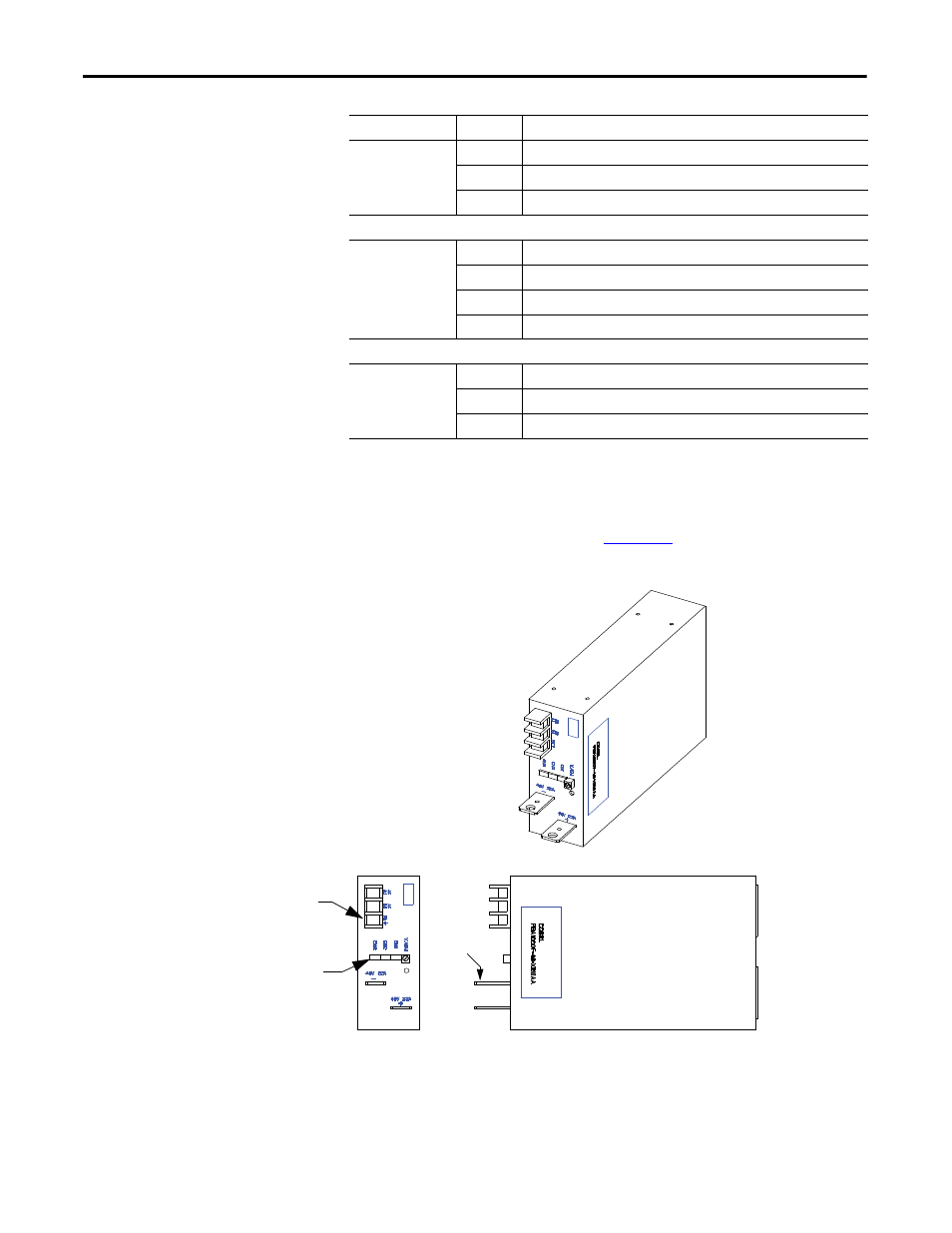

Figure 117 - Terminal locations on 1000W AC/DC Power Supply (Cosel)
PIN#
LABEL
P1-AC input
1
EARTH
2
LINE
3
NEUTRAL
P2-DC output
1
+56V
2
+56V COMM
3
+56V
4
+56V COMM
P3-FAIL output
3
DC POWER FAIL (OUTPUT POWER GOOD)
15
CURRENT SHARING
14
DC POWER FAIL COMMON
FRONT VIEW
Control Signals
Single Phase
Input
DC
Outputs
