Rockwell Automation Publication 7000-UM202B-EN-P - June 2014

107

Component Definition and Maintenance

Chapter 3

20.

Remove the jumper between TB3-1 and TB3-2.

21.

Apply a constant fiber optic signal to the OP1 input.

22.

Apply a 60 Hz, 33% duty cycle signal, at a 0 to +2V level, between the
TB1-2 input and COM. Verify the signals as illustrated from

Figure 94

to

Figure 97 on page 109

. Note that in

Figure 97 on page 109

there should be

a 220 μS, +/-20 μS time between the rising edge of the U4-pin7 pulse and
the falling edge of the TP7 signal.

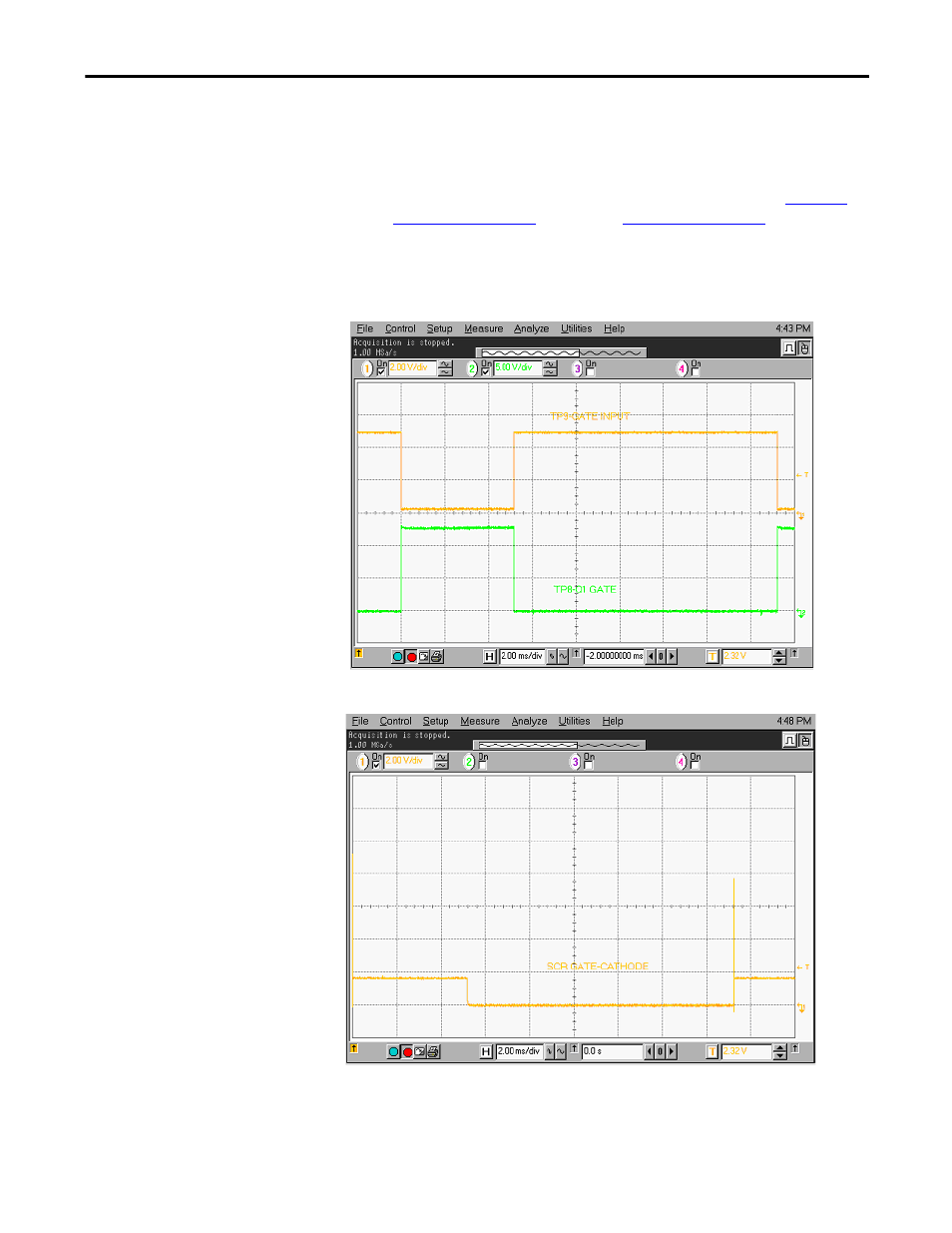

Figure 93 - Gating Pulses

Figure 94 - SCR Gating Pulses
