Control Power Components

There are two configurations for distributing control power for the drive,
dependent on your selected drive option.

Direct-to-Drive (transformerless AFE rectifier) (refer to

Figure 111

)

AFE/18 Pulse rectifier with separate isolation transformer (refer to

Figure 112 on page 127

)

Ride-Through

Standard controls with 5 cycle ride-through: The drive main control boards will
remain energized for a total of 5 cycles after control power interruption. If you
cannot restore control power during the 5 cycles, the drive performs a controlled
shutdown.

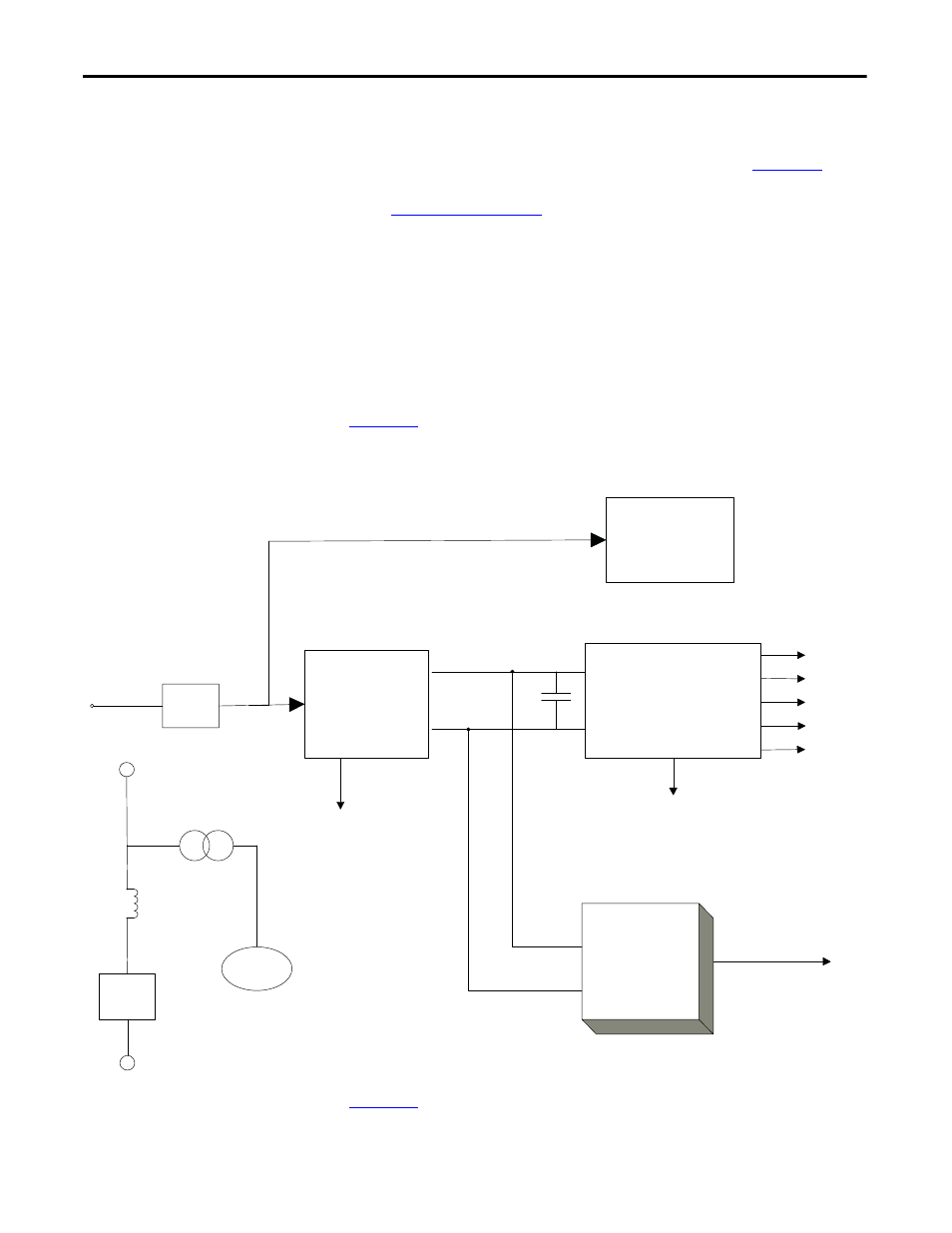

Figure 111

illustrates the control power distribution for AFE drives with integral

starter/line reactor.

Figure 111 - Direct-to-Drive (transformerless AFE Rectifier)

Figure 112

illustrates the control power distribution for AFE drives with remote

transformer/starter or integrated line reactor with remote starter.

Line

Filter

Customer

Supplier

120V 1-ph

Line

Reactor

VFD

Fan

380V 50 Hx

or

460V 60 Hz

3-ph

DC Fail

AC/DC Converter

56V DC

600 W/ 1000W/

1500 W

- Printer

- Operator Interface

- Relays

C Hold-up

DC/DC Converter

Sense Cable

24V-Isolators

24V-XIO

+/-24V-HECS

+/-15V Logic

5V-Logic

20V Isolated Gate

Driver Power Supply

Inverter only for SPS Drives

20V
