70 Rockwell Automation Publication 520COM-UM003A-EN-E - June 2013
Chapter 5 Using the I/O
Creating Ladder Logic Using the Generic Profile in RSLogix 5000 or
Logix Designer Software
Controller Tags
When you add the drive to the I/O configuration (see Configuring the I/O on
page 39 ), RSLogix 5000 or Logix Designer automatically creates generic (non-
descriptive) controller tags. In this example program, the following controller
tags are used.

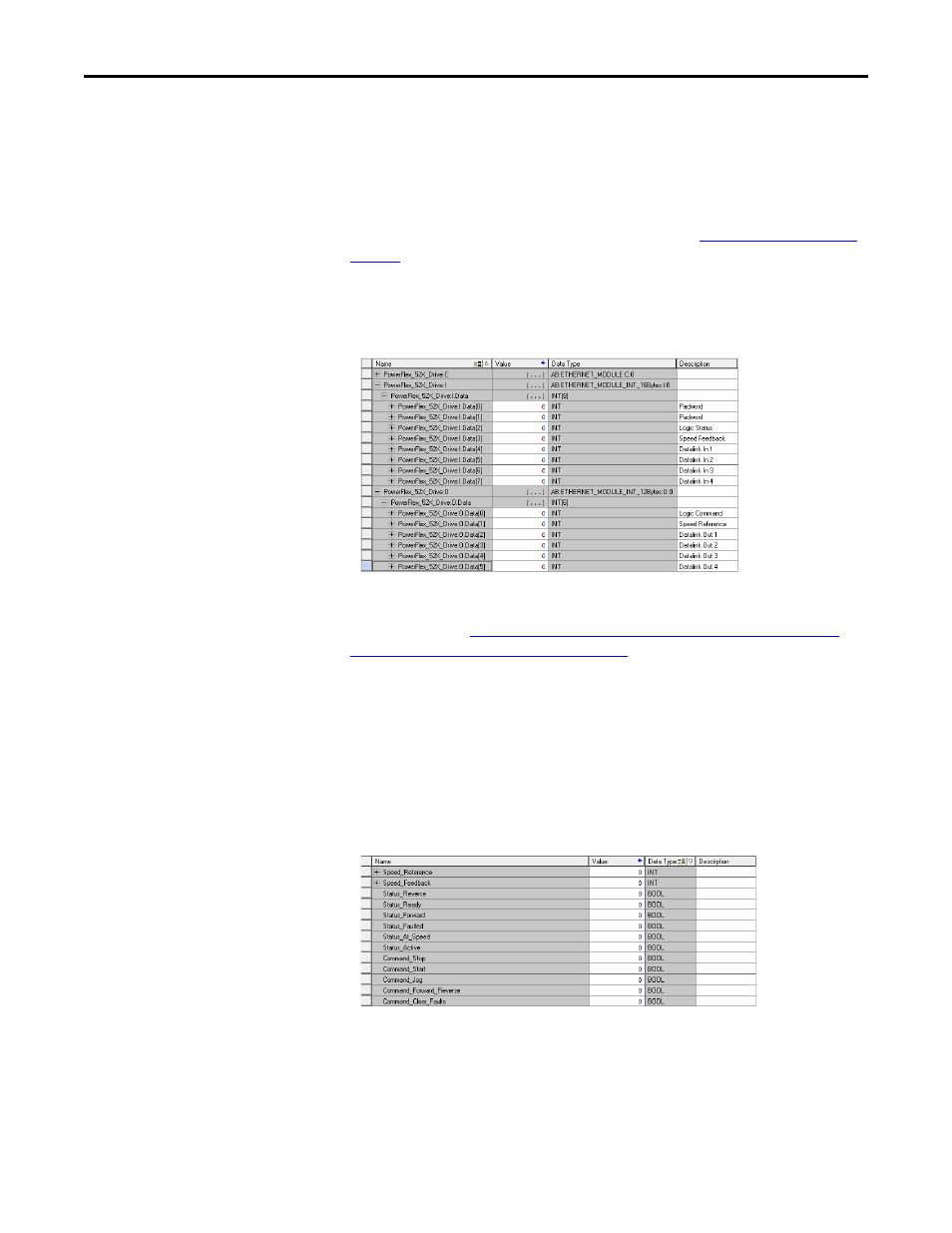

CompactLogix Controller Tags for Drive Generic Profile Ladder Logic Program Example
You can expand the Input and Output tags to reveal the input and output
configuration (see
CompactLogix Controller Tags for Drive Generic Profile
Ladder Logic Program Example on page 70 ). The Input tag for this example
requires eight16-bit words of data. The Output tag for this example program
requires six 16-bit words of data.
Program Tags
To use the Controller tags that are automatically created, you need to create the
following Program tags for this example program.
CompactLogix Program Tags for Drive Generic Profile Ladder Logic Program Example
