Rockwell Automation 25-COMM-E2P PowerFlex 25-COMM-E2P Dual-Port EtherNet/IP Adapter User Manual
Page 101
Rockwell Automation Publication 520COM-UM003A-EN-E - June 2013
101
Using Multi-Drive Mode
Chapter 7

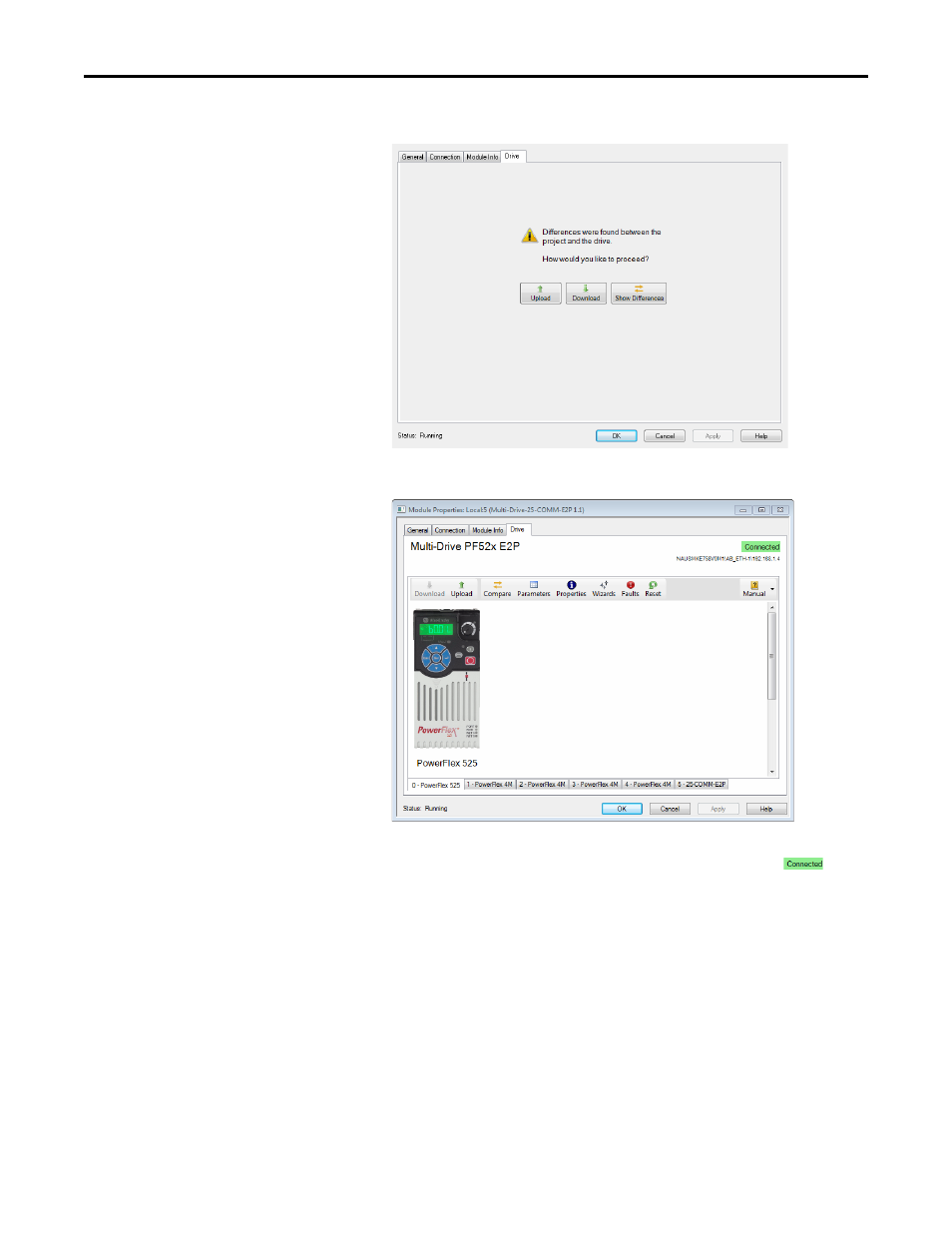

Differences Found Screen
3.
The Drive tab displays a screen of the drive.
If the download is successful, the Drive tab will show a green
indicator in the upper right corner of the window. This tab is extremely
useful for configuring drive parameters, accessing start-up wizards and
troubleshooting. Note that there is a tab for the master as well as each of
the daisy-chained drives.
4.
Click OK to close the Module Properties window for the drive.
TIP
You may now use the automatically generated tags to create your
controller logic.
