Page 115: Chapter
Rockwell Automation Publication 520COM-UM003A-EN-E - June 2013
115
Chapter
8
Troubleshooting
This chapter provides information for diagnosing and troubleshooting potential
problems with the Dual-port EtherNet/IP adapter and network.
Understanding the Status
Indicators

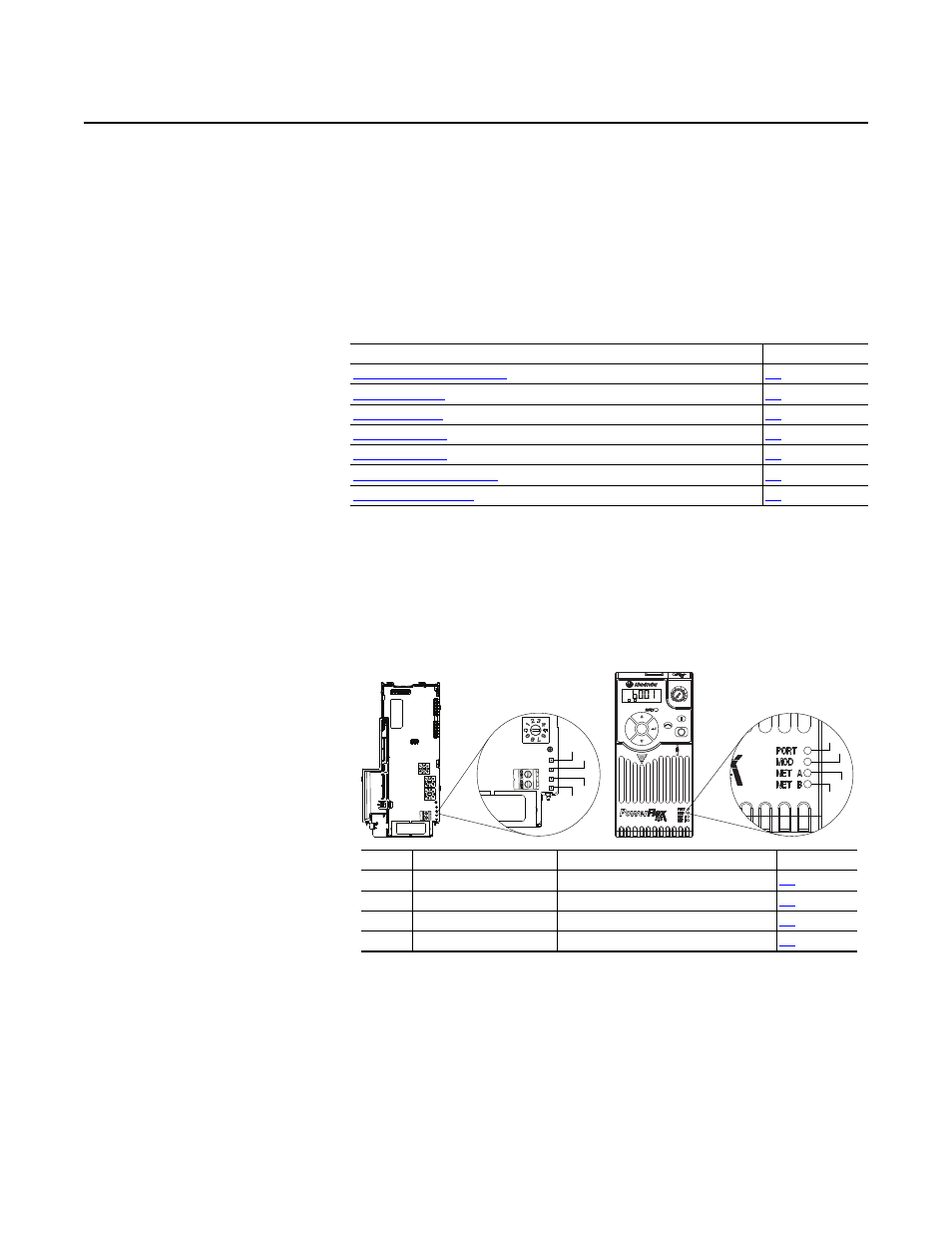

The adapter has four status indicators. They can be viewed on the adapter or
through the drive cover.
Status Indicators
Topic
Page
Understanding the Status Indicators
Viewing Adapter Diagnostic Items
Esc
Sel
FWD
ENET LINK
EtherNet/IP
➊
➋
➌
25-COMM-E2P
PowerFlex 525 Frame A shown
➍
➊
➋
➌
➍
Item
Status Indicator
Description
Page
➊
PORT
DSI Connection Status
➋
MOD
Adapter Status
➌
NET A
Network Connection Status
➍
NET B
Adapter Transmission Status
