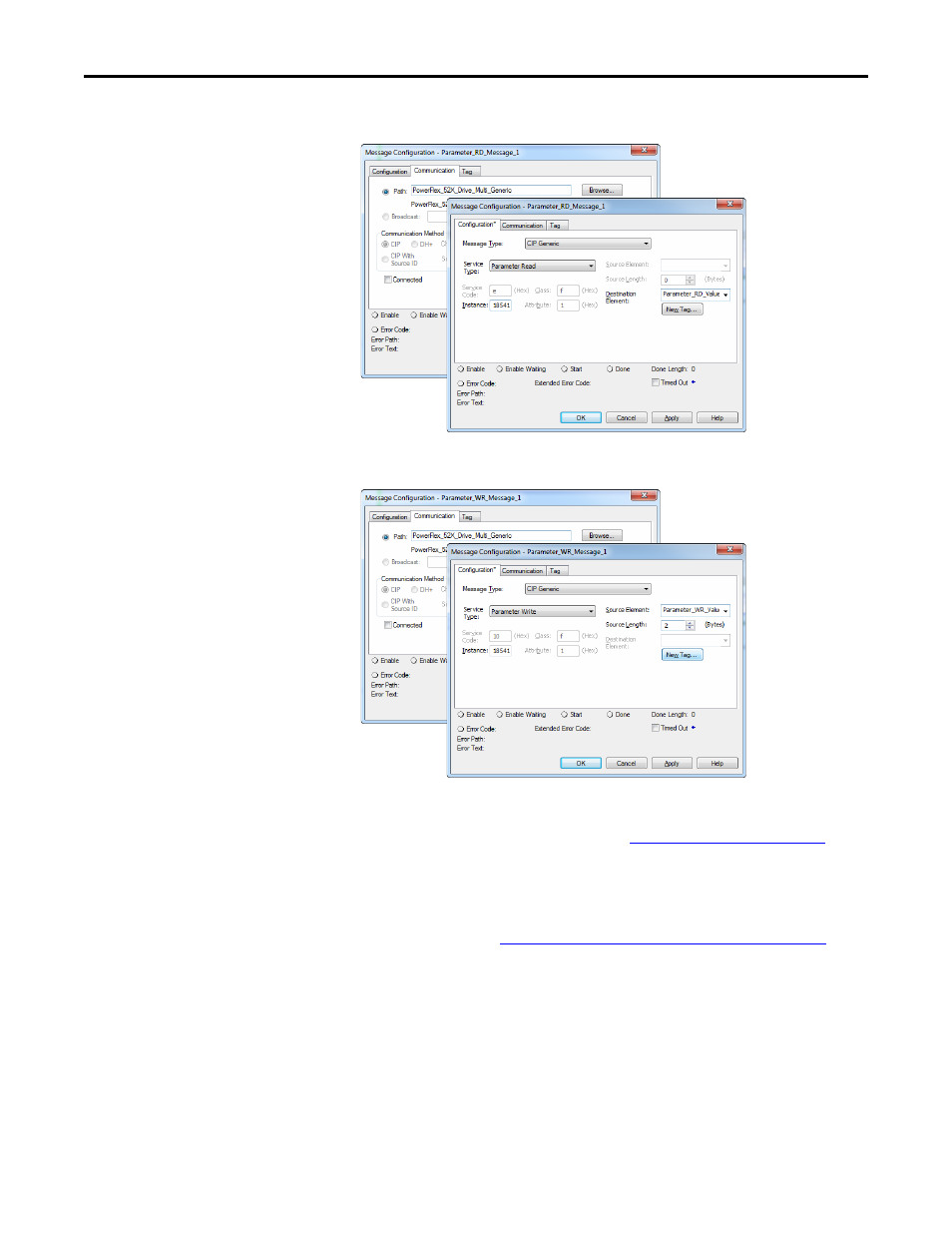

Parameter Read Message Configuration

Parameter Write Message Configuration

The Class Code is “f ” for the Parameter Object and the Instance Attribute is “1”
to select retrieving the parameter value. See

Parameter Object on page 136

for

more information. The Instance value is “18541” to access parameter P109
[Accel Time 1]

in the first daisy-chained drive.

The Explicit message for the other daisy-chained drives are identical except for
the Instance values, see

Multi-Drive Mode Explicit Messaging on page 111

for

examples.

Additional Information

When the PowerFlex 525 drive (Drive 0) is powered up, all configured
daisy-chained drives must be present before an I/O connection is allowed
on EtherNet/IP (before the drives can be controlled).

If the PowerFlex 525 drive (Drive 0) is powered down, communications
with the four daisy-chained drives (Drive 1 to Drive 4) are disrupted and
the drives will take their corresponding Comm Loss Actions.
