14 Diagnostics
14.4 System bus configurator of the »Engineer«
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
14.4 System bus configurator of the »Engineer«

1. First directly connect your notebook via the USB system bus adapter EMF2177IB to the
CANopen bus.
2. Start the system bus configurator ...
• via the Online button in the menu bar of the »Engineer«
• or under "Start - Programs - Lenze - Communication"
3. Activate the USB system bus adapter (EMF2177IB).

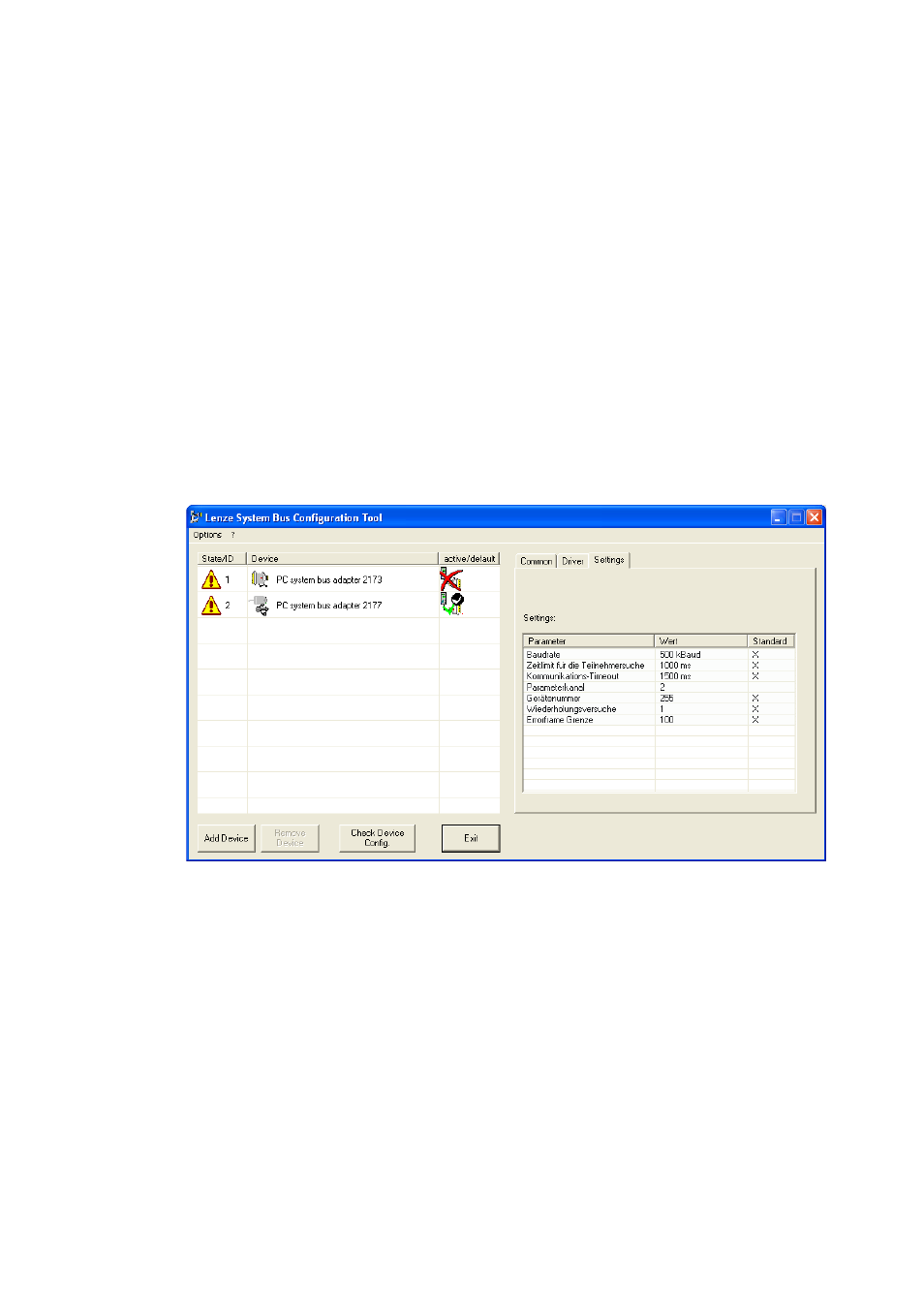

4. Check the following under the Settings tab ...
• the baud rate (identical to the setting on the devices)
• the parameter data channel (= 0):
The entire address range is scanned. Devices responding on several SDO channels are
displayed with several node addresses.
Example:
5. Click the Communication diagnostics button on the General tab to start the search.
