Mechanical installation
Standard devices in a power range of 0.25 ... 3 kW
Filter mounting variant
5

97 EDS84ASC552 EN 9.1
E84ZESR008

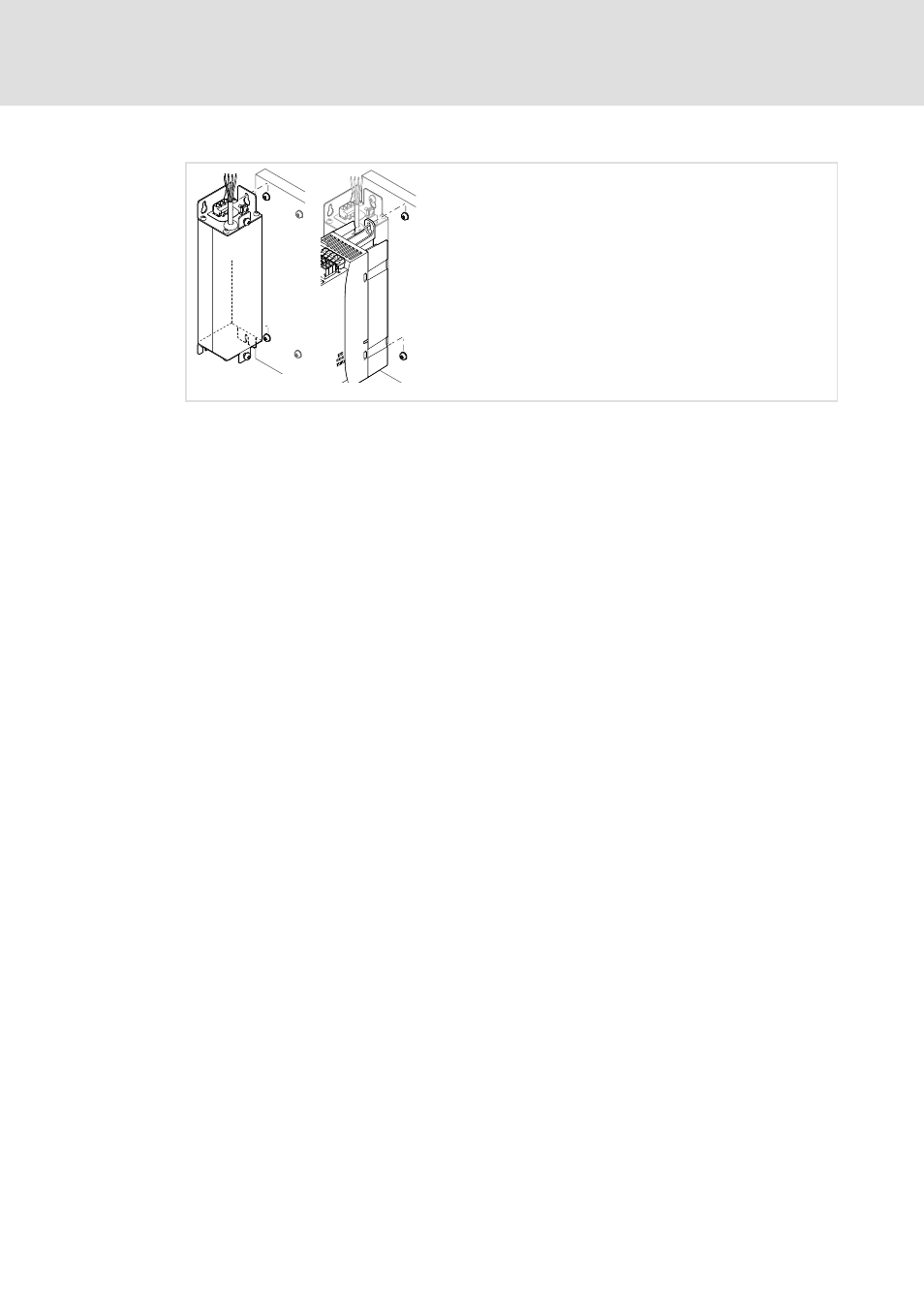

Fig. 5-6 Assembly with side-mounted filter
Proceed as follows for installation:
1. Prepare M5 threaded holes on the mounting plate and equip them with screws and
washers.
– Two M5 screw and washer assemblies or M5 hexagon socket screws with washers
for the filter.
– Two M5 screw and washer assemblies or M5 hexagon socket screws with washers
for the standard device.
– Do not yet tighten the screws.
2. Remove the screw and washer assemblies from the filter to fix the standard device.
3. Mount the filter onto the prepared mounting plate.
– Only tighten the screws hand-tight.
4. Mount the standard device onto the prepared mounting plate.
– Observe the instructions in the documentation for the standard device.
– Only tighten the screws hand-tight.
5. If necessary, preassemble additional units.
6. Align all units.
7. Screw all units onto the mounting plate.
– Tightening torque: 3.4 Nm (30 lb-in)
