Electrical installation

Devices in a power range of 30 ... 45 kW (3/PE AC 400 V)

Terminal assignment of the power connections

6

204

EDS84ASC552 EN 9.1

X100 - IT

X105 - IT

8400GG090b

8400GG094b

Fig. 6-24

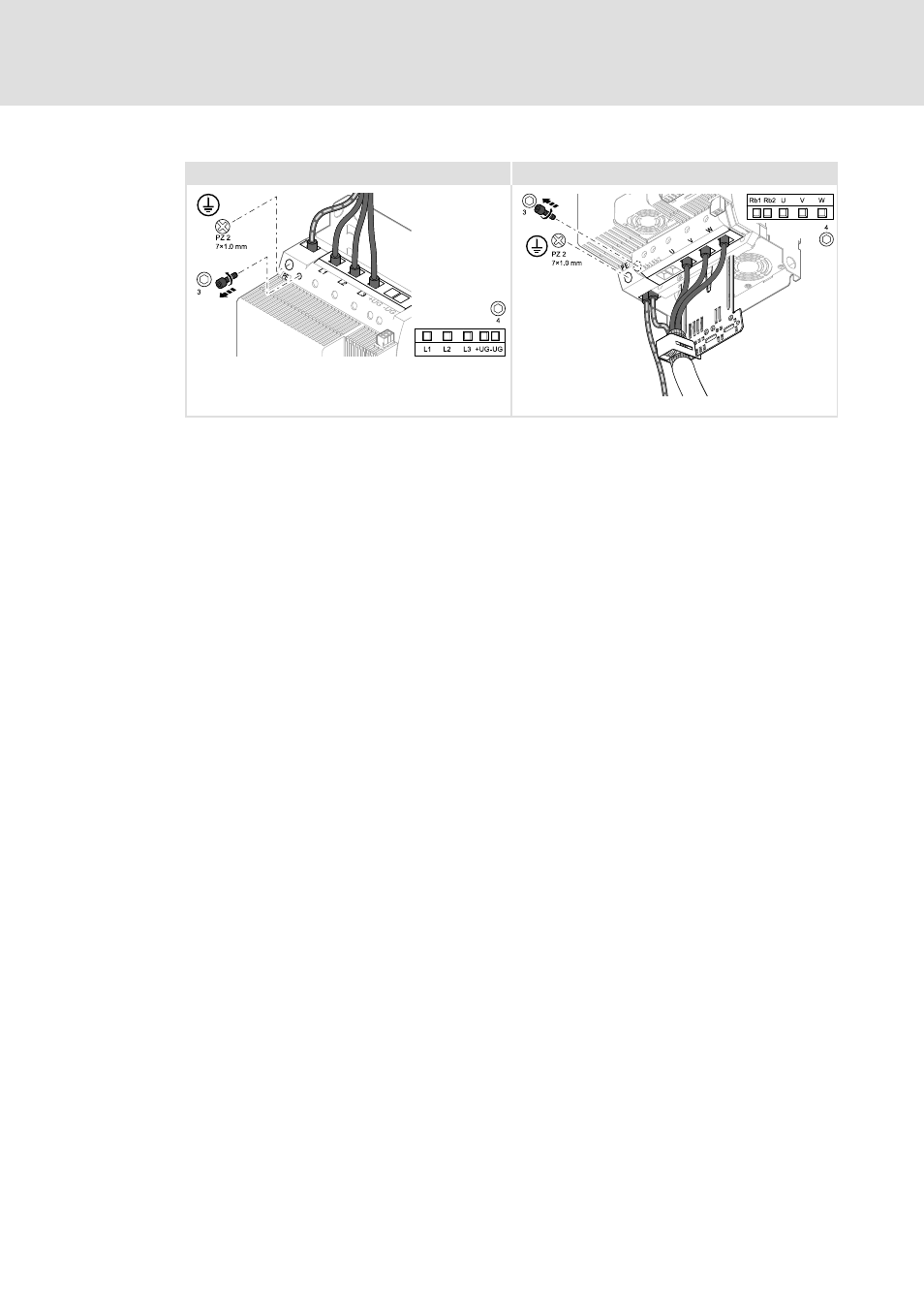

Removal of the contact screws for device size GG7 (on the supply side and on the motor side)
