Electrical installation
HighLine C control terminals
Digital inputs and outputs
6

233 EDS84ASC552 EN 9.1
6.8.3 Digital inputs and outputs
X5
24 V int.
50
mA
24E DI1 DI2 DI3 DI4 RFR
DC 24 V
(+19.2...
+28.8 V) S1
2.7k 2.7k 3.3k 3.3k 3.3k
X5
GND-I
DI5 DI6 DI7 GI 24I
1.6k 1.6k 3.3k
8400HLC036 8400HLC045

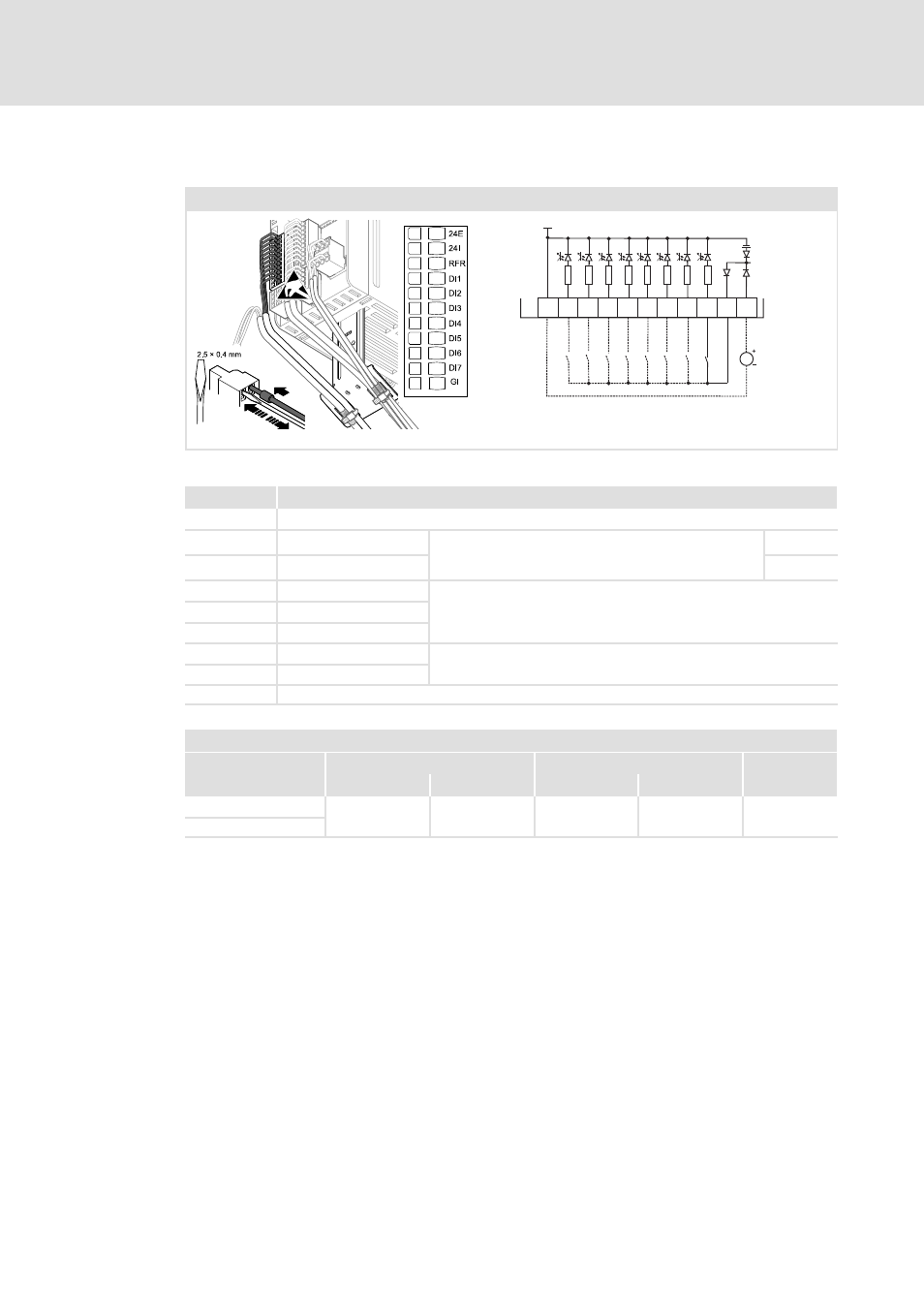

Fig. 6-42 Connection of the digital inputs
Labelling Description
RFR Controller enable/controller inhibit, always required
DI1 Digital input 1  82
IEC61131-2, type 1 or two-track frequency input, for HTL
encoder 0 ... 200 kHz
track A
DI2 Digital input 2 track B
DI3 Digital input 3
 82
IEC61131-2, type 1
DI4 Digital input 4
DI5 Digital input 5
DI6 Digital input 6
IEC61131-2, type 1 or
two-track frequency input for HTL encoder 0 ... 10 kHz DI7 Digital input 7
GI GND digital inputs
Terminal data
Conductor cross-section Tightening torque

[mm 2 ] [AWG] [Nm] [lb-in]
Flexible
0.2 ... 1.5 24 ... 16 - - -
With wire end ferrule
