Electrical installation
HighLine C control terminals
External supply voltage 24 V
6

228 EDS84ASC552 EN 9.1
6.8 HighLine C control terminals
6.8.1 External supply voltage 24 V
X5
24 V int.
50
mA
24E DI1 DI2 DI3 DI4 RFR
DC 24 V
(+19.2...
+28.8 V) S1
2.7k 2.7k 3.3k 3.3k 3.3k
X5
GND-I
DI5 DI6 DI7 GI 24I
1.6k 1.6k 3.3k
8400HLC036 8400HLC045

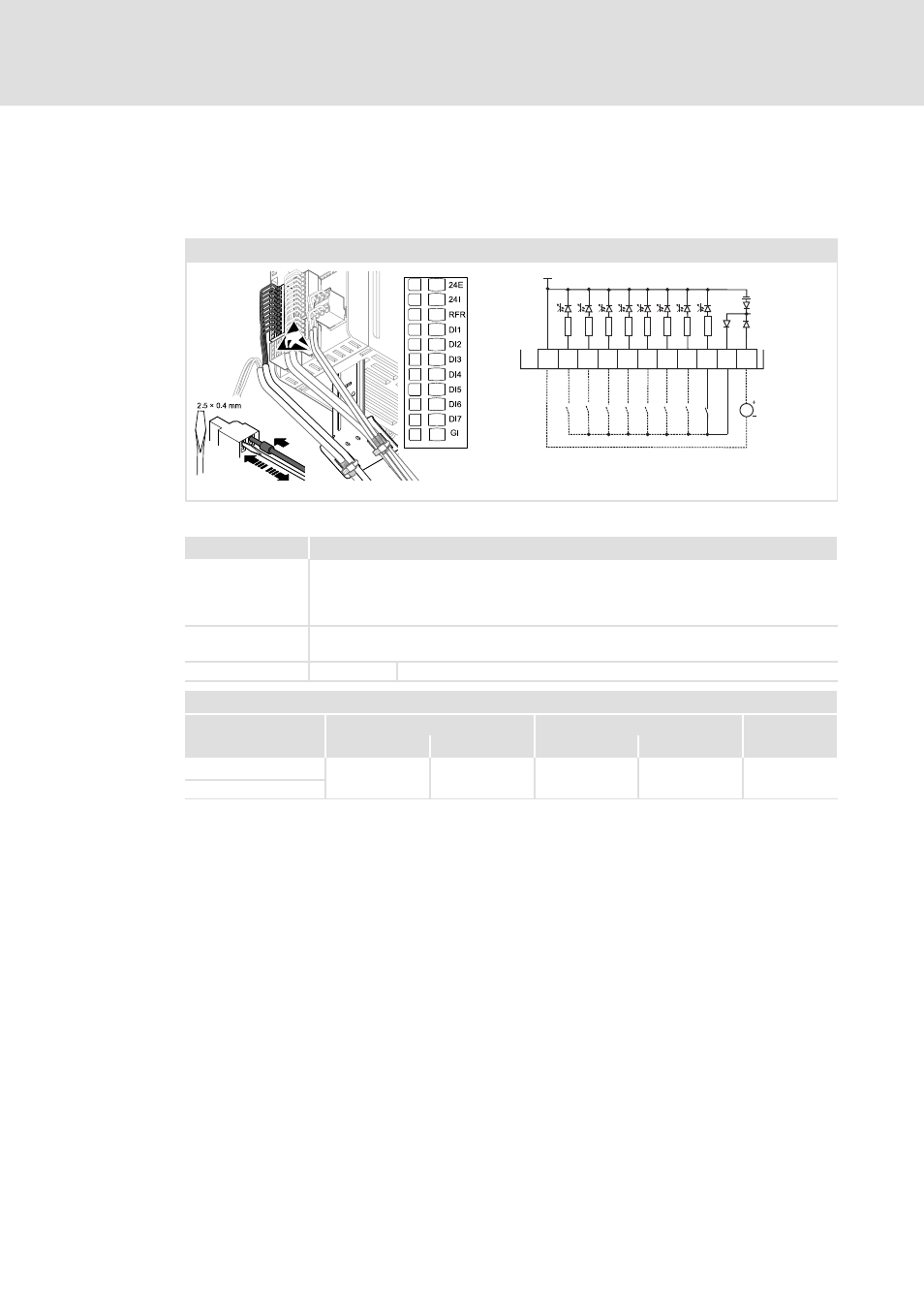

Fig. 6-38 Connection to an external supply voltage
Labelling Description
24E Connection for an external 24 V supply by a safely separated power supply
unit (SELV/PELV), IEC 61131-2
(required for mains-independent supply of the control electronics and the communication
module)
24I Output 24 V, max. 50 mA
for connection of digital inputs via potential-free contacts
GI GND-I Ground reference potential for the digital inputs
Terminal data
Conductor cross-section Tightening torque

[mm 2 ] [AWG] [Nm] [lb-in]
Flexible
0.2 ... 1.5 24 ... 16 - - -
With wire end ferrule
