StateLine C control terminals
External supply voltage 24 V
6
222
EDS84ASC552 EN 9.1
6.7
StateLine C control terminals
6.7.1
External supply voltage 24 V
X4
24 V int.
50
mA
24E
DI1
DI2
DI3
DI4
RFR
DC 24 V
(+19.2...
+28.8 V)
S1
3.3k
X4
GND-IO
DO1
GIO
24I
GND-IO
3.3k
3.3k
3.3k
3.3k
50
mA
8400SLC044
8400SLC045

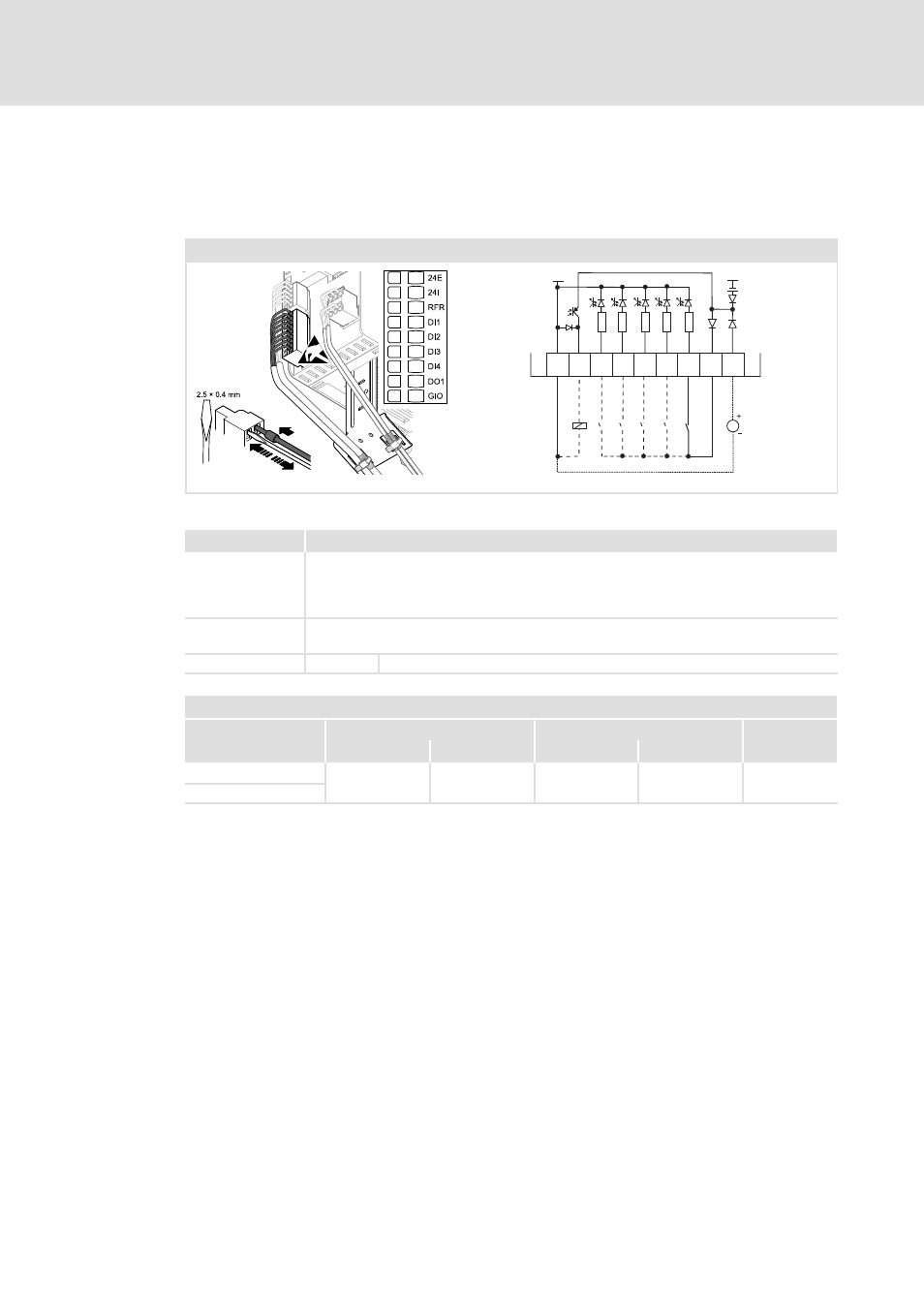

Fig. 6-33
Connection to an external supply voltage
Labelling
Description
24E
Connection for an external 24 V supply by a safely separated power supply
unit (SELV/PELV), IEC 61131-2
(required for mains-independent supply of the control electronics and the communication
module)
24I
Output 24 V, max. 50 mA
for connection of the digital inputs via potential-free contacts
GIO
GND-IO
Ground reference potential for the digital inputs and outputs
Terminal data
Conductor cross-section
Tightening torque
[mm
2
]
[AWG]
[Nm]
[lb-in]
Flexible
0.2 ... 1.5
24 ... 16
-
-
-
With wire end ferrule
