60 Instructions for Use V 2.2 RevI – 08/2013
not active
active
4. Initial Operation
Functions of the touchscreen
(continued)

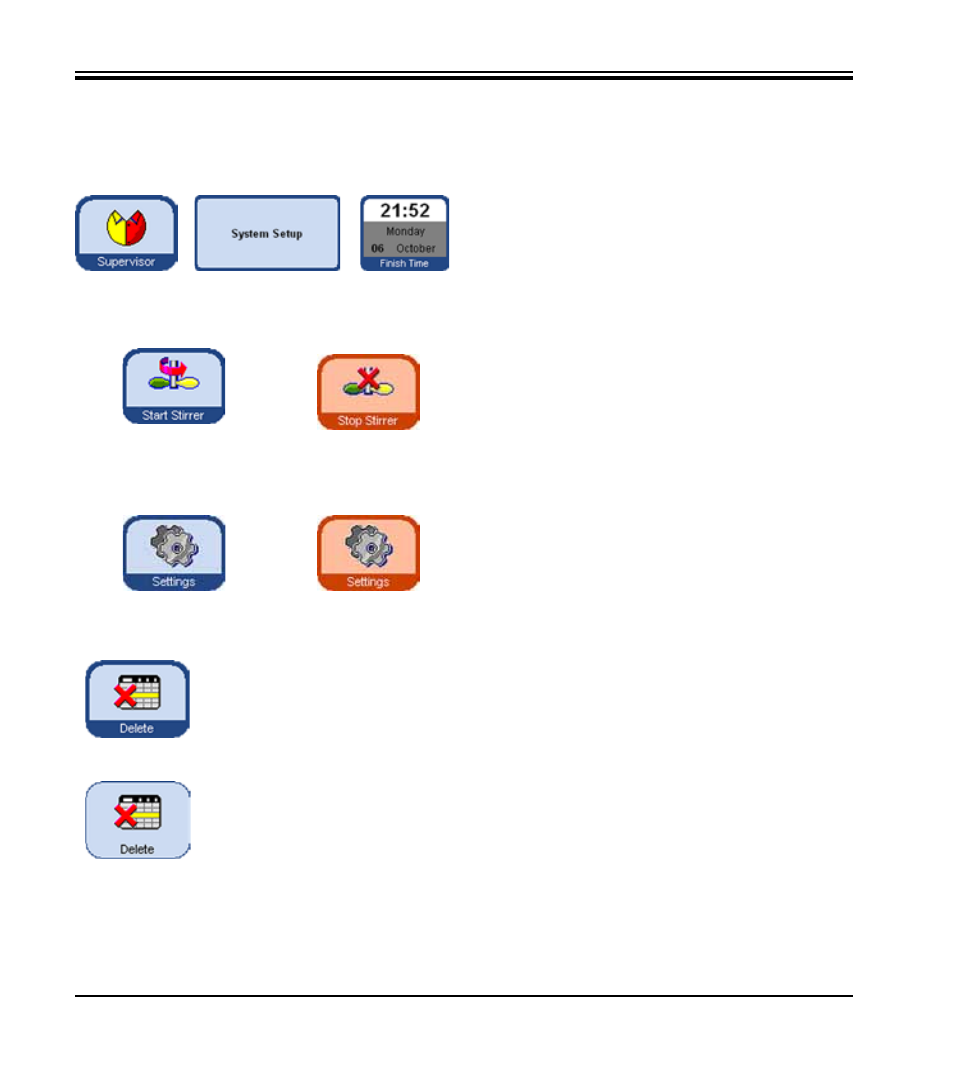

The graphic appearance of the button symbols in the ASP6025 changes depending on whether the allocated
function is possible (enabled) or not possible (disabled).
Disabled button symbols differ from those that are enabled by their thinner border. If you touch a button
symbol that is disabled, in many cases, a dialog window appears explaining the reason why the function is
currently not possible.
Button symbols
Press the corresponding button symbol to enable functions on
the touchscreen.
Button symbols may contain graphical icons or text labels.
Some button symbols change color from blue to orange to
indicate that a certain function is active.
See example to the left.

Stop Stirrer Start Stirrer
Even if one of the four main menus is opened, the associated
button also changes color from blue to orange to indicate which
menu is open.
Examples:

SETTINGS
active
Other menu
active
