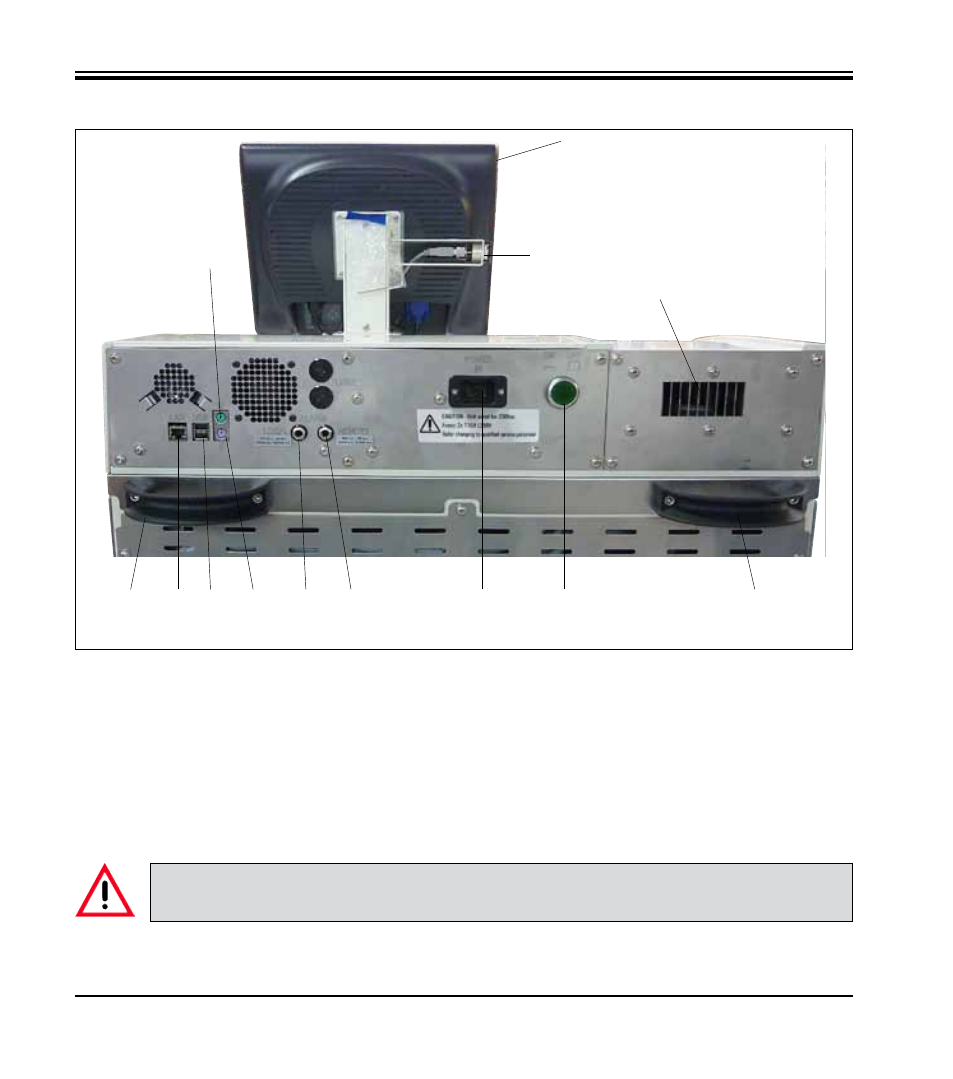

3.4.2 Instrument rear panel - terminals

Fig. 3

27

38

28 29

30

32

33

36

37

26

26

3.

Instrument Components and Specifications

5 - Monitor
26 - Handle for moving the instrument
27 - USB port (downloading/saving)
28 - Network connection (LAN)
29 - USB port
30 - Terminal for keyboard (K)

5

31

Connecting a keyboard/mouse is reserved SOLELY for trained Leica employees. This also applies to the network

connection, which is to be used only together with RemoteCare (service diagnostics).

31 - Terminal for mouse (M)
32 - Local alarm connection
33 - Remote alarm connection
36 - Power supply input
37 - Main power switch (ON/OFF)
38 - Exhaust output
