6.5 PROGRAMMER OPTION
Clicking on the Programmer tool bar icon opens the programmer configuration window, displaying the
program currently loaded in the instrument, in Segment Parameter view. If no program is loaded, the
programmer display opens with just one segment, defined as an ‘End’ Segment.

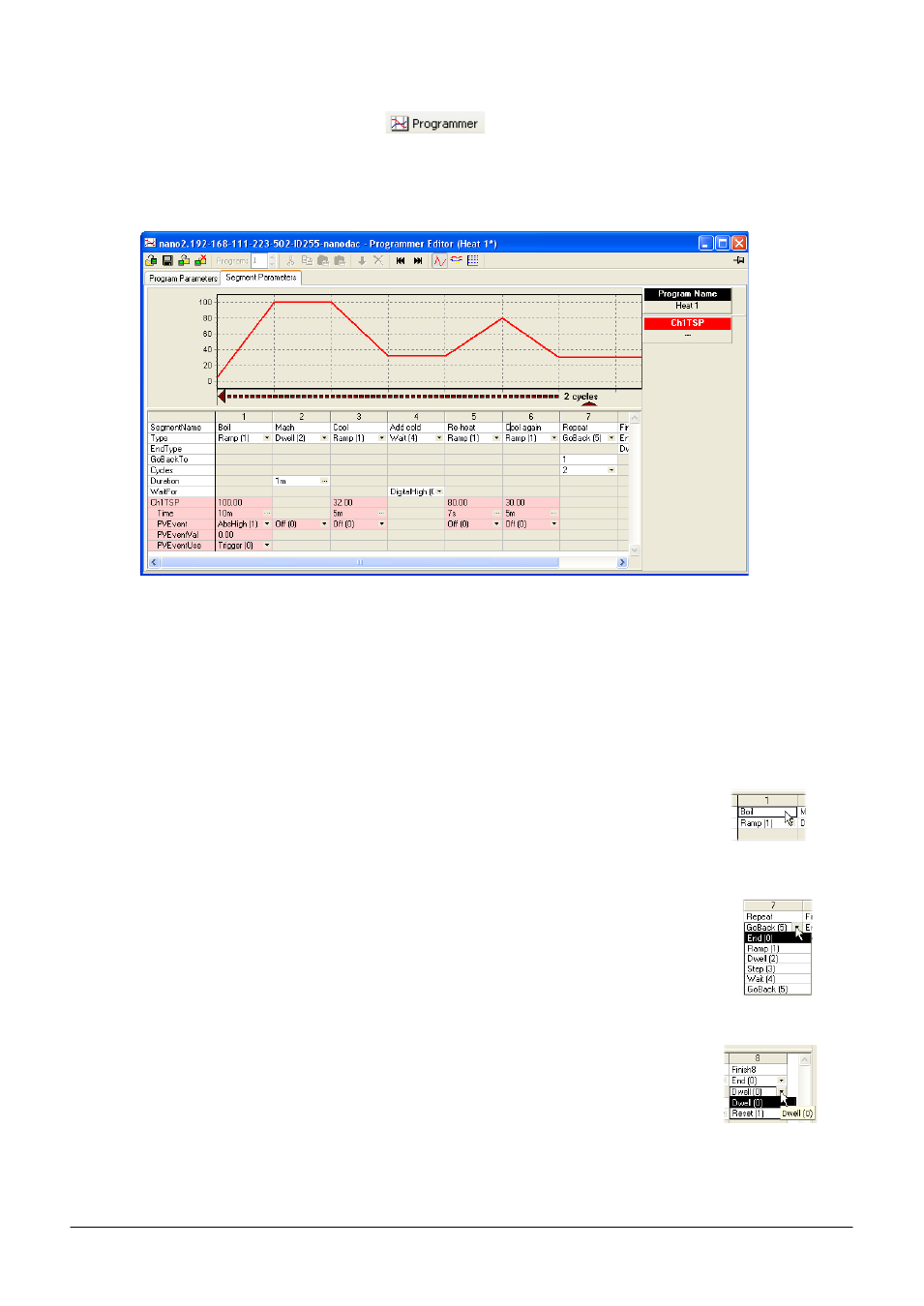

Figure 3.6 shows a simple program for example purposes. Parameters are defined in section 4.4.??
Figure 3.6 Programmer display
As can be seen from the example, the segments appear below a graphical representation of the program.
6.5.1 Segment parameter editing
SEGMENT NAME
To edit the segment name, click in the segment name field (as shown), and type in the
required text, of up to 20 characters. Alternatively, double click on the existing name and
edit it as desired.
SEGMENT TYPE
Clicking on the down arrow symbol to the right of the existing segment type field, produces a
pick list from which a segment type can be selected. The type of segment selected defines
which configuration fields appear for that segment.
END TYPE
Allows the selection of ‘Dwell’ or ‘Reset’ as the action to be taken by the End segment.
