nanodac™
MC27 –EN– 1.04
24

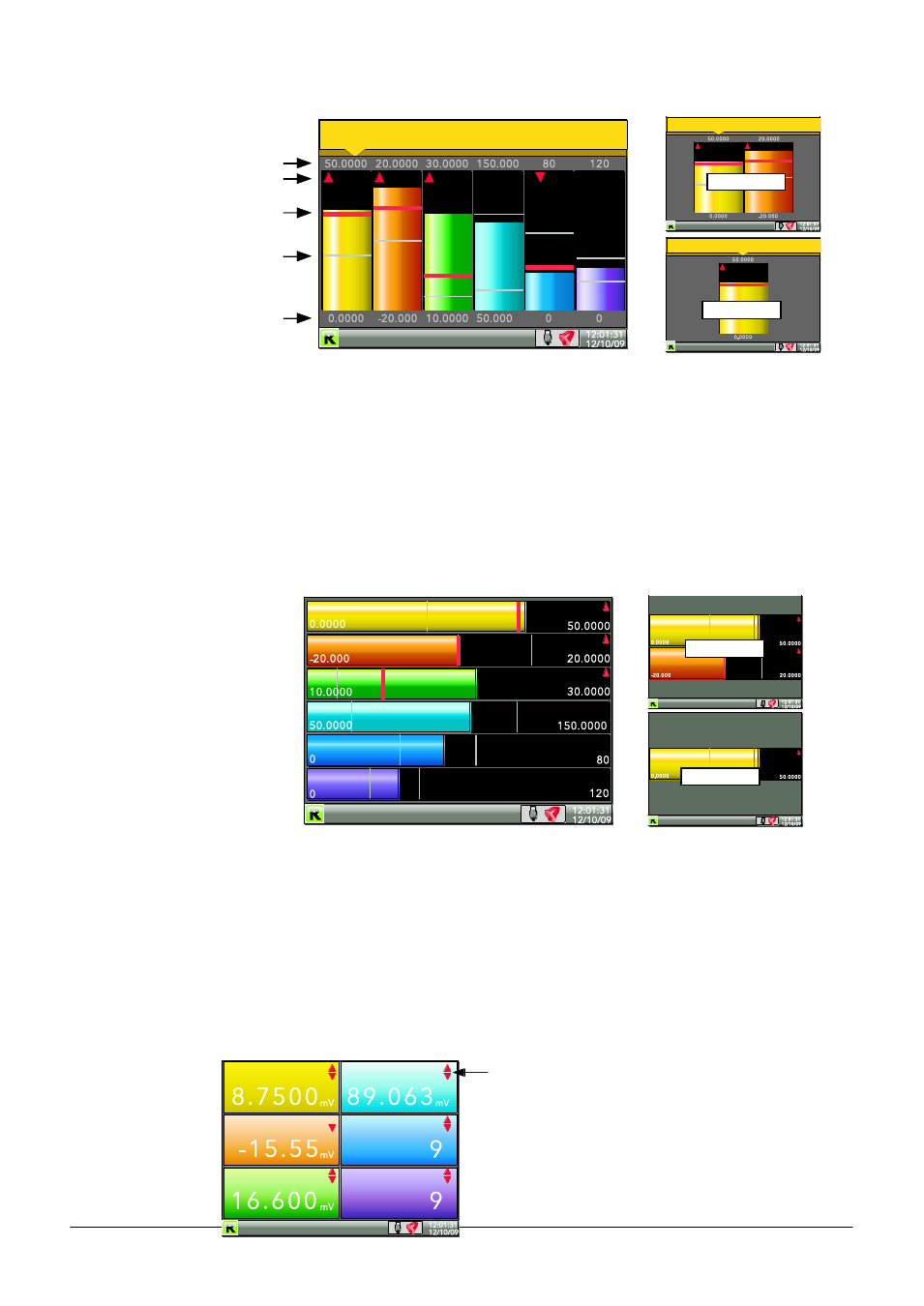

Figure 1.4.3 Vertical bargraph display mode
Use of the up arrow button causes the next enabled display mode to be entered (default = horizontal
bargraph). Use of the page key calls the top level menu.
4.4.4 Horizontal Bargraph mode
Similar to the Vertical bargraph mode described in Vertical Bargraph mode above, but includes channel
descriptors.
Figure 1.4.4 Horizontal bargraph mode
Use of the up arrow button causes the next enabled display mode to be entered (default = numeric).
Use of the page key calls the top level menu.
4.4.5 Numeric mode
Shows the enabled channels’ values along with their descriptors and with indications of the type(s) of
alarm configured for each channel.
Full scale value
Active alarm symbol
Alarm threshold (active)
Alarm threshold (non-active)
Zero value
2 channels
1 channel
Inst name
Furnace 1 temp 12
Channel 2
Channel 3
Channel 4
Virtual Chan 1
Virtual Chan 2
The scroll button
toggles the text
between point
descriptor (as shown)
and point value.
2 channels
1 channel
Alarm type indication
(
table 1.2.1 )
