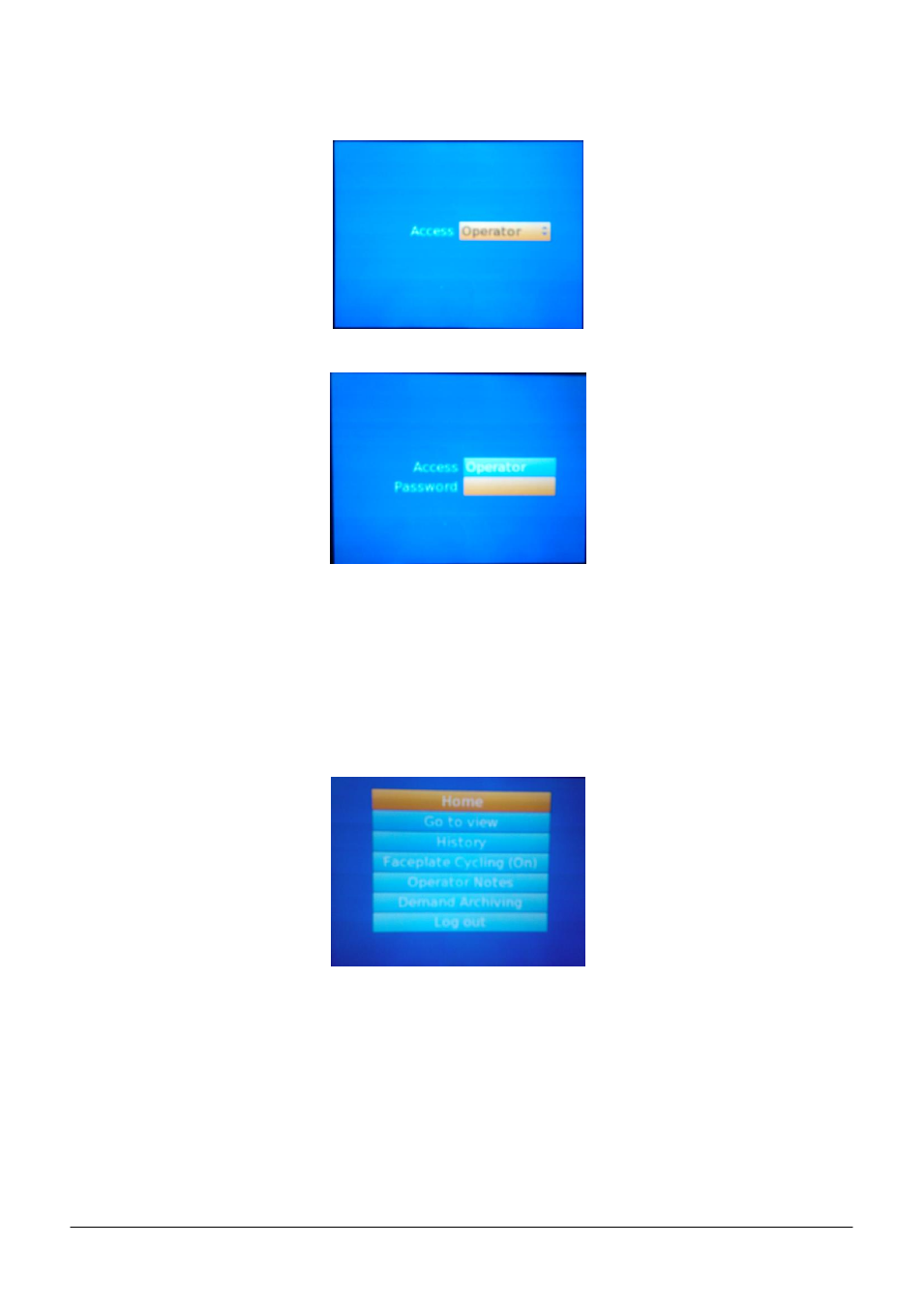

Use the arrow UP/DOWN buttons to select the operator mode as shown below.
Press the Scroll button to accept the operator mode as shown below.
A password is now required for the Operator mode. The password to be used “9”. Press the
Scroll key to bring up the keyboard and use the UP/DOWN arrows to select the numeric tab and
then number “9”.
Press the scroll button to accept the password number “9”.
Press the Home page (Left hand button).
“CANCEL – NO – YES” will appear and select “YES” using the arrow UP/DOWN buttons.
Press the Scroll key.
Note that LOGIN has now changed to LOG OUT as shown below. This is normal and correct.
Press any button to return to the home page (default page). It will now be possible to select and
highlight the boxes in the program page and select “RUN” to run a program.
