Allied Telesyn AT-VIEW PLUS
DEVICE MANAGEMENT

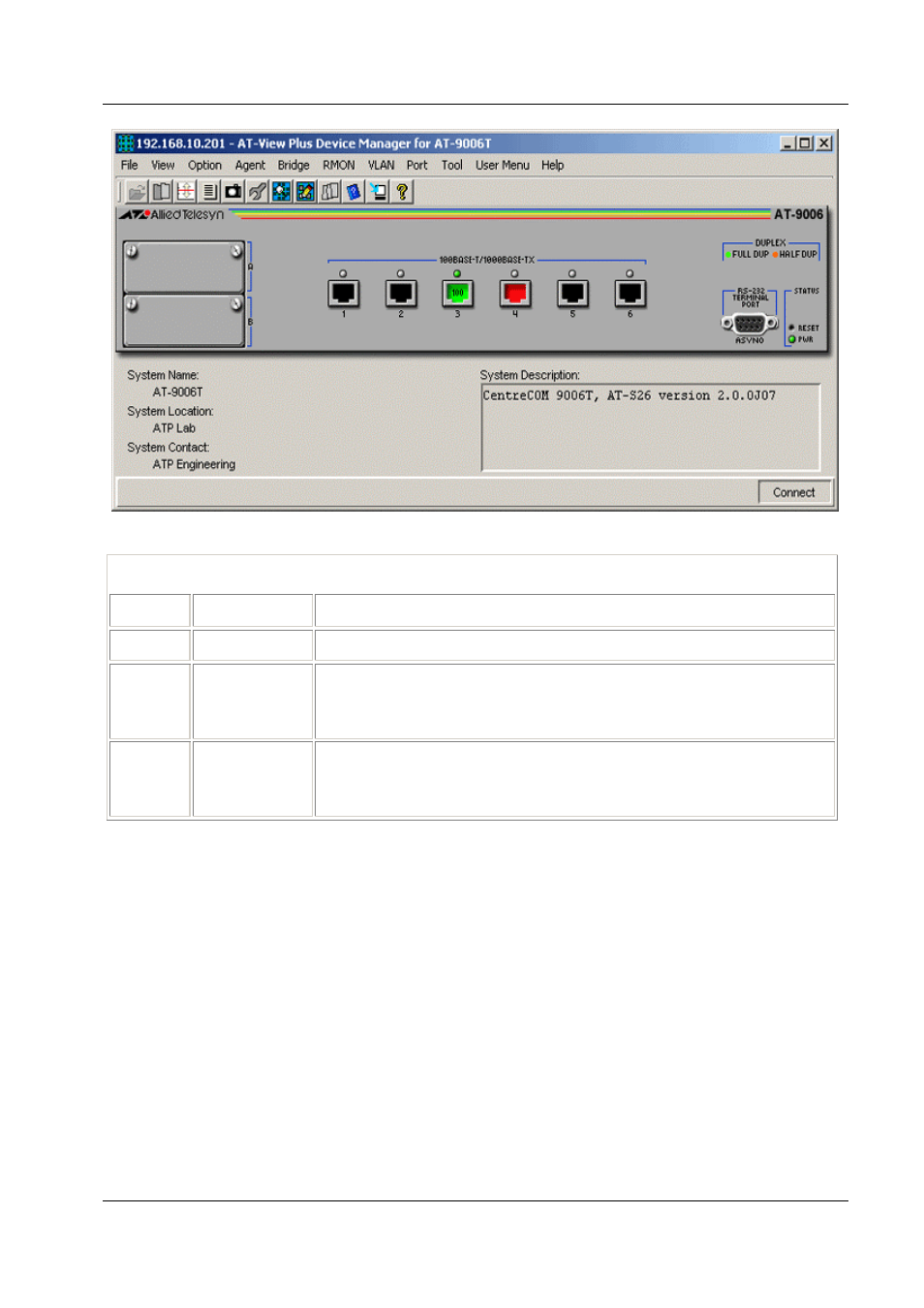

AT-9006T
Device Manager LEDs for AT-9006 Family
LED State Description
PWR Green The switch is receiving power.
RPS Green
Gray
An optional redundant power supply is connected to the switch.
There is no redundant power supply connected to the switch.
DUPLEX Green
Orange
The port is operating in full-duplex mode.
The port is operating in half-duplex mode.
Note - Ports on the expansion modules are numbered starting from 7. Slot A's leftmost port has
the smallest number and Slot B's rightmost port has the largest number.
Agent Menu
From the Agent menu, you can view and edit the system information for the device, or log into
the CLI using telnet.
System Info
Displays basic system information, including system name, location, contact and
description.
Firmware Info
Displays firmware version.
