AT-8224XL

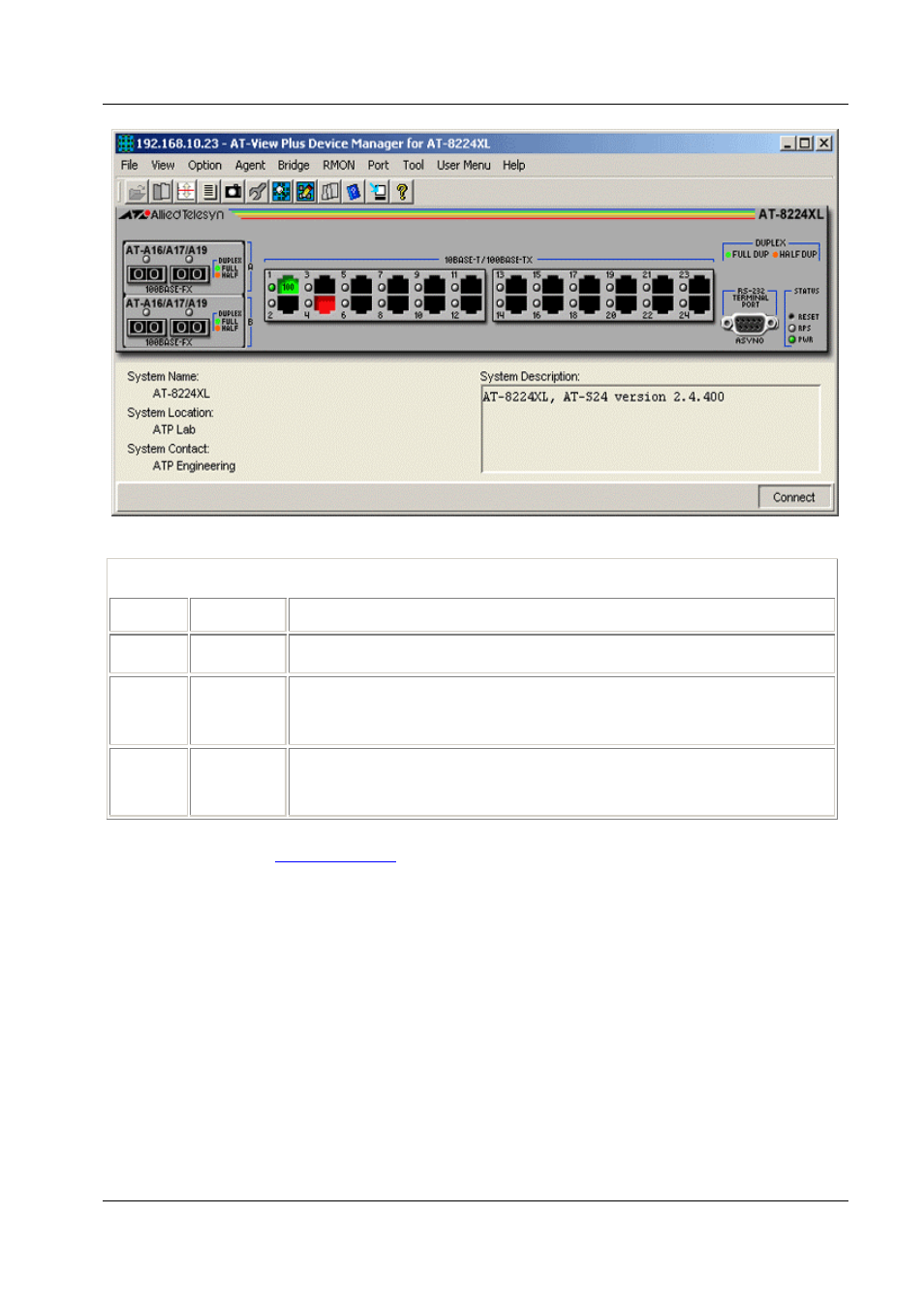

Device Manager LEDs for AT-8200XL Series
LED State Description
PWR Green The switch is receiving power.
RPS Green
Gray
An optional redundant power supply is connected to the switch.
There is no redundant power supply connected to the switch.
DUPLEX Green
Orange
The port is operating at full-duplex mode.
The port is operating at half-duplex mode.
Note - Please refer to Uplink Modules for the operations and behavior of the expansion modules
installed on these devices.
Agent Menu
From the Agent menu, you can view and edit the system information for the device, or log into
the CLI using Telnet.
System Info
Displays basic system information, including system name, location, contact and
description.
Note - The current firmware version allows the user to enter up to 64 characters for the
System Contact and the System Location parameters and up to 20 characters for the
System Name parameter.
