Allied Telesyn AT-VIEW PLUS
DEVICE MANAGEMENT

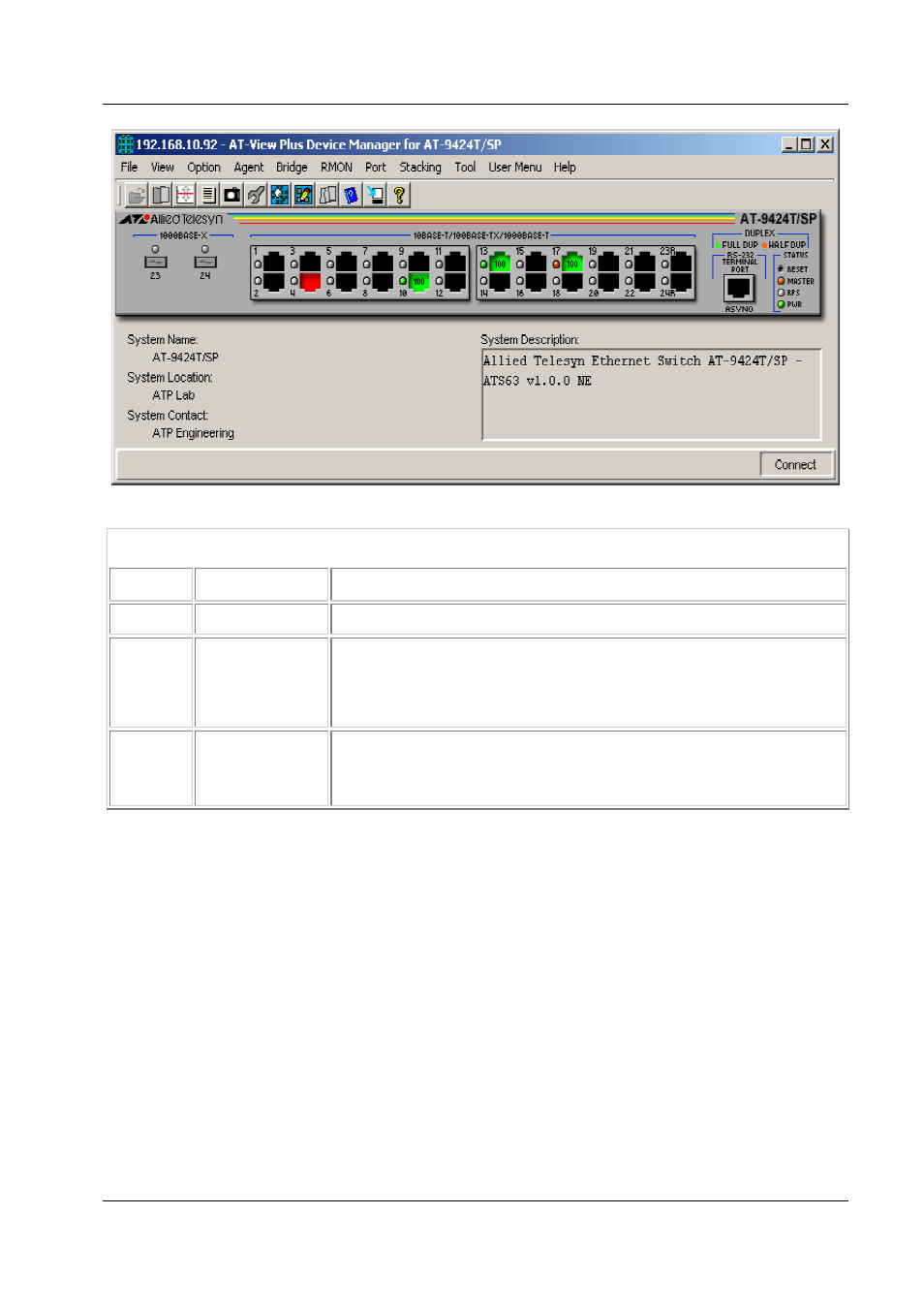

AT-9424T/SP
Device Manager LEDs for AT-9400 Series
LED State Description
PWR Green The switch is receiving power.
MASTER Orange
Gray
The switch is the master switch of an enhanced stack.
The switch is a slave switch or is not a member of an enhanced
stack.
The port is operating in full-duplex mode.
The port is operating in half-duplex mode.
DUPLEX Green
Orange
Note - Status information for the uplink ports will always be reflected on the redundant uplink
port images regardless of whether it is the primary or the redundant uplink ports that are actually
in operation.
Note - When connecting to a slave switch, AT-View Plus Device Manager does not
automatically replace the master switch image in the main window with the slave switch image.
The same is true when returning to the master switch from the slave switch. To view the updated
image, click on the Refresh option under the Agent menu.
Note - The current firmware version does not allow AT-View Plus Device Manager to support
the RPS LED.
Agent Menu
From the Agent menu, you can view and edit the system information for the device, or log into
the CLI using Telnet.
PN 613-50665-00 Rev C Page 156 of 294
