Allied Telesyn AT-VIEW PLUS
DEVICE MANAGEMENT

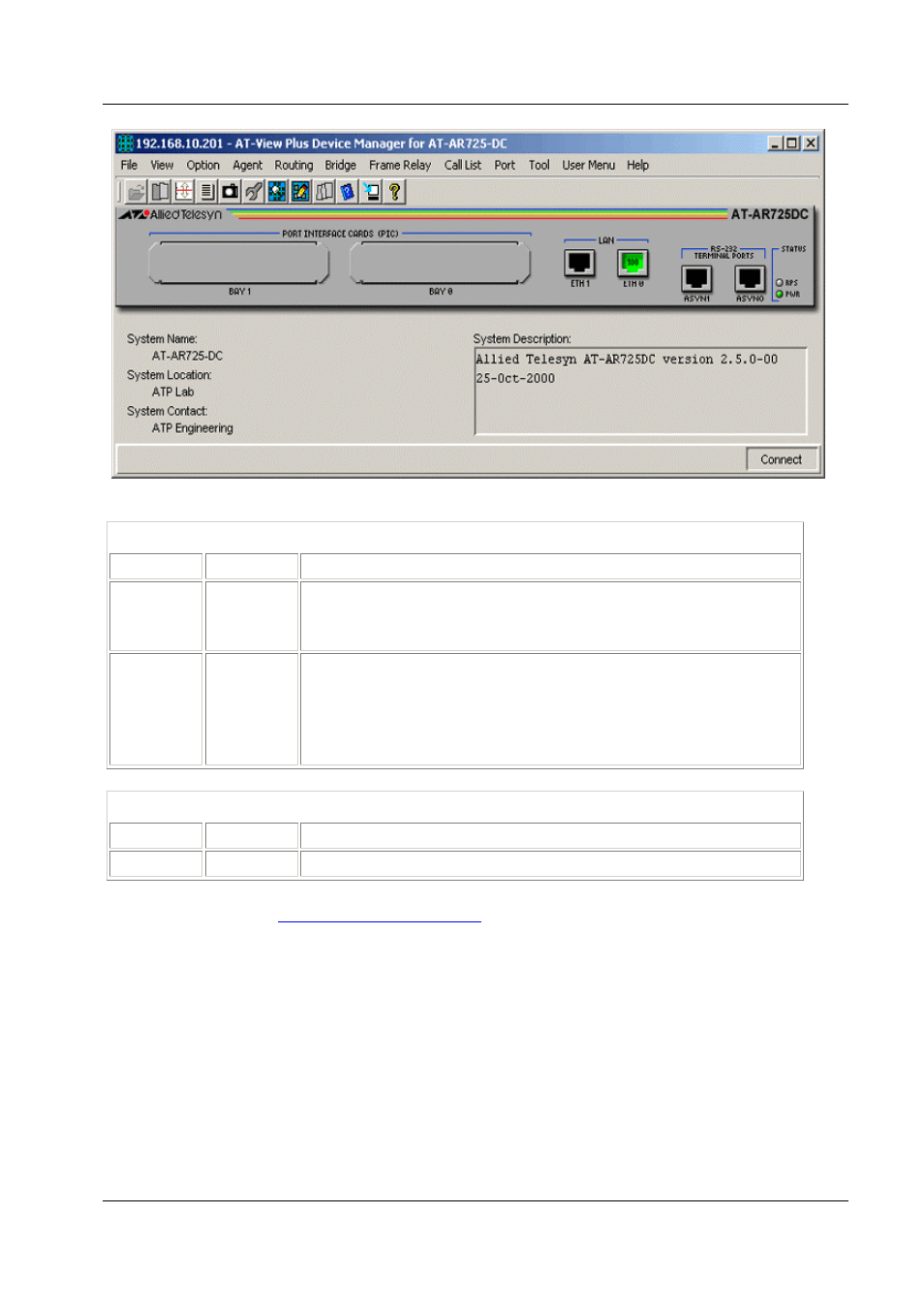

AT-AR725-DC
Device Manager LEDs for AT-AR725
LED State Description
PWR Green
Red
The router is receiving power from the main power supply unit.
The main PSU has failed.
RPS Green
Red
Gray
The router is receiving power from the redundant power supply.
RPS has failed.
RPS is not installed or RPS monitoring is disabled.
Device Manager LEDs for AT-AR725-DC
LED State Description
PWR Green The router is receiving power from the main power supply unit.
Note – Please refer to Port Interface Cards (PICs) for the operations and behavior of the Port
Interface Cards installed in this device.
Note – To turn RPS monitoring on or off on the router, from the AT-AR725 console enter the
command SET SYSTEM RPSMONITOR={ON|OFF}. To see whether RPS monitoring is on,
use the command SHOW SYSTEM. To turn on RPS monitoring using SNMP, set the
fanAndPsRpsMonitoringStatus variable to on.
Note – The current irmware version does not allow AT-View Plus Device Manager to support
the RPS LED on the AT-AR725-DC model.
PN 613-50665-00 Rev C Page 128 of 294
