DEVICE MANAGEMENT
Port selection dialog box
When you select a menu item acting on ports, a dialog box opens to let you select ports. Check
the target ports and click OK.
Note - If you select multiple ports, it may take some time for data to be displayed.

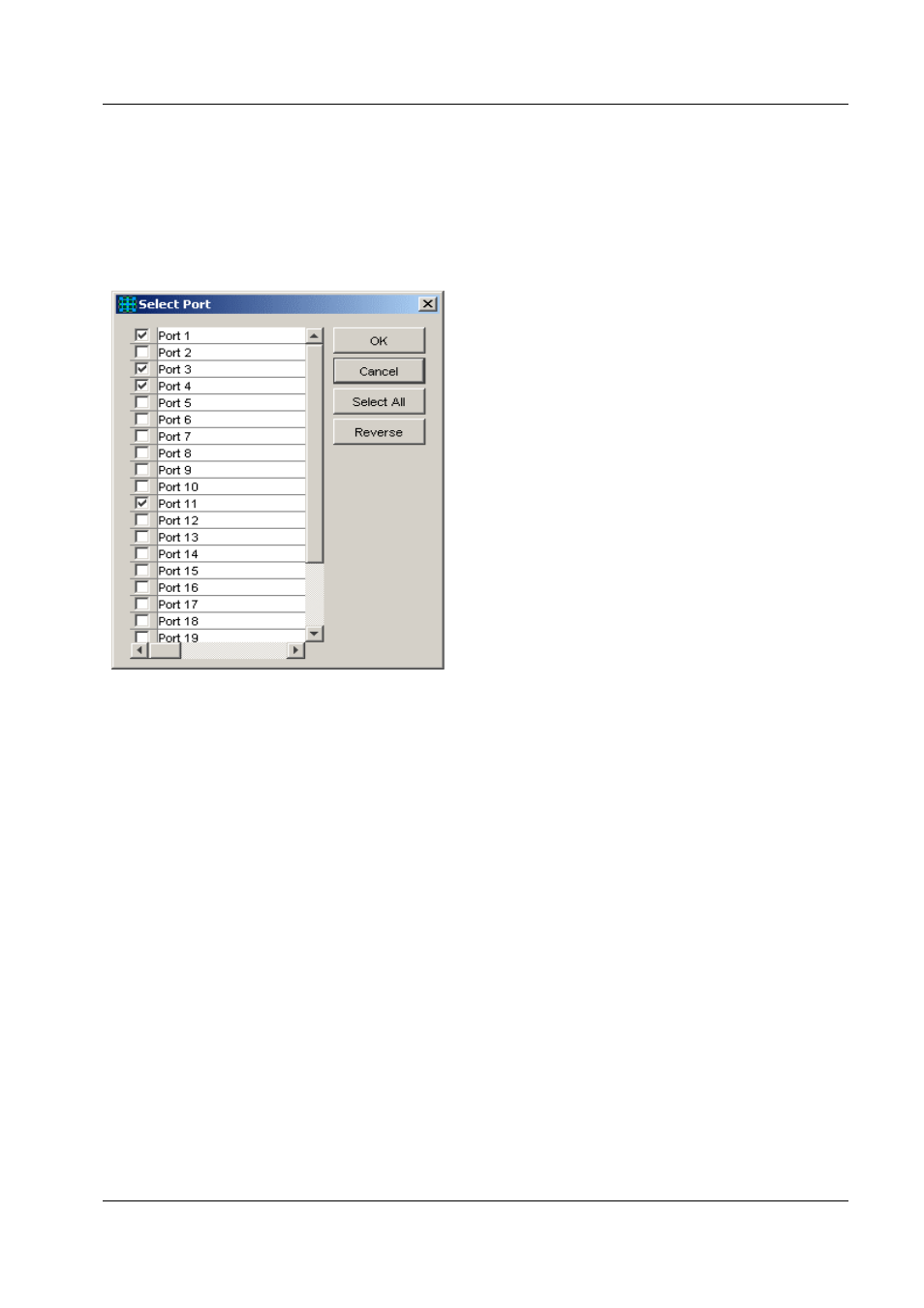

Select Port dialog box
Port status colors
Port status is shown by its color. Port speed is also displayed in the port image.
• Link Up: Green
• Disabled: Red (the port is disabled by an administrator)
• Partitioned/Blocking: Yellow
• Others: Default colour (usually black)
Note - SNMPv3: Depending on the READ VIEW access settings of the User Account Name
used, there is a possibility that AT-View Plus Device Manager may not be able to access some
MIB values that control the Port status. When this happens, the affected ports will be shown in
the default color.
LED status
In AT-View Plus Device Manager, LEDs do not blink. The meanings of LEDs differ between
devices.
