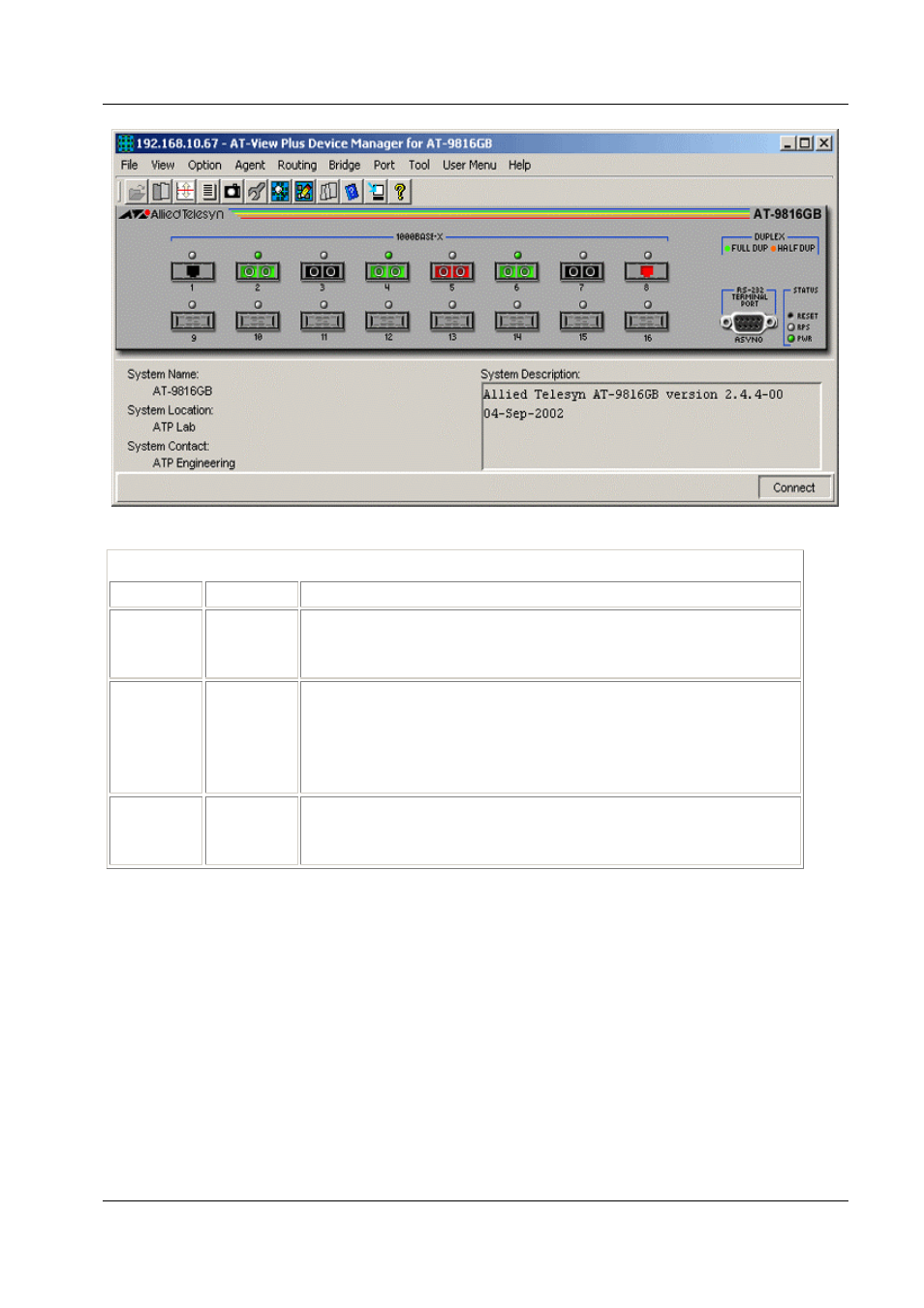

AT-9816GB
Device Manager LEDs for AT-9800 Series
LED State Description
PWR Green The switch is receiving power from the main power supply.
Red Main power supply is either off or has failed.
RPS Green
Red
The switch is receiving power from the redundant power supply.
RPS has failed.
Gray RPS is not installed or RPS monitoring is disabled.
DUPLEX Green The port is operating at full duplex.
Orange The port is operating at half duplex.
Note - AT-9812T, AT-9812TF and AT-9812T-DC share the same device image.
Note - AT-9816GB, AT-9816GF and AT-9816GB-DC share the same device image.
Note - To turn RPS monitoring on or off on the switch, from the switch command line interface
enter the command SET SYSTEM RPSMONITOR={ON|OFF}. To see whether RPS monitoring
is on, use the command SHOW SYSTEM. To turn on RPS monitoring using SNMP, set the
fanAndPsRpsMonitoringStatus variable to on.
Note - The current firmware version does not allow AT-View Plus Device Manager to support
the RPS LED on the DC models.
