Chapter 3: Overview of the AT-SBx31CFC960 Controller Fabric Card
64
Hardware Components
The components on the controller card are identified in Figure 31 and
briefly described in Table 17.

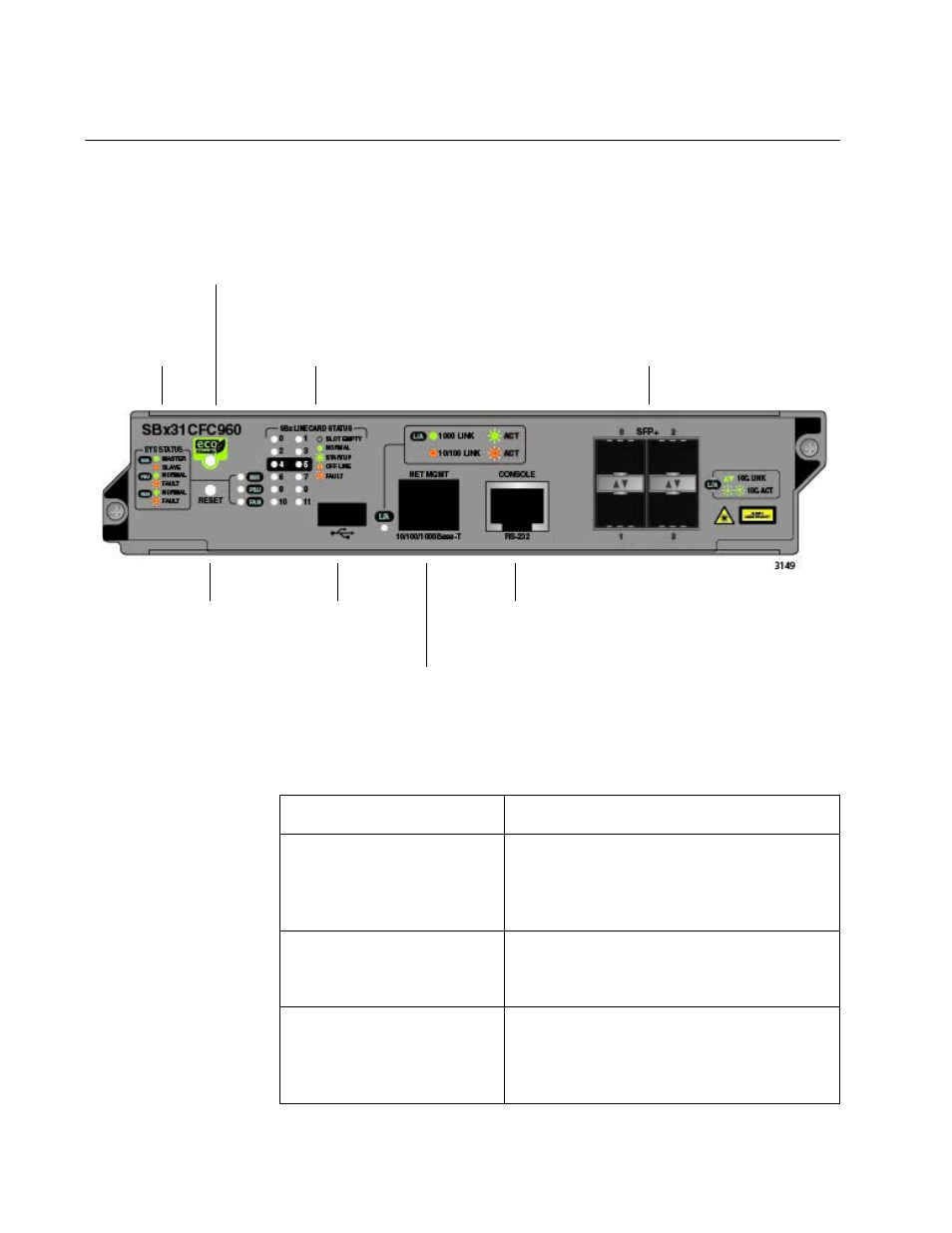

Figure 31. AT-SBx31CFC960 Controller Fabric Card
eco-friendly
Button
SYS Status
LEDs
SBx Linecard
Status LEDs
Four Slots for 1000Mbps SFP or
10Gbps SFP+ Transceivers
Reset
Button
USB Port
NET MGMT Port
Console RS-232
Port
Table 17. Components on the AT-SBx31CFC960 Controller Fabric Card
Component Description
SYS Status LEDs Displays general status information about
the controller card, power supplies, and
fan module. For more information, refer to
“SYS Status LEDs” on page 69.
eco-friendly Button Turns the LEDs on and off. For more
information, refer to “eco-friendly Button”
on page 70.
SBx Linecard Status LEDs Displays general information about the
controller and Ethernet line cards. For
more information, refer to “SBx Linecard
Status LEDs” on page 71.
