SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
147

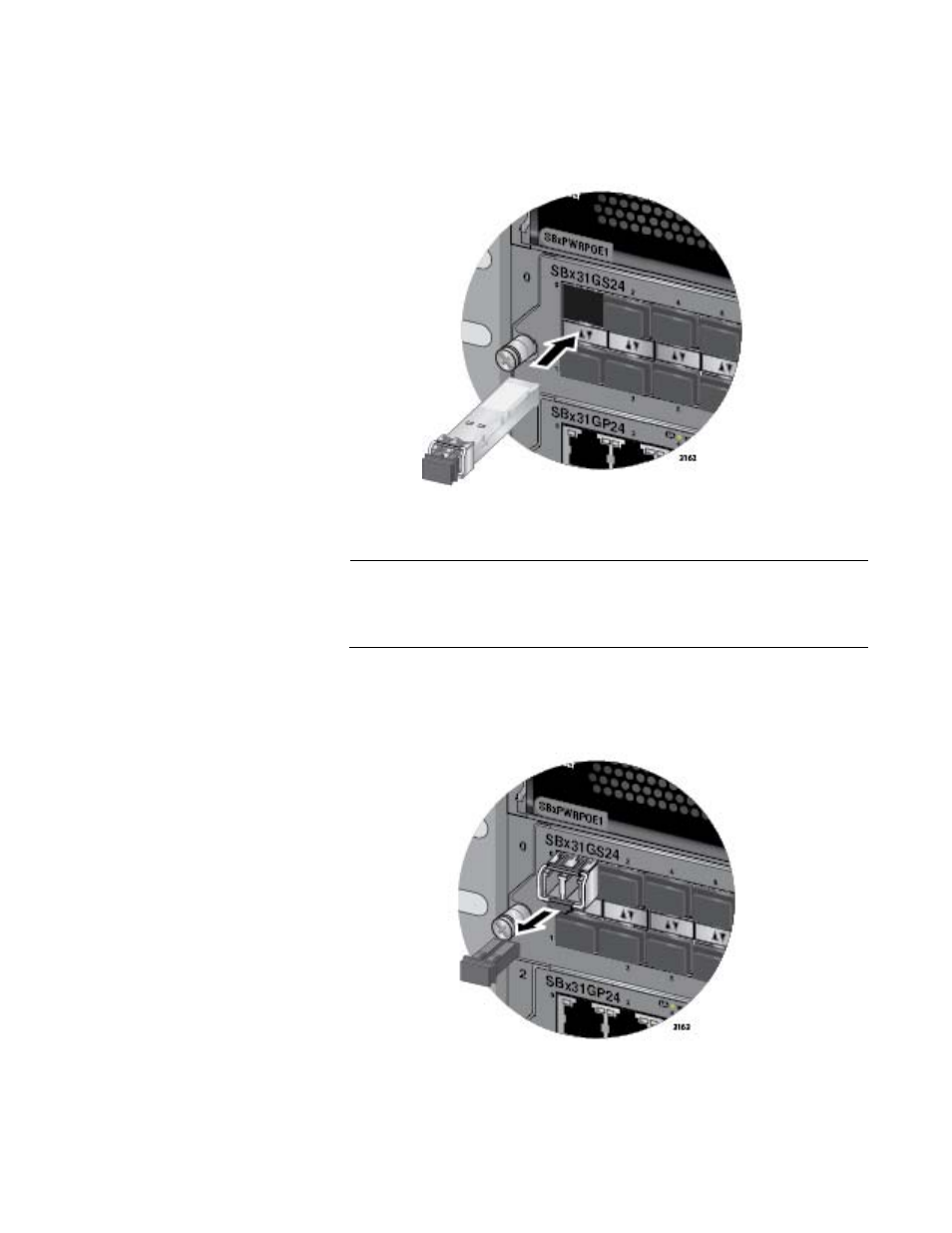

4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 88.
Figure 88. Inserting an SFP Transceiver in the AT-SBx31GS24 Line Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP transceivers in the line cards.
5. Remove the protective cover from the SFP transceiver, as shown in
Figure 89.
Figure 89. Removing the Dust Cover from the SFP Transceiver in the AT-
SBx31GS24 Line Card
