SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
255

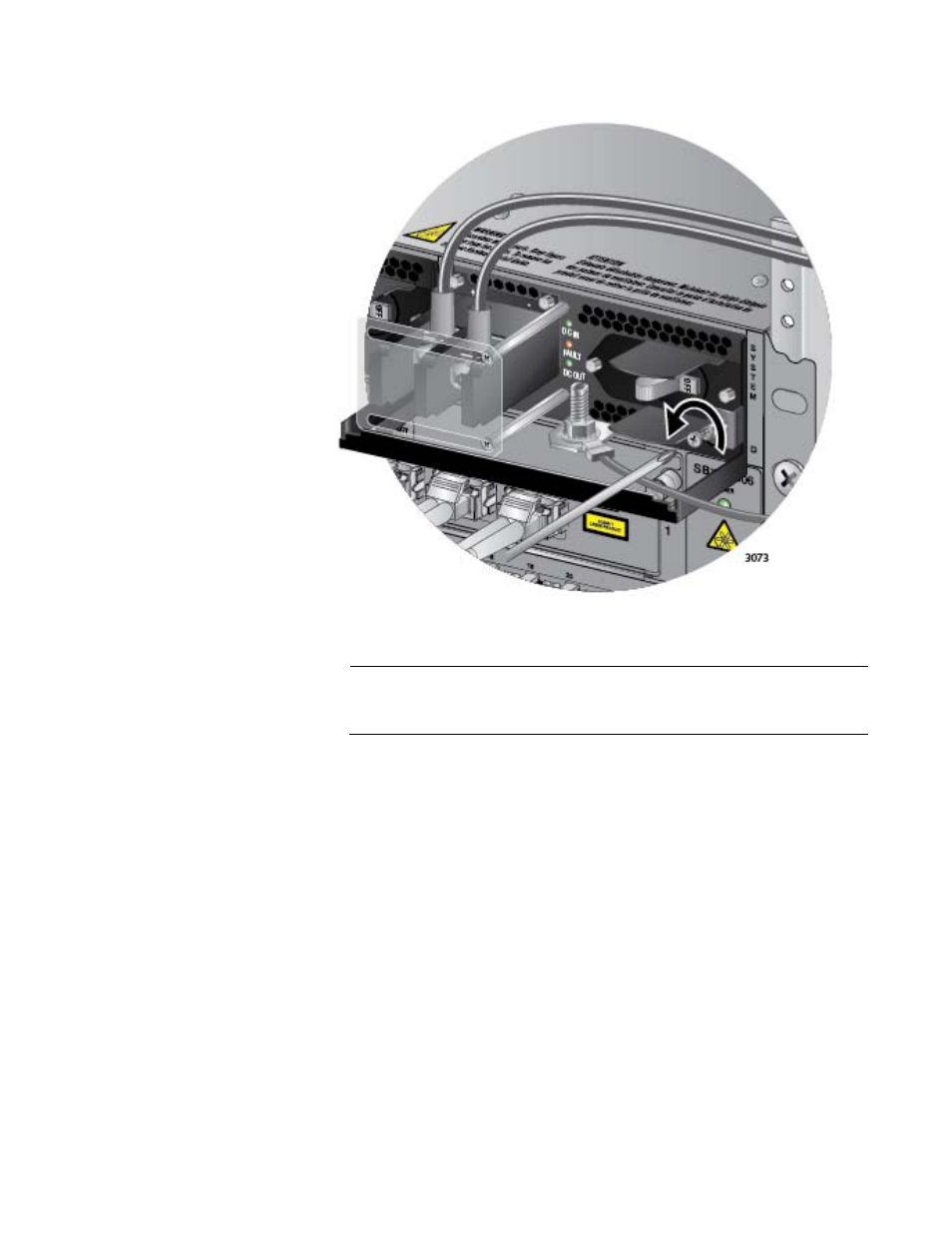

Figure 160. Loosening the Screw on the Locking Handle
Note
If the power wires are connected to the terminal block with the right
angle terminals, go to step 5.
4. Use a #1 screwdriver to loosen the two screws that secure the plastic
cover over the terminal block and slide the cover to the right. You may
need to slightly lift the locking handle to access the bottom screw.
Refer to Figure 161 on page 256.
The plastic cover may not be present if the lead wires are connected to
the terminal block with the right angle terminals. If this is the case, you
may skip this step.
