Chapter 7: Installing the AT-SBx31CFC960 Card and Ethernet Line Cards
130
4. Remove the battery insulator tab on the controller card by sliding it out
from between the battery and battery clip, as shown in Figure 73.

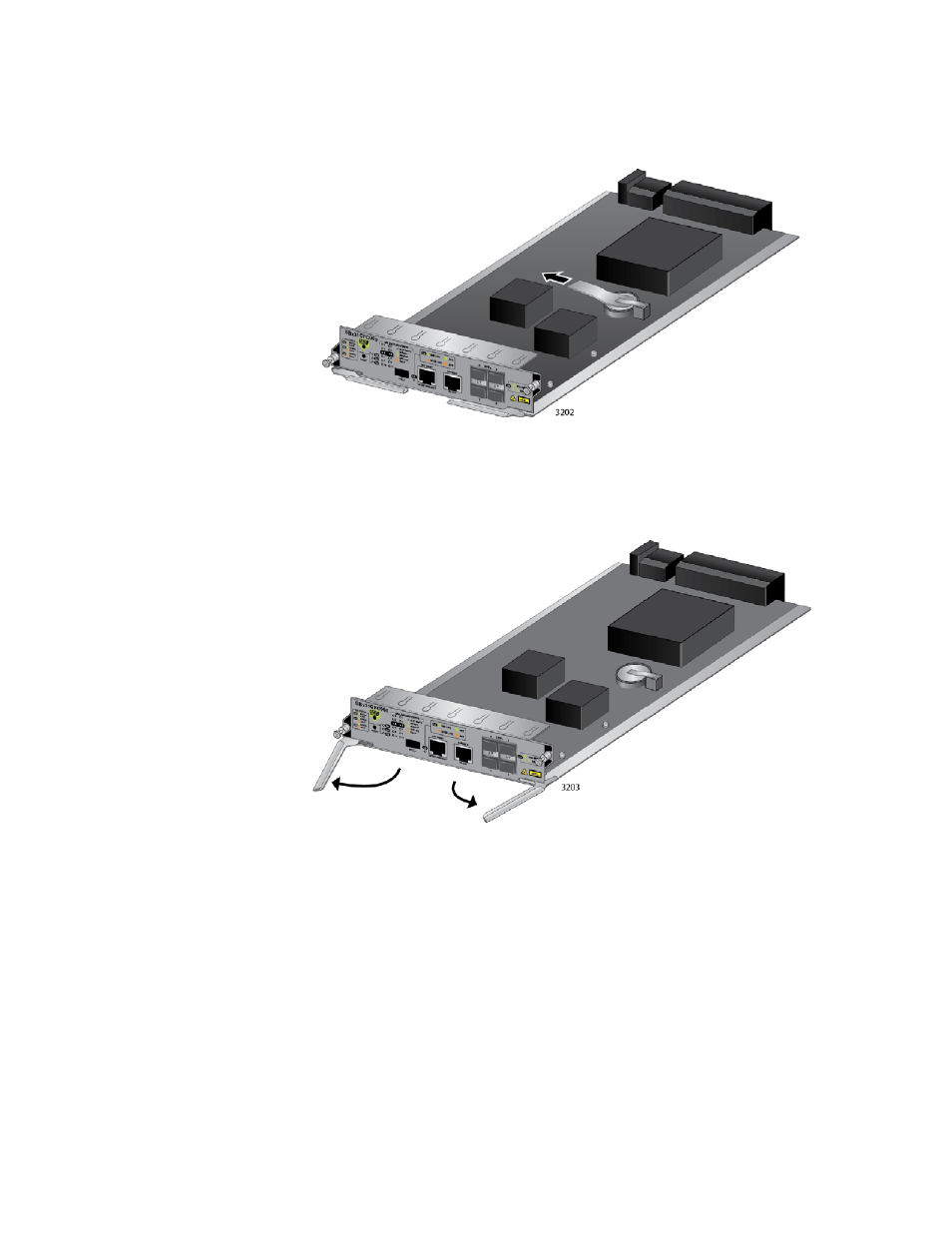

Figure 73. Removing the Battery Insulator
5. Move the locking handles on the front panel to the open position, as
shown in Figure 74.
Figure 74. Opening the Locking Handles on the AT-SBx31CFC960
Controller Fabric Card
6. Align the edges of the AT-SBx31CFC960 Management Fabric Card
with the internal chassis card guides in slot 4 or 5 of the AT-SBx3106
Chassis. Figure 75 on page 131 shows the AT-SBx31CFC960 Card
aligned in slot 4.
