Chapter 5: Installing the Chassis on a Table or in an Equipment Rack
104
3. Insert one end of the grounding wire into the grounding lug, as shown
in Figure 47, and use a crimping tool to secure the wire to the
grounding lug.

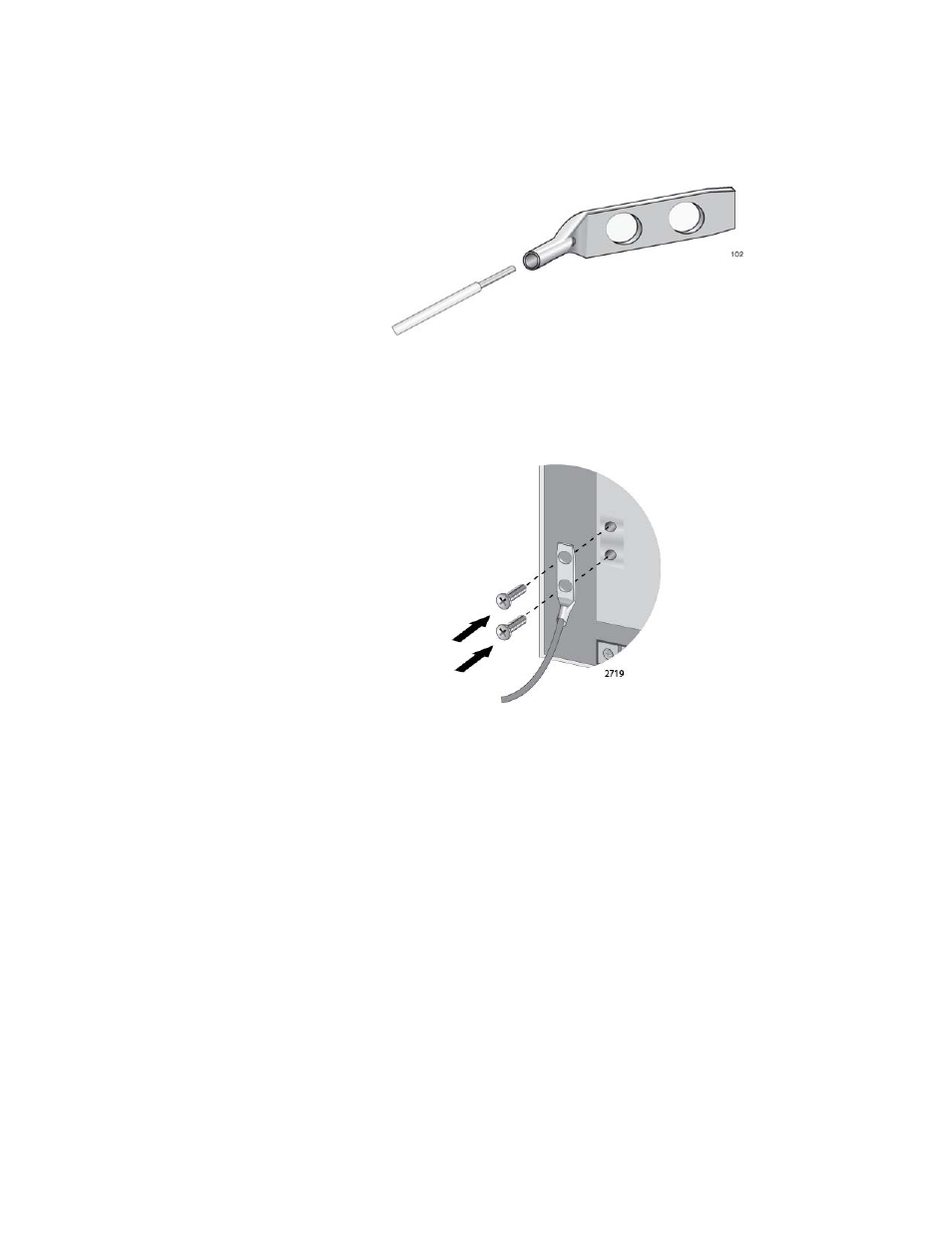

Figure 47. Attaching the Grounding Wire to the Grounding Lug
4. Install the grounding lug on the chassis, as shown in Figure 48. Allied
Telesis recommends tightening the screws to 20 inch-lbs.
Figure 48. Installing the Grounding Lug and Wire
5. Connect the other end of the grounding wire to the building protective
earth.
6. Go to Chapter 6, “Installing the Power Supplies” on page 105.
