Figure 95: attaching a fiber optic cable – Allied Telesis AT-SBx31CFC960 User Manual
Page 152
Chapter 8: Installing the Transceivers and Cabling the Ports
152

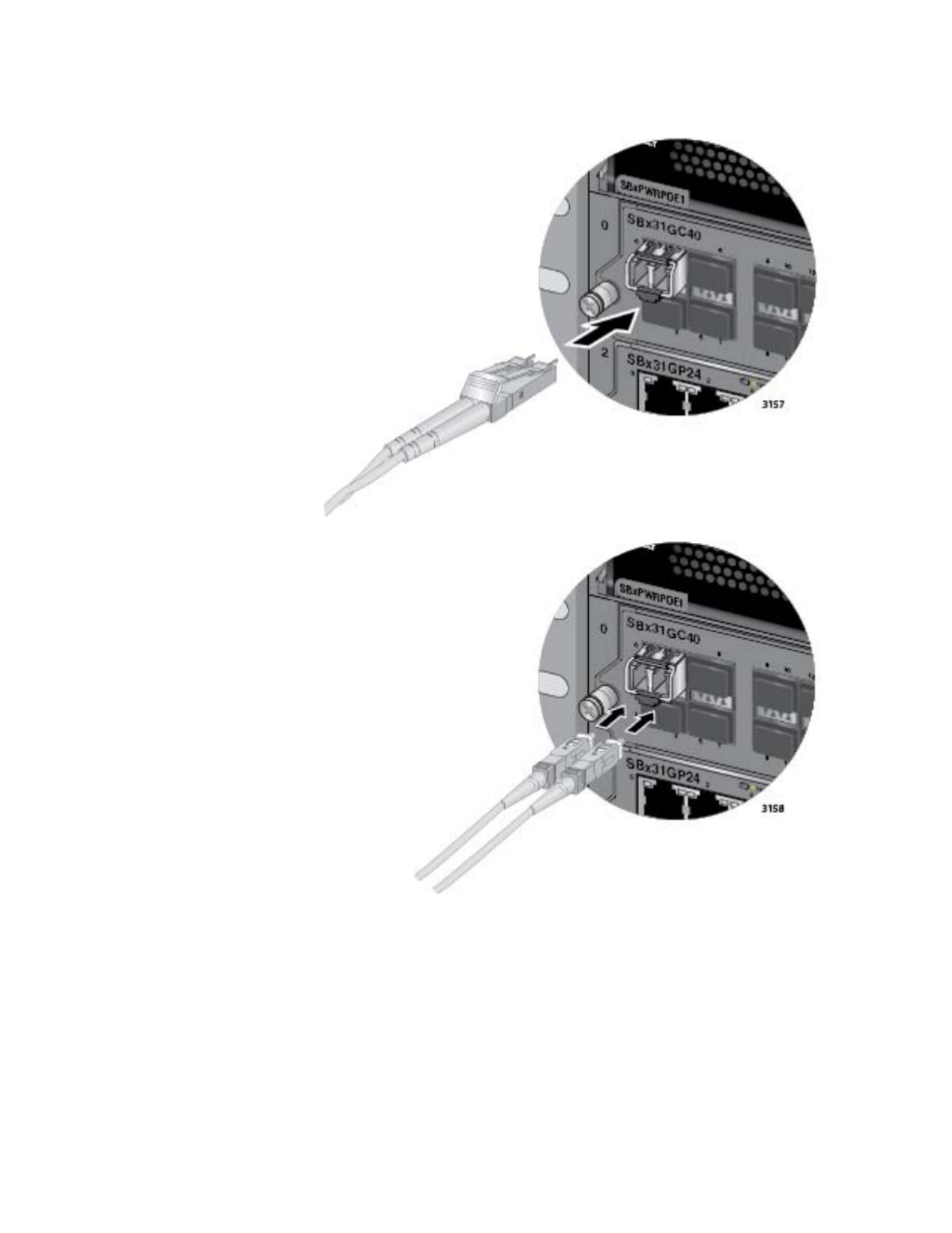

Figure 95. Attaching a Fiber Optic Cable
7. Repeat this procedure to install additional SFP and CSFP
transceivers.
After installing and cabling the SFP and CSFP transceivers, do one of the
following:
To install and cable additional transceivers, go to the appropriate
section in this chapter for instructions.
SFP Transceiver
CSFP Transceiver
