Allied Telesis AT-SBx31CFC960 User Manual
Page 162
Chapter 8: Installing the Transceivers and Cabling the Ports
162

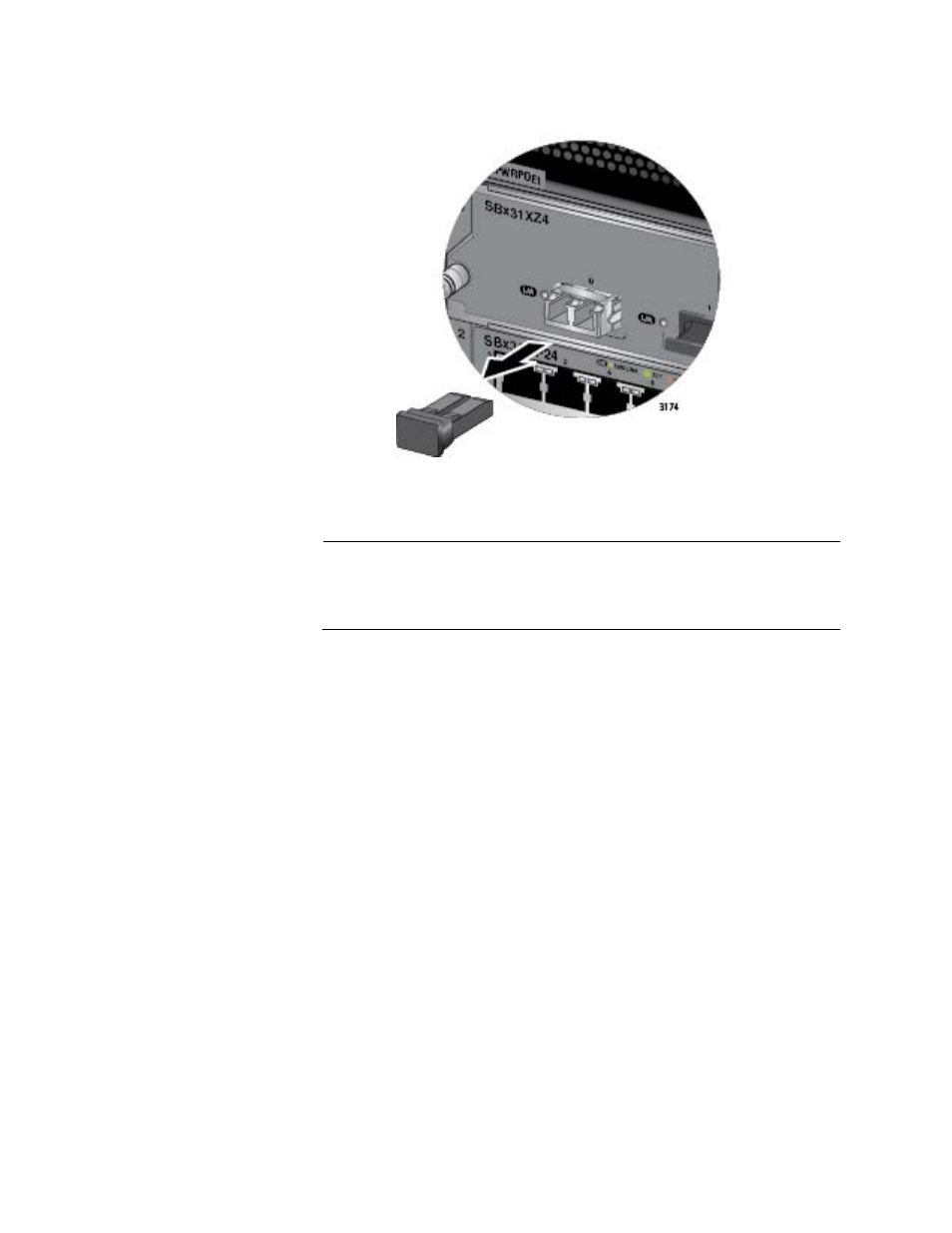

Figure 106. Removing the Protective Cover from an XFP Transceiver in
the AT-SBx31XZ4 Line Card
Note
The dust cover protects the fiber optic port on the XFP transceiver
from dust contamination and should not be removed until you are
ready to connect the fiber optic cable.
6. Connect the fiber optic cable to the port on the transceiver, as shown
in Figure 107 on page 163. The connector should snap into the port.
