Allied Telesis AT-SBx31CFC960 User Manual
Page 256
Chapter 13: Replacing Modules
256

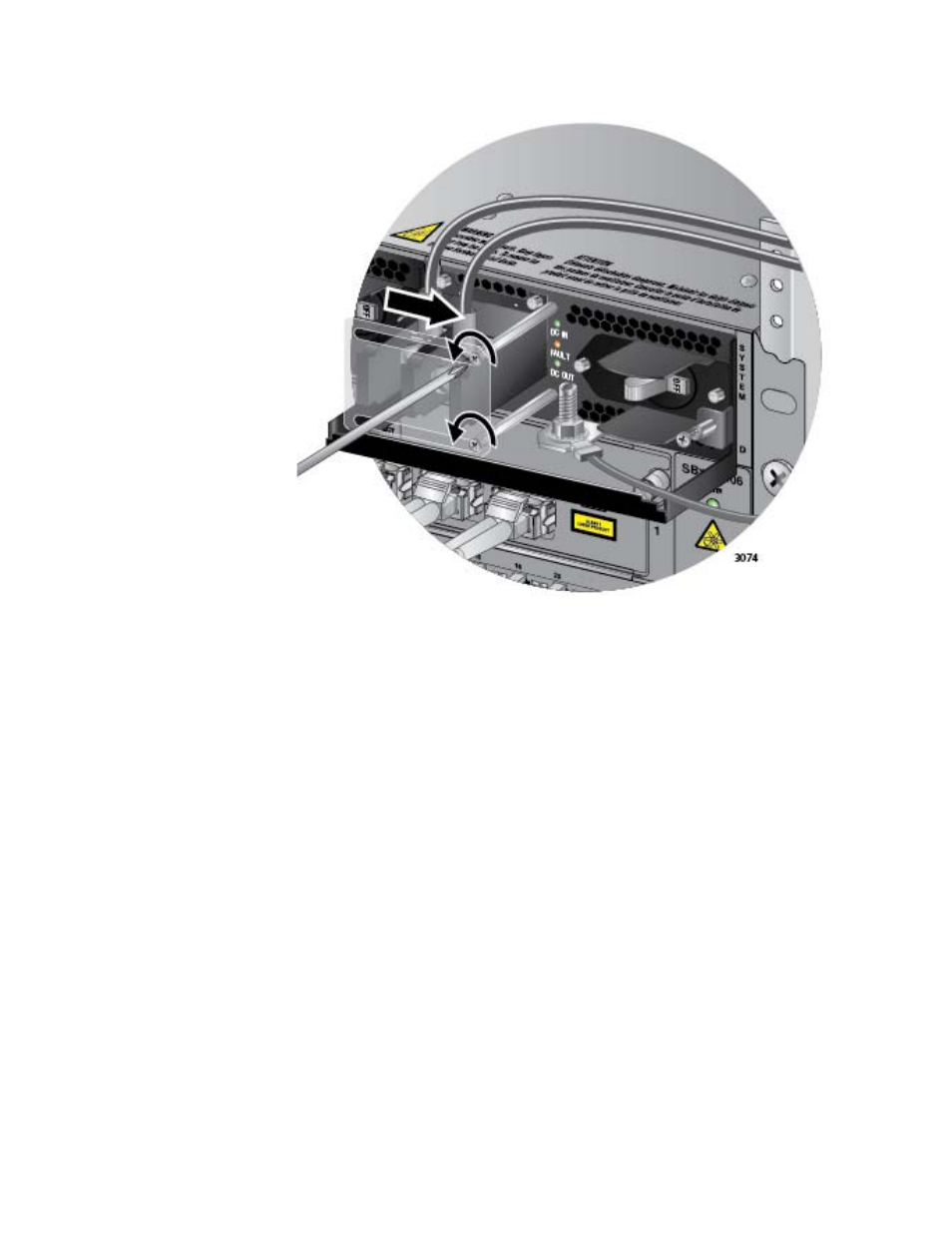

Figure 161. Opening the Plastic Window on the Terminal Block
5. Use a #3 screwdriver to remove the negative (-) lead wire from the
terminal block. The negative lead wire is on the right. Refer to Figure
162 on page 257.
