L name, shown in figure 53 on – Allied Telesis AT-SBx31CFC960 User Manual
Page 110
Chapter 6: Installing the Power Supplies
110

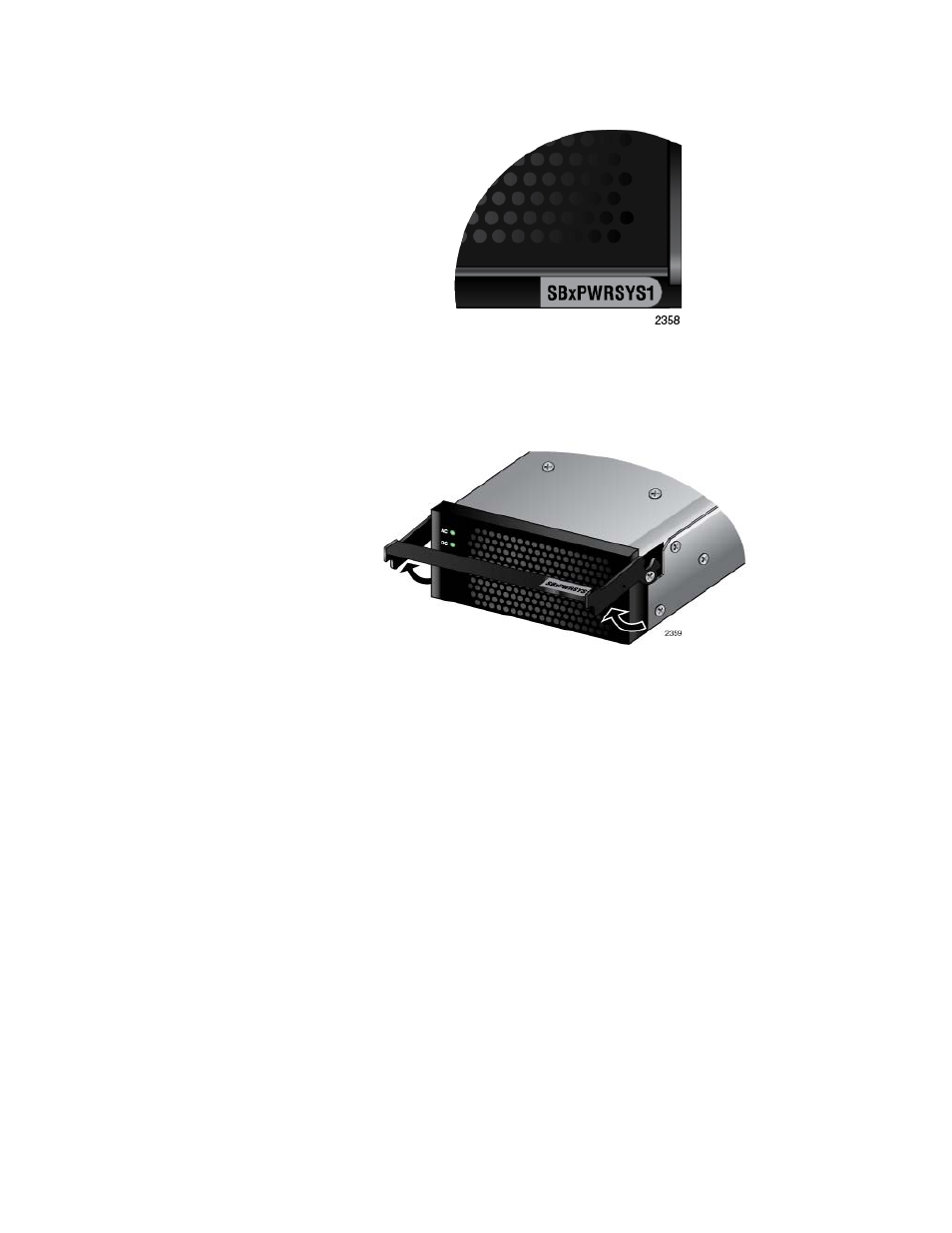

Figure 53. Verifying the AT-SBxPWRSYS1 AC Power Supply
5. Move the locking handle on the AT-SBxPWRSYS1 AC Power Supply
to the unlocked or up position. See Figure 54.
Figure 54. Raising the Handle on the AT-SBxPWRSYS1 AC Power
Supply
6. Align and insert the AT-SBxPWRSYS1 AC Power Supply into the
power supply slot. Figure 55 on page 111 shows the power supply
being installed in slot D.
