SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
155
2. Orient the SFP+ transceiver with the handle on top, as shown in
Figure 97.

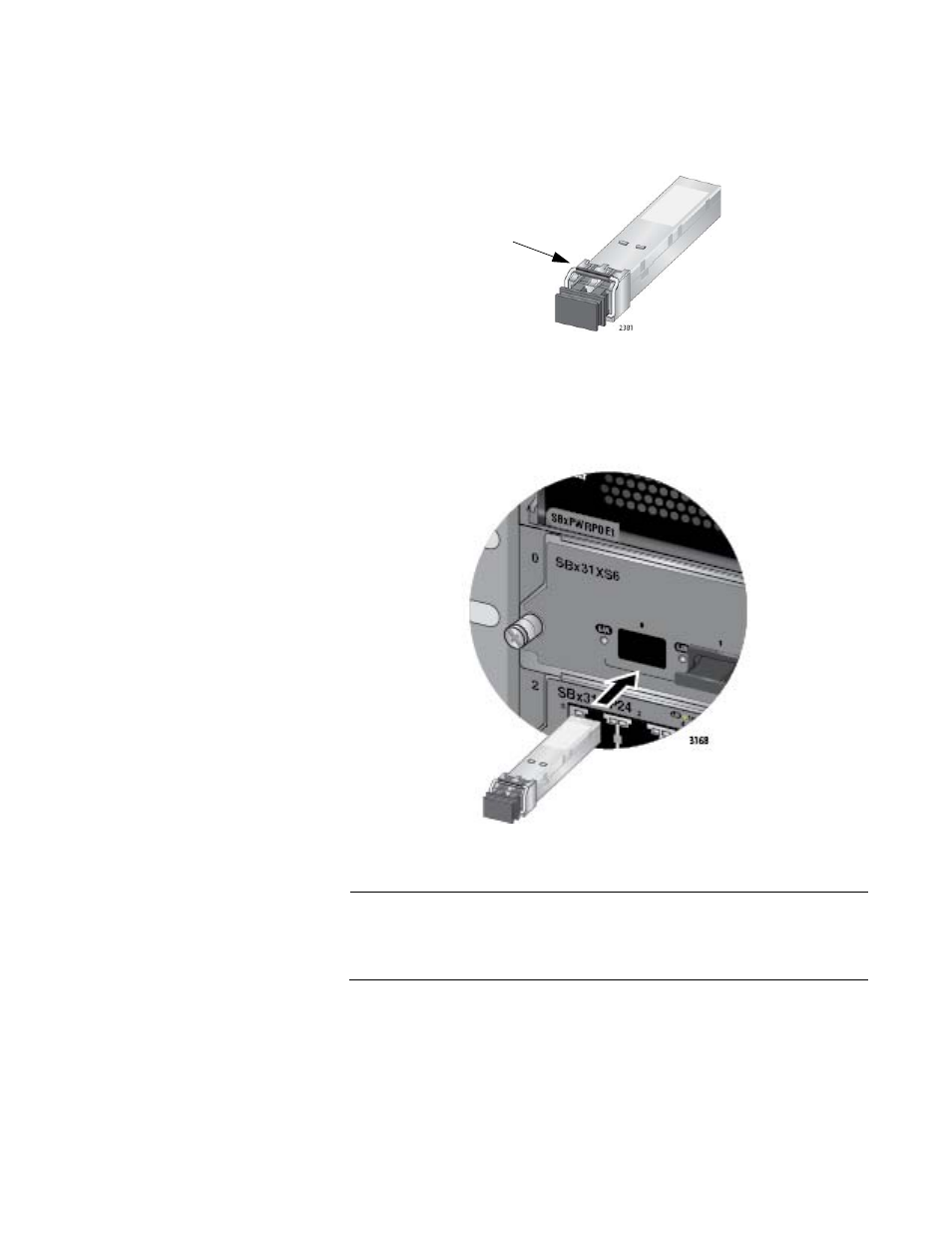

Figure 97. Handle on SFP+ Transceiver
3. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 98.
Figure 98. Installing an SFP+ Transceiver in the AT-SBx31XS6 Line Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 3 to install
the remaining SFP transceivers in the line cards.
4. Remove the protective cover from the SFP transceiver, as shown in
Figure 99 on page 156.
Handle
