SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
159

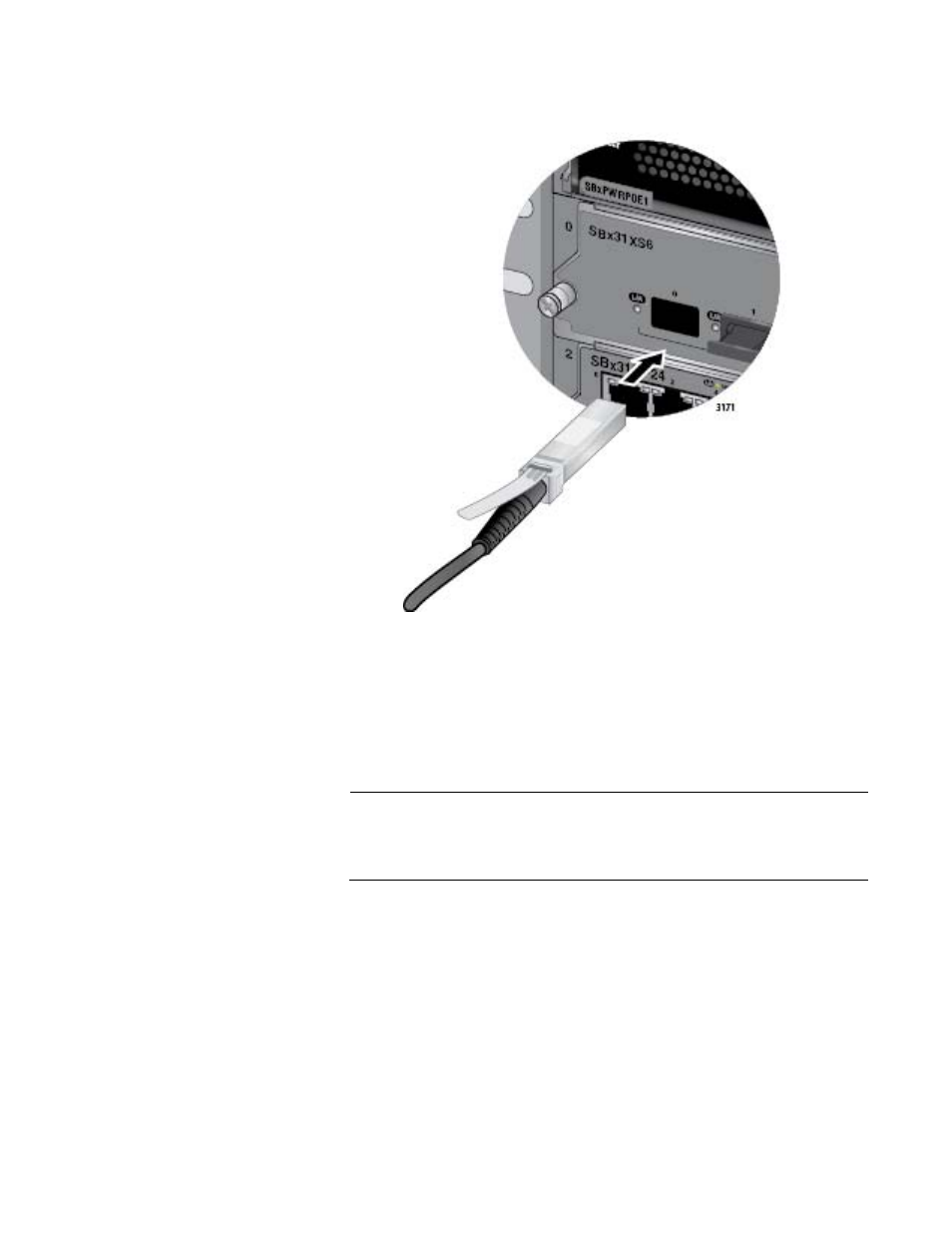

Figure 102. Installing the AT-SP10TW Cable in the AT-SBx31XS6 Line
Card
4. Install the other end of the cable into an SFP+ slot on another network
device.
5. Repeat this procedure to install additional AT-SP10TW Cables.
Note
To remove the connector and cable from the SFP+ slot, gently push
on the connector, pull on the release tab, and then slide the
connector from the slot.
After installing the AT-SP10TW Cables in the AT-SBx31XS6 Line Card, do
one of the following:
 To install and cable additional transceivers, go to the appropriate
section in this chapter for instructions.
 After cabling all the ports in the chassis, go to Chapter 9,
“Powering On the Chassis” on page 171.
