SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
193
Connecting the
DC Power Wires
with the Right
Angle Terminals
To connect the DC power wires to the positive and negative terminals on
the power supply with the right angle terminals, perform the following
procedure:
1. Prepare adequate lengths of two stranded 8 AWG power wires by
stripping them as shown in Figure 138.
Warning
Do not strip more than the recommended amount of wire. Stripping
more than the recommended amount can create a safety hazard by
leaving exposed wire on the terminal block after installation.
 E10

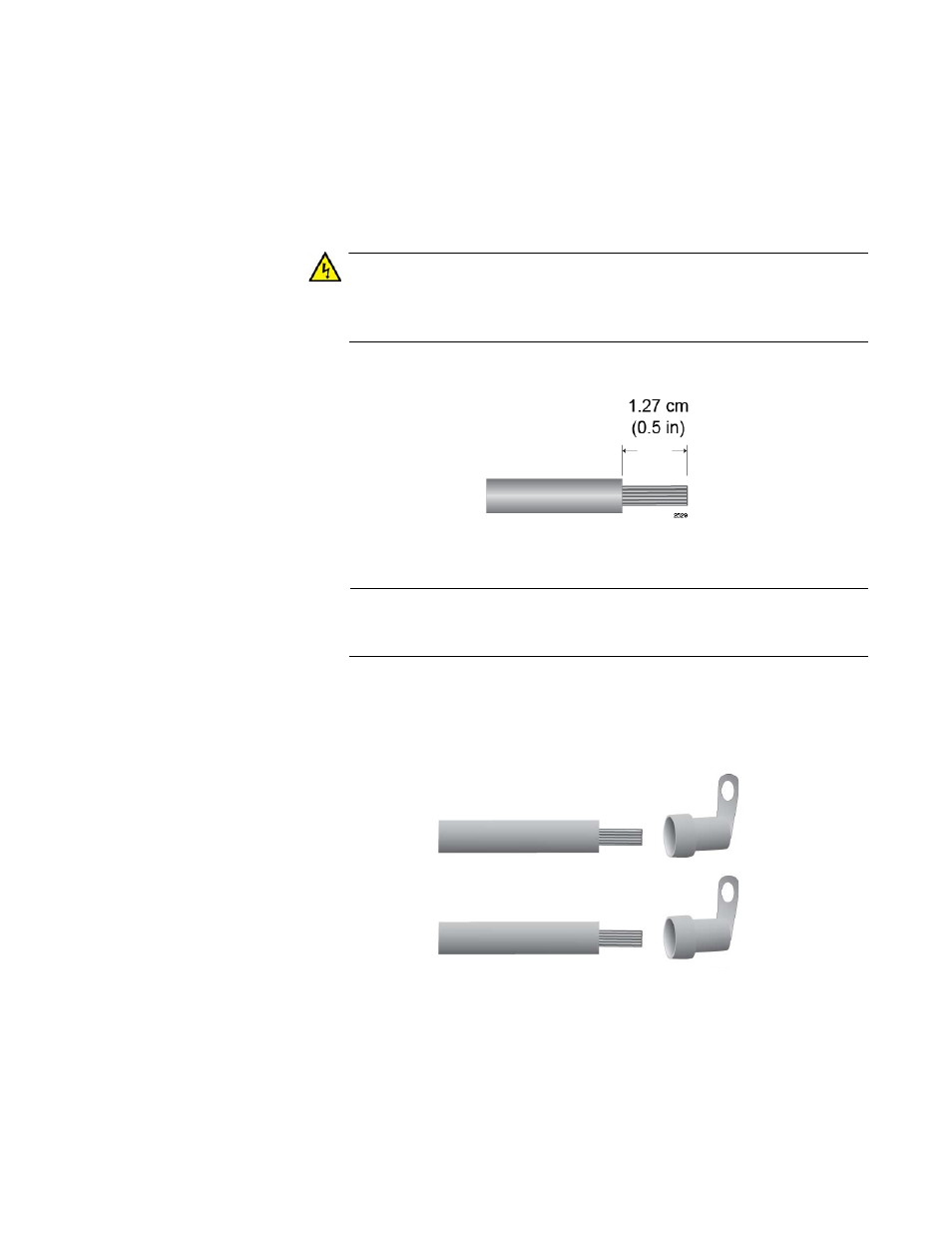

Figure 138. Stripping the Power Wires
Note
You must use stranded wires with the terminal lugs. You may not
use solid wires.
2. Insert the power wires into the right angle terminals included with the
power supply and use a crimping tool to secure the wires to the
terminals. See Figure 139,
Figure 139. Attaching the Power Wires to the Right Angle Terminals
3. Verify that the On/Off switch on the AT-SBxPWRSYS1 DC Power
Supply is in the Off position. Refer to Figure 131 on page 187.
