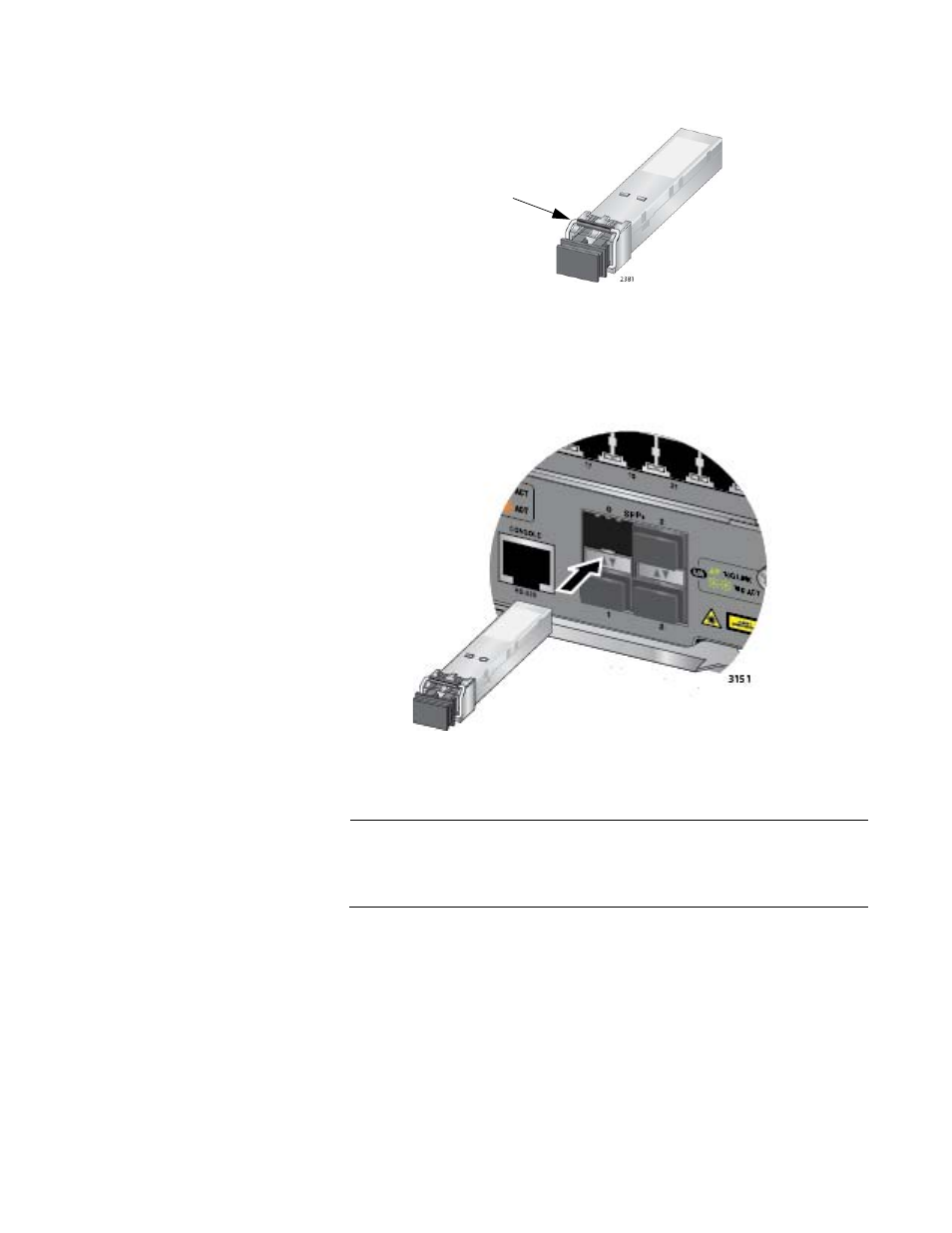

Figure 109. Handle on an SFP or SFP+ Transceiver
3. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 110.
Figure 110. Installing an SFP or SFP+ Transceiver in the AT-
SBx31CFC960 Controller Fabric Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 3 to install
the remaining transceivers in the controller card.
4. Remove the protective cover from the transceiver, as shown in Figure
111 on page 168.
Handle
