SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
123

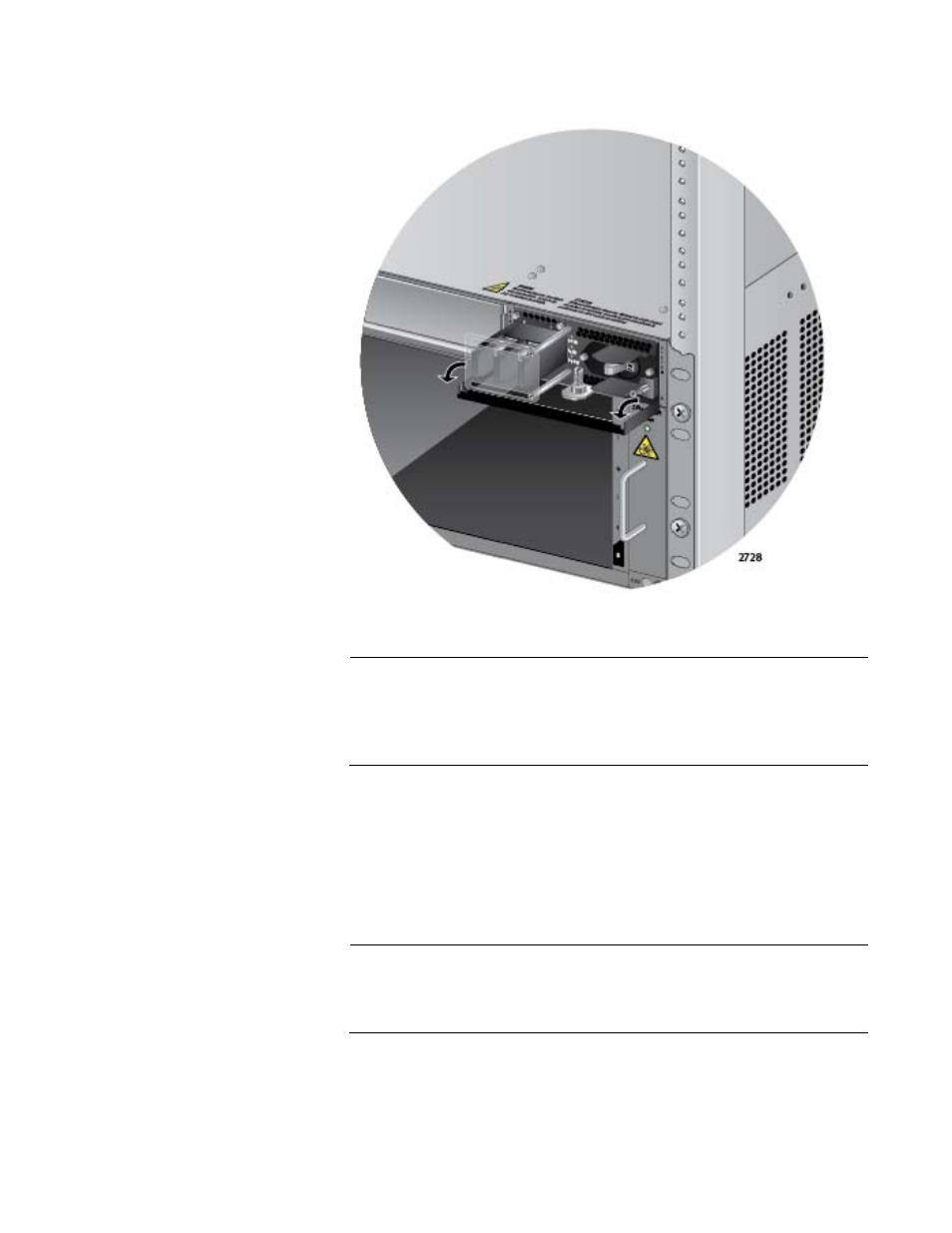

Figure 68. Locking the Handle on the AT-SBxPWRSYS1 Power Supply
Note
Do not tighten the handle locking screw yet. You may need to
slightly lift the handle to move the plastic guard panel when you wire
the positive and negative wires in “Powering On the AT-
SBxPWRSYS1 DC System Power Supply” on page 179.
8. To install a second AT-SBxPWRSYS1 DC Power Supply, repeat this
procedure.
9. After installing the AT-SBxPWRSYS1 DC Power Supplies, go to
Chapter 7, “Installing the AT-SBx31CFC960 Card and Ethernet Line
Cards” on page 125.
Note
Retain the five wire ring lugs that come with the power supply. You
use them to wire the power supply in “Powering On the AT-
SBxPWRSYS1 DC System Power Supply” on page 179.
