Allied Telesis AT-SBx31CFC960 User Manual
Page 135
SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
135

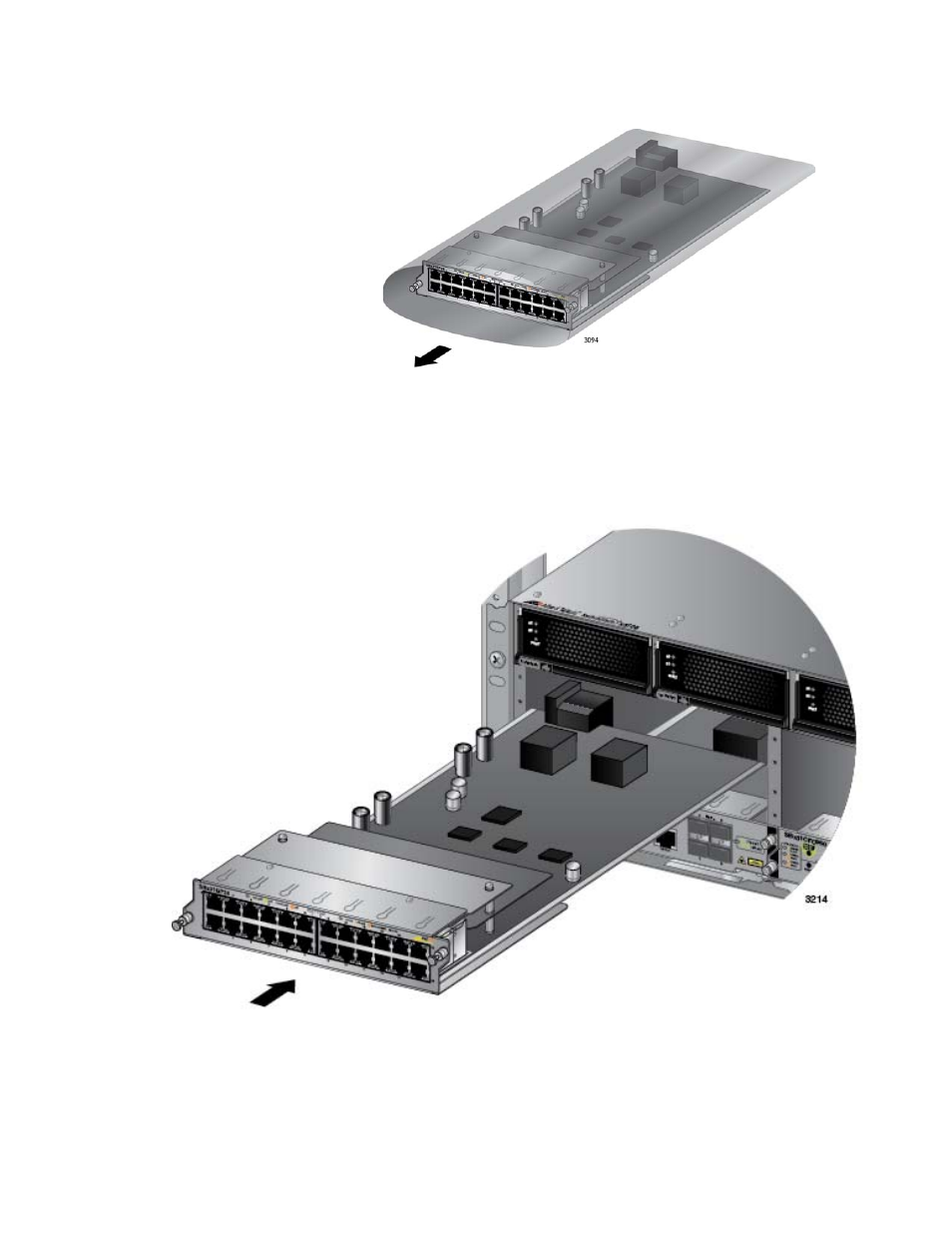

Figure 78. Removing an Ethernet Line Card from an Anti-static Bag
4. Align the line card with the internal chassis card guides in the selected
slot of the AT-SBx3106 Chassis.
Figure 79 shows an Ethernet line card aligned in slot 0.
Figure 79. Aligning an Ethernet Line Card in a Chassis Slot
