AT-SBx31GS24 SFP Line Card
The AT-SBx31GS24 SFP Line Card, shown in Figure 19, is a Gigabit
Ethernet switch.

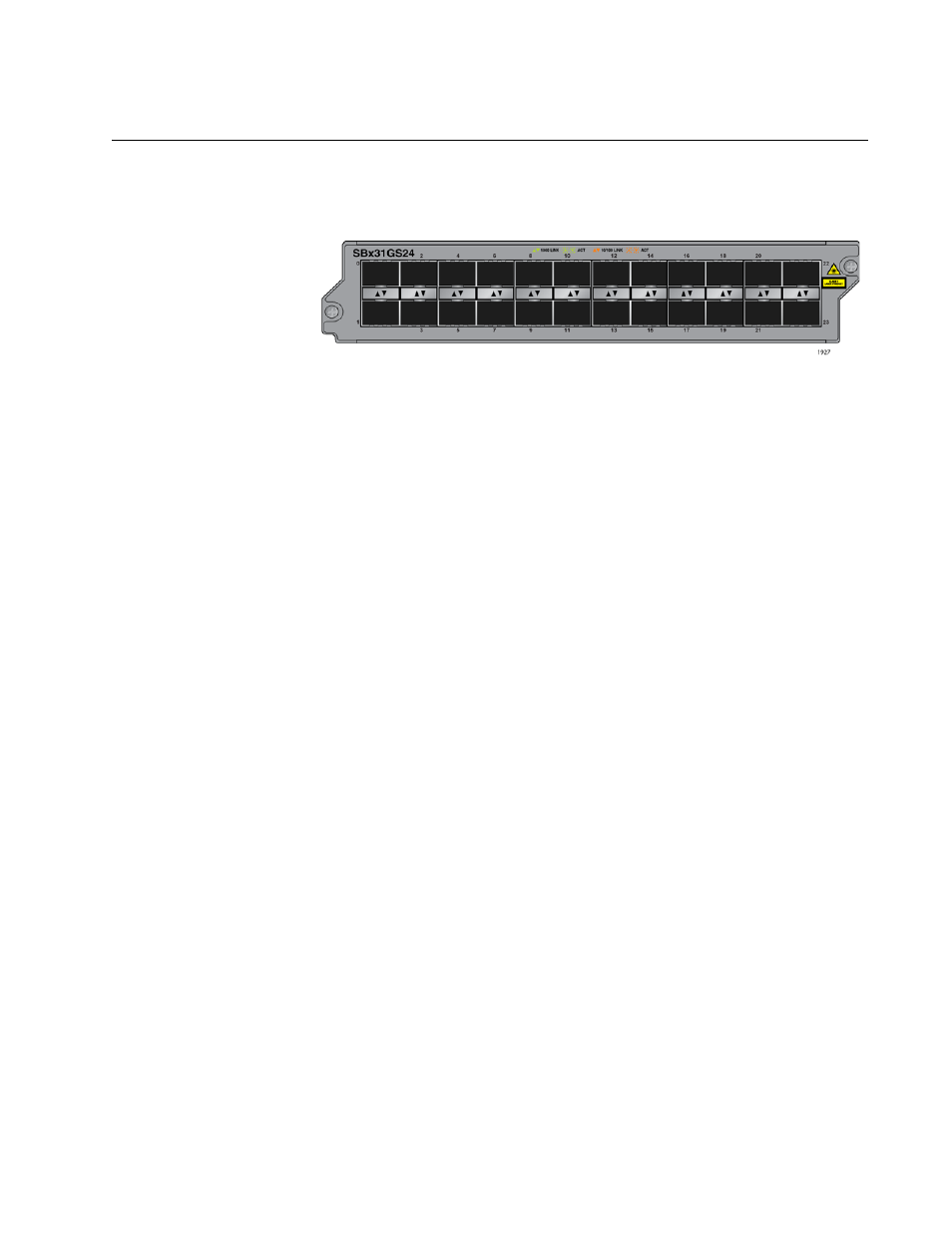

Figure 19. AT-SBx31GS24 SFP Line Card
Here are the main features of the line card:
 24 slots for small form-factor pluggable (SFP) transceivers
 Supports 100Base-FX or 1000Base-SX/LX fiber optic transceivers
 Supports 100Base-BX or 1000Base-LX bidirectional (BiDi) fiber
optic transceivers
 Supports 10/100/1000Base-T or 1000Base-T twisted pair
transceivers
 Port Link/Activity (L/A) LEDs
 32K entry MAC address table
 16 Mb buffer memory
 Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
 Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC960 Controller Fabric Cards.
 Hot swappable
Contact your Allied Telesis sales representative for a list of supported
transceivers.
LEDs The SFP slots on the AT-SBx31GS24 SFP Line Card have one LED each,
as shown in Figure 20 on page 44 and described in Table 9 on page 44.
