Allied Telesis AT-SBx31CFC960 User Manual
Page 23
SwitchBlade x3106 Chassis Switch and AT-SBx31CFC960 Card Installation Guide
23

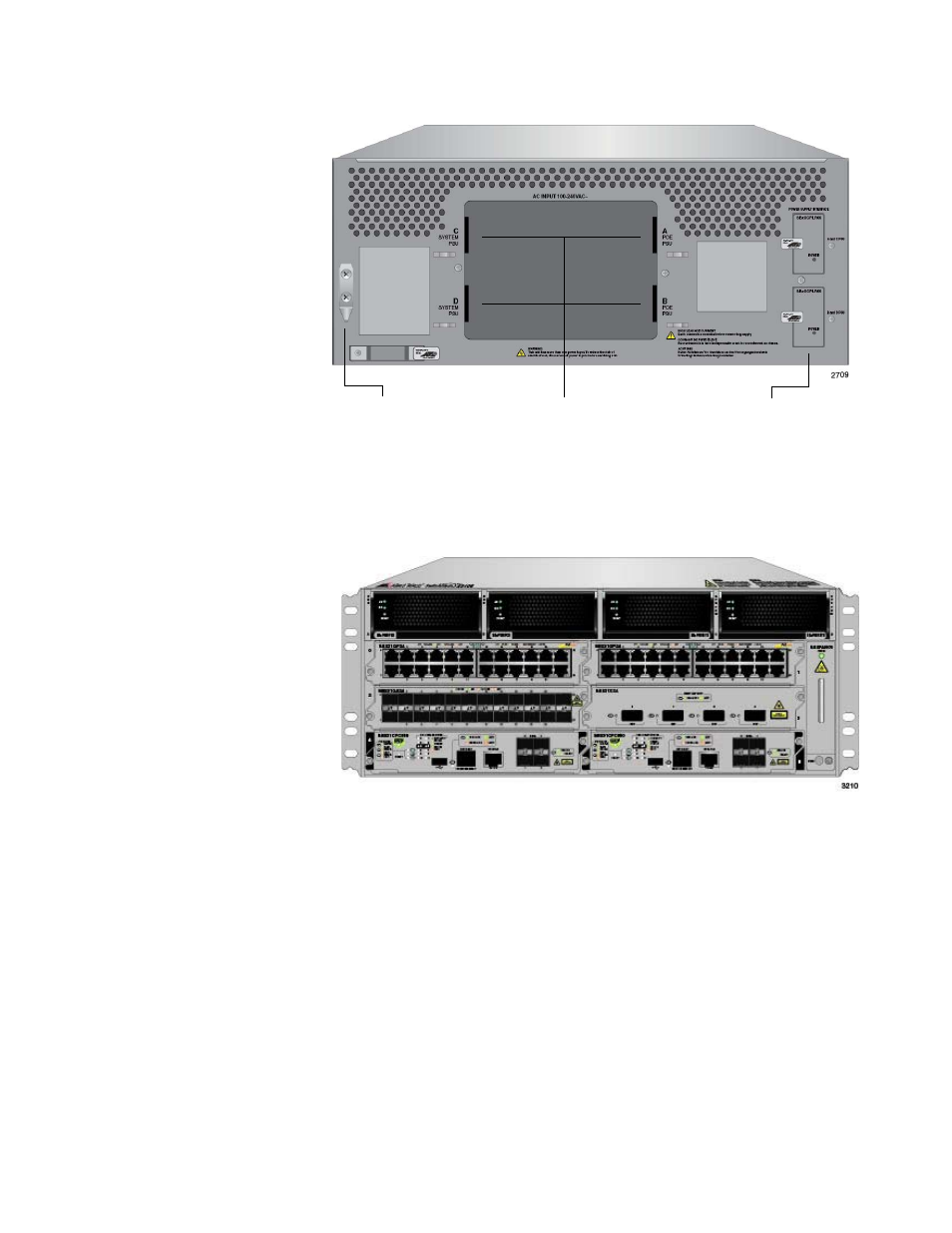

Figure 5. Rear View of the AT-SBx3106 Chassis
Figure 6 is an example of a fully populated chassis.
Figure 6. AT-SBx3106 Chassis with Line Cards, Controller Cards, and
Power Supplies
Grounding
Lug
AC Power
Cord Sockets
Power Supply
Interfaces
(Opto-couplers)
